Product Description

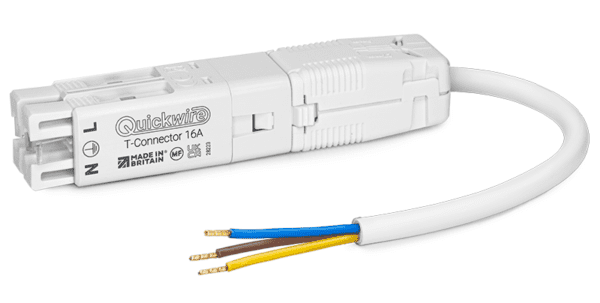

The Quickwire QTPS_375_PVC_30 T-Connector Prewired Plug & Socket is a practical, ready-to-install connection solution designed to speed up site wiring and deliver consistent results. Supplied factory prewired with a 3-core 0.75mm² PVC flexible cable in a longer 30cm length, it is ideal where extra reach is needed between connection points.

Each prewired plug includes factory-fitted ferruled connections on the trailing end for a secure, professional termination. The T-Connector range is available in 2-core or 3-core variants, with 15cm or 30cm cable lengths, and bespoke lengths available on request.

Designed and manufactured in Great Britain, this Quickwire T-Connector system supports efficient installation while maintaining dependable electrical performance.

Features & Benefits

• Prewired T-Connector plug and socket for rapid installation
• 3-core 0.75mm² PVC flexible cable
• 30cm cable length for added flexibility on site
• Factory ferruled connections on trailing end
• Available in 15cm or 30cm lengths (2-core and 3-core options)
• Bespoke cable lengths available on request
• Designed and manufactured in Great Britain

Technical Specification

Plug Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 1 x flexible (Class 5/6) or 1 x rigid (Class 1) conductors
• Conductor Size: 0.5mm² – 1.5mm²
• Termination: Screw terminals
• Cord Grip Size: Max. 8.0mmØ / Min. 4.0mmØ
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP20 (when plugged in)

Socket Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC (6242Y or 6242B), solid cores (Class 1)
• Termination: Utilises rapid Quickwire push-fit technology
• Cord Grip: Fully automatic
• Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC), solid cores (Class 1)
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP30

Documentation

Data Sheet for Quickwire T-Connector Plug & Socket
