Product Description

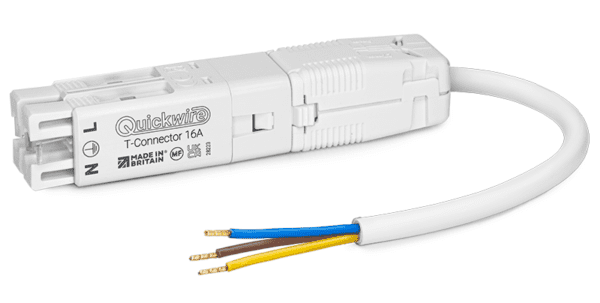

The Quickwire QTPS_375_LS0H_50 T-Connector Prewired Plug & Socket is a professional, ready-to-install wiring solution supplied with 3-core 0.75mm² LS0H flexible cable in an extended 50cm length. It is an excellent choice for installations requiring low smoke zero halogen cabling and extra reach between connection points.

Each prewired plug includes factory-fitted ferruled connections on the trailing end, delivering a secure, consistent termination and helping to reduce time on site. Standard lengths are available in 15cm and 30cm, with bespoke lengths available on request, including this 50cm option.

Designed and manufactured in Great Britain, the Quickwire T-Connector system supports dependable performance and efficient installation across a wide range of lighting and electrical applications.

Features & Benefits

• Prewired T-Connector plug and socket for faster installation
• 3-core 0.75mm² LS0H flexible cable
• 50cm cable length for extended reach
• Factory ferruled connections on trailing end
• Standard lengths available (15cm and 30cm), plus bespoke options
• Bespoke cable lengths available on request
• Designed and manufactured in Great Britain

Technical Specification

Plug Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 1 x flexible (Class 5/6) or 1 x rigid (Class 1) conductors
• Conductor Size: 0.5mm² – 1.5mm²
• Termination: Screw terminals
• Cord Grip Size: Max. 8.0mmØ / Min. 4.0mmØ
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP20 (when plugged in)

Socket Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC (6242B), solid cores (Class 1)
• Termination: Utilises rapid Quickwire push-fit technology
• Cord Grip: Fully automatic
• Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC), solid cores (Class 1)
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP30

Documentation

Data Sheet for Quickwire T-Connector Plug & Socket
