Product Description

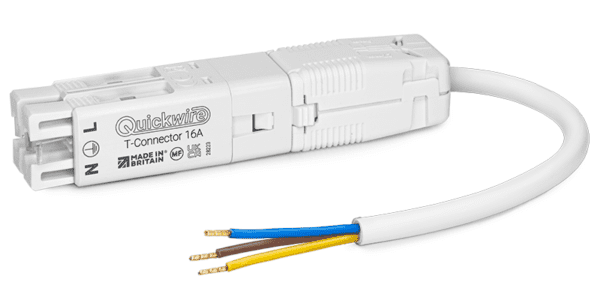

The Quickwire QTPS_375_LS0H_30 T-Connector Prewired Plug & Socket is a professional, ready-to-install connection solution supplied with 3-core 0.75mm² LS0H flexible cable in a practical 30cm length. It is ideal for electrical and lighting installations where low smoke zero halogen cabling is required and additional cable reach is beneficial.

Each prewired plug is finished with factory-fitted ferruled connections on the trailing end, ensuring a secure and consistent termination while reducing installation time. The Quickwire LS0H T-Connector range is available in 15cm or 30cm lengths, with bespoke cable lengths available on request.

Designed and manufactured in Great Britain, this T-Connector system delivers reliable performance and supports efficient, high-quality installations.

Features & Benefits

• Prewired T-Connector plug and socket for rapid installation
• 3-core 0.75mm² LS0H flexible cable
• 30cm cable length for added installation flexibility
• Factory ferruled connections on trailing end
• Available in 15cm or 30cm lengths
• Bespoke cable lengths available on request
• Designed and manufactured in Great Britain

Technical Specification

Plug Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 1 x flexible (Class 5/6) or 1 x rigid (Class 1) conductors
• Conductor Size: 0.5mm² – 1.5mm²
• Termination: Screw terminals
• Cord Grip Size: Max. 8.0mmØ / Min. 4.0mmØ
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP20 (when plugged in)

Socket Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC (6242B), solid cores (Class 1)
• Termination: Utilises rapid Quickwire push-fit technology
• Cord Grip: Fully automatic
• Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC), solid cores (Class 1)
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP30

Documentation

Data Sheet for Quickwire T-Connector Plug & Socket
