Product Description

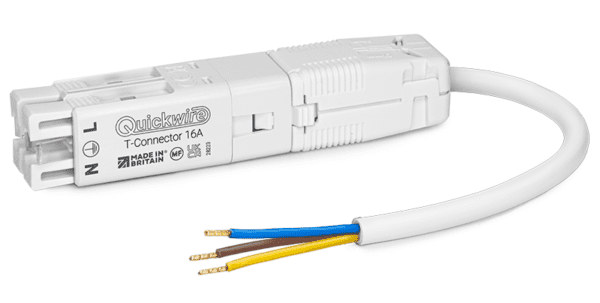

The Quickwire QTPS_375_LS0H_15 T-Connector Prewired Plug & Socket is a ready-to-install connection solution, supplied factory prewired with 3-core 0.75mm² LS0H flexible cable in a compact 15cm length. Ideal for professional electrical and lighting installations, it helps reduce site wiring time while delivering a secure plug-and-socket connection.

Each prewired plug is finished with factory-fitted ferruled connections on the trailing end for a neat, consistent termination. The range is available in 15cm or 30cm lengths, with bespoke cable lengths available on request.

Designed and manufactured in Great Britain, the Quickwire T-Connector system supports reliable performance and streamlined installation on site.

Features & Benefits

• Prewired T-Connector plug and socket for quicker installation
• 3-core 0.75mm² LS0H flexible cable
• 15cm cable length (30cm option also available)
• Factory ferruled connections on trailing end
• Bespoke lengths available on request
• Designed and manufactured in Great Britain

Technical Specification

Plug Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 1 x flexible (Class 5/6) or 1 x rigid (Class 1) conductors
• Conductor Size: 0.5mm² – 1.5mm²
• Termination: Screw terminals
• Cord Grip Size: Max. 8.0mmØ / Min. 4.0mmØ
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP20 (when plugged in)

Socket Specifications

• Rated Supply Voltage: 250V~ 16A (overcurrent protection limited to 16A)
• Poles: 3-pole
• Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC (6242B), solid cores (Class 1)
• Termination: Utilises rapid Quickwire push-fit technology
• Cord Grip: Fully automatic
• Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC), solid cores (Class 1)
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mmØ hole)
• IP Rating: IP30

Documentation

Data Sheet for Quickwire T-Connector Plug & Socket
