Product Description
690V Proving Unit for Voltage Indicators
The PU690 enables you to prove your 2 pole voltage indicator by supplying a 690V AC voltage to the two input terminals. With the inbuilt load of 200k ohms, at 690V the current is limited to 3.5mA. In addition, the PU690 is also is also suitable to prove High and Low Impedance devices such as multimeters and clamps.

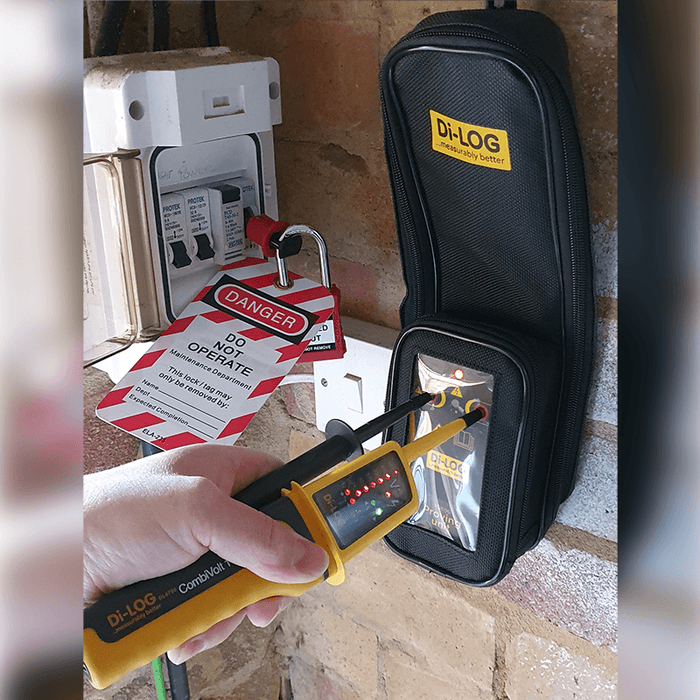

Is safe Isolation part of your testing regime?
“Adequate precautions shall be taken to prevent electrical equipment, which has been made dead in order to prevent danger while work is carried out on or near that equipment, from becoming electrically charged during that work if danger may thereby arise”.Regulation 13 of the Electricity at work Regulations 1989

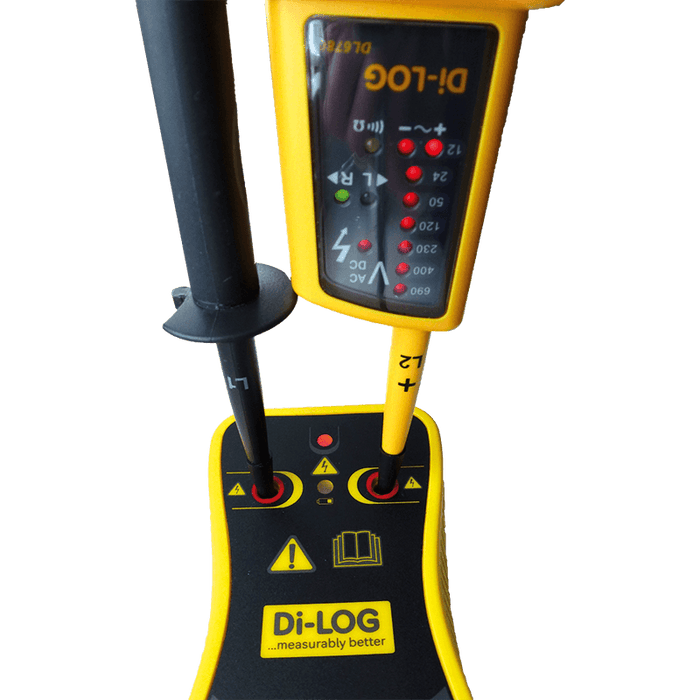

The PU690 will light all LED’s to 690V on the CombiVolt and most other 2 pole voltage testers
Features
- 690V AC Output
- High/Low Impedance
- Low Battery Indication
- CAT II 750V Safety Rated
