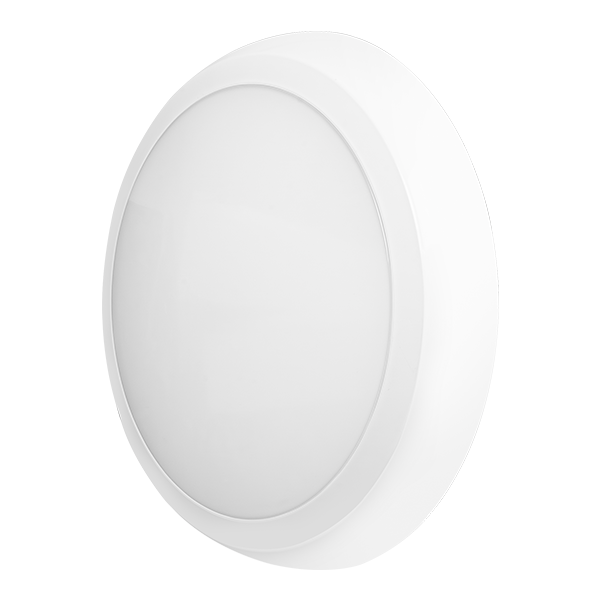

Ovia OEO15-M Evo Orb 10W/13W/15W IP65 CCT LED Bulkhead with Microwave Sensor – White

The Ovia OEO15-M Evo Orb LED Bulkhead combines flexible lighting control with intelligent microwave sensor technology in a robust and energy-efficient fitting. Designed for commercial, communal and general lighting applications, it features selectable wattage, adjustable colour temperature and configurable sensor settings.

An integrated microwave sensor provides automatic lighting control based on occupancy. Sensor settings can be adjusted using convenient DIP switches, allowing the fitting to be configured to suit the requirements of the installation. A corridor function is also available, making the OEO15-M particularly suitable for circulation areas, stairwells and communal spaces.

Integrated power-switchable technology enables the fitting to be set to 10W, 13W or 15W, allowing installers to select the required power output from a single luminaire.

The built-in CCT selector provides a choice of 3000K warm white, 4000K neutral white or 6000K daylight/cool white, offering additional flexibility for different environments and lighting requirements.

With an IP65 rating and IK08 impact resistance, the Evo Orb is designed for dependable performance in demanding environments. The fitting aligns with standard BESA box spacing for straightforward mounting, while push-fit terminals help simplify electrical connections.

Four M20 gland entry points provide flexible wiring options, with additional knockouts incorporated into the bezel to accommodate glands where required.

Key Features & Benefits

• Integrated adjustable microwave motion sensor
• Sensor configuration via DIP switches
• Corridor function for enhanced lighting control
• Selectable 10W, 13W or 15W power output
• Selectable 3000K, 4000K or 6000K colour temperature
• IP65 rated for protection against dust and water
• IK08 rated for enhanced impact resistance
• Push-fit terminals for quick and convenient wiring
• Designed to align with standard BESA box spacing
• Four M20 gland entry points for flexible cable installation
• Additional bezel knockouts for gland entry
• Durable white finish

Specification

• Brand: Ovia
• Range: Evo Orb
• Product Code: OEO15-M
• Wattage: 10W / 13W / 15W selectable
• Colour Temperature: 3000K / 4000K / 6000K selectable
• Sensor: Microwave
• Sensor Adjustment: DIP switches
• Corridor Function: Yes
• IP Rating: IP65
• Impact Rating: IK08
• Terminal Type: Push-fit
• Cable Entry: 4 x M20 gland entry points
• Finish: White
