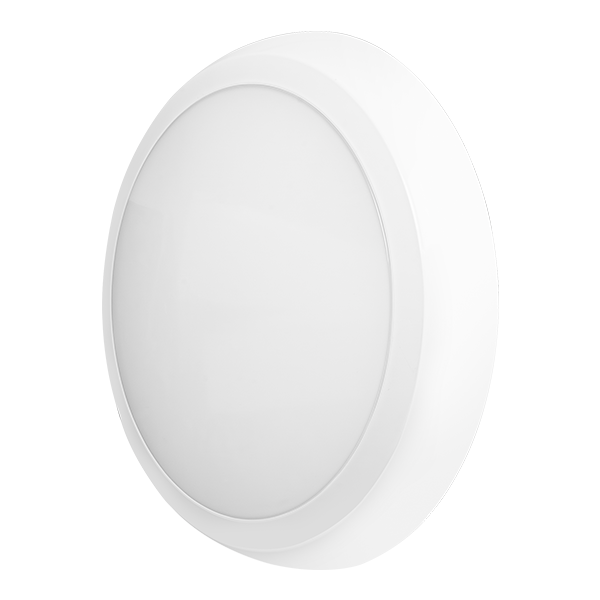

Ovia OEO15 Evo Orb 10W/13W/15W IP65 CCT LED Bulkhead – White

The Ovia OEO15 Evo Orb LED Bulkhead is a versatile and durable lighting solution designed for domestic, commercial and communal applications. Featuring selectable wattage and colour temperature, it provides installers with the flexibility to configure light output and colour appearance from a single fitting.

Power-switchable technology allows the OEO15 to be set to 10W, 13W or 15W, making it easy to match the required light output without changing the fitting. The integrated CCT selector also provides a choice of 3000K warm white, 4000K neutral white or 6000K daylight/cool white.

With an IP65 weather-resistant rating and IK08 impact protection, the Evo Orb is designed for reliable performance in demanding environments. Push-fit terminals help simplify wiring, while compatibility with standard BESA box spacing enables quick and secure installation.

For greater installation flexibility, the bulkhead incorporates four M20 gland entry points, with additional bezel knockouts to accommodate glands where required.

Key Features & Benefits

• Selectable 10W, 13W or 15W power output
• Selectable 3000K, 4000K or 6000K colour temperature
• IP65 rated for protection against dust and water
• IK08 impact resistant construction
• Push-fit terminals for quick and convenient wiring
• Designed to align with standard BESA box spacing
• Four M20 gland entry points for flexible cable installation
• Additional bezel knockouts for gland entry
• Durable white finish

Specification

• Brand: Ovia
• Range: Evo Orb
• Product Code: OEO15
• Wattage: 10W / 13W / 15W selectable
• Colour Temperature: 3000K / 4000K / 6000K selectable
• IP Rating: IP65
• Impact Rating: IK08
• Terminal Type: Push-fit
• Cable Entry: 4 x M20 gland entry points
• Finish: White

Data Sheet:

Click Here for Data Sheet
