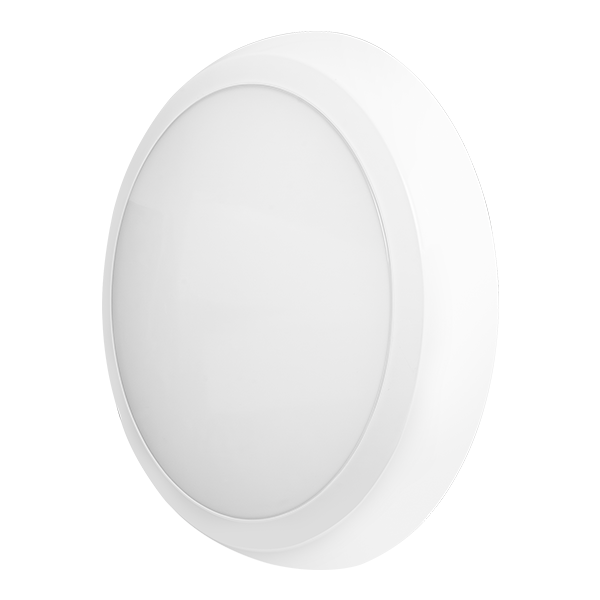

Ovia OEO15-E Evo Orb 10W/13W/15W IP65 CCT LED Bulkhead with Emergency – White

The Ovia OEO15-E Evo Orb Emergency LED Bulkhead combines flexible lighting control, robust construction and emergency functionality in one versatile fitting. Designed for commercial, communal and general lighting applications, it features selectable wattage, adjustable colour temperature and a maintained emergency pack.

The emergency version provides the flexibility to select between standard and Self-Test Emergency modes using positions 1 and 2 on the driver. With a minimum 3-hour emergency duration, the OEO15-E helps provide dependable illumination in the event of a mains power failure.

Integrated power-switchable technology allows the fitting to be configured at 10W, 13W or 15W, enabling installers to select the appropriate light output for the application without changing the luminaire.

A built-in CCT selector provides a choice of 3000K warm white, 4000K neutral white or 6000K daylight/cool white, offering greater flexibility across a wide range of installations.

With an IP65 rating and IK08 impact resistance, the Evo Orb is designed for reliable performance in demanding environments. It is also designed to align with standard BESA box spacing for straightforward mounting, while push-fit terminals help make electrical connections quick and convenient.

Four M20 gland entry points provide flexible cable entry options, with additional knockouts incorporated into the bezel to accommodate glands where required.

Key Features & Benefits

• Maintained emergency LED bulkhead
• Selectable standard or Self-Test Emergency operation
• Minimum 3-hour emergency duration
• Selectable 10W, 13W or 15W power output
• Selectable 3000K, 4000K or 6000K colour temperature
• IP65 rated for protection against dust and water
• IK08 rated for enhanced impact resistance
• Push-fit terminals for quick and convenient wiring
• Designed to align with standard BESA box spacing
• Four M20 gland entry points for flexible cable installation
• Additional bezel knockouts for gland entry
• Durable white finish

Specification

• Brand: Ovia
• Range: Evo Orb
• Product Code: OEO15-E
• Wattage: 10W / 13W / 15W selectable
• Colour Temperature: 3000K / 4000K / 6000K selectable
• Emergency: Maintained
• Emergency Modes: Standard / Self-Test selectable
• Emergency Duration: Minimum 3 hours
• IP Rating: IP65
• Impact Rating: IK08
• Terminal Type: Push-fit
• Cable Entry: 4 x M20 gland entry points
• Finish: White

Data Sheet:

Click Here for Data Sheet
