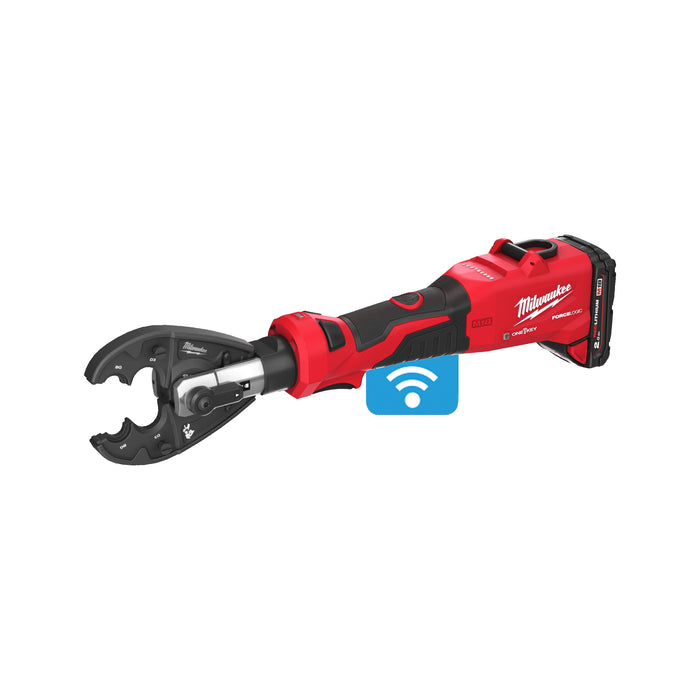

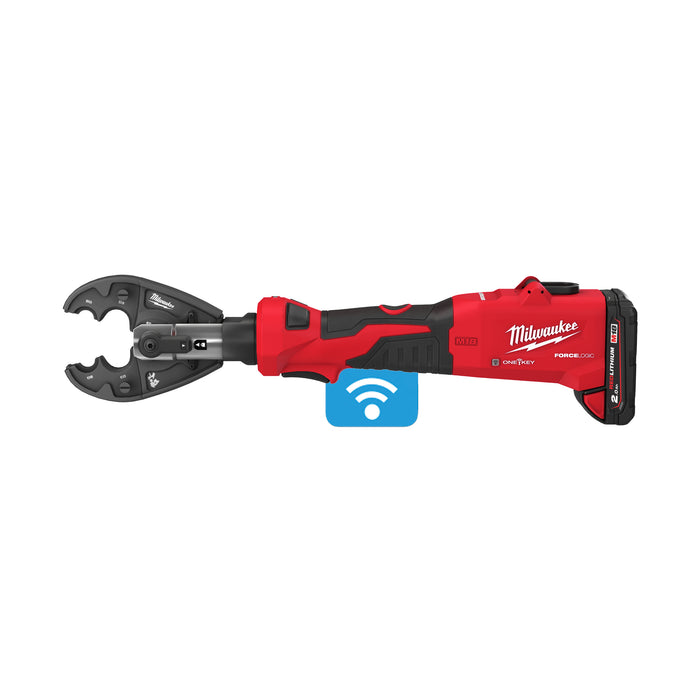

Milwaukee M18ONEHUCT-202B SWA KIT 18V FORCE LOGIC™ ONE-KEY™ Hydraulic Utility Crimper
The Milwaukee M18ONEHUCT-202B SWA KIT 18V FORCE LOGIC™ ONE-KEY™ Hydraulic Utility Crimper is a professional cordless crimping and cable cutting solution designed for demanding electrical and utility applications. Delivering a powerful 53kN crimping force, it can complete compatible connector crimps in less than 3 seconds.
This SWA kit is supplied with a W-Die jaw with fixed BG crimping groove and a dedicated SWA cutting jaw, providing greater versatility for professional cable installation work. The crimping jaw features universal die reception to accept most common W-style dies.
The compact in-line construction and balanced design provide excellent control during one-handed operation, while the 350° rotating head allows easier positioning in confined spaces. Its versatile 2-in-1 platform also allows the crimping jaw to be exchanged for compatible ACSR, Cu/AL or armoured cable cutting jaws.
Milwaukee PFM™ Predictive Force Monitoring automatically modifies the tool output according to the connector to help achieve optimum crimping pressure. A green indicator provides immediate visual confirmation of the crimping process.
Integrated ONE-KEY™ technology records and stores every crimp for professional report creation through the ONE-KEY™ app. ONE-KEY™ also provides cloud-based inventory management, location tracking and theft-prevention functionality for professional tool management.
All Milwaukee products, including kits, are supplied in genuine branded Milwaukee packaging. We do not supply brown-box or unboxed Milwaukee products.
Key Features
- M18™ FORCE LOGIC™ ONE-KEY™ hydraulic utility crimping tool.
- Powerful 53kN crimping force.
- Completes compatible connector crimps in less than 3 seconds.
- Supplied with W-Die jaw featuring a fixed BG crimping groove.
- Includes dedicated SWA cutting jaw for steel wire armoured cable applications.
- Universal die reception accepts most common W-style dies.
- POWERSTATE™ brushless motor delivers up to four times greater motor life.
- Balanced construction provides excellent control during one-handed operation.
- Compact in-line body and slim jaw design improve access in confined spaces.
- 350° rotating head provides flexible positioning.
- 2-in-1 platform allows the crimping jaw to be exchanged for compatible ACSR, Cu/AL or armoured cable cutting jaws.
- PFM™ Predictive Force Monitoring automatically adjusts output according to the connector.
- Green indicator provides visual verification of optimum crimping pressure.
- Records and stores every crimp for professional report creation through the ONE-KEY™ app.
- ONE-KEY™ provides cloud-based inventory management, location tracking and theft-prevention functionality.
- FORCE LOGIC™ system provides up to 30,000 cycles between calibration inspections.
- Tool continues to operate after reaching 30,000 cycles.
- Sealed electronics provide resistance against dirt, dust and moisture.
- Battery-tool communication prevents the crimping cycle from starting when battery charge is insufficient to complete the operation.
- REDLINK™ individual battery cell monitoring optimises runtime and long-term battery durability.
- Compatible with all MILWAUKEE® M18™ batteries.
Technical Specification
-
Product Code: M18ONEHUCT-202B SWA KIT
-
Article Number: 4933478303
-
EAN: 4058546344801
-
Voltage: 18V
-
Battery Type: Li-ion
-
Battery Capacity: 2.0Ah
-
Batteries Supplied: 2
-
Crimping Force: 53kN
-
Crimping Style: Scissors
-
Crimping Time: Less than 3 seconds
-
Head Rotation: 350°
-
Calibration Inspection Interval: 30,000 cycles
-
Standard Equipment: W-Die jaw with fixed BG crimping groove and SWA cutting jaw
-
Sound Pressure Level: 75.6dB(A)
-
Sound Pressure Uncertainty: 3dB(A)
-
Sound Power Level: 86.6dB(A)
-
Sound Power Uncertainty: 3dB(A)
-
Vibration Level: 1.2m/s²
-
Vibration Uncertainty: 1.5m/s²
-
Weight with M18 B2 Battery: 3.3kg
-
Supplied In: Milwaukee tool bag
Kit Includes
- 1 x Milwaukee M18 ONEHUCT FORCE LOGIC™ ONE-KEY™ Hydraulic Utility Crimper
- 1 x W-Die Jaw with Fixed BG Crimping Groove
- 1 x SWA Cutting Jaw
- 2 x Milwaukee M18 B2 2.0Ah Batteries
- 1 x Milwaukee M12-18 C Charger
- 1 x Milwaukee Tool Bag

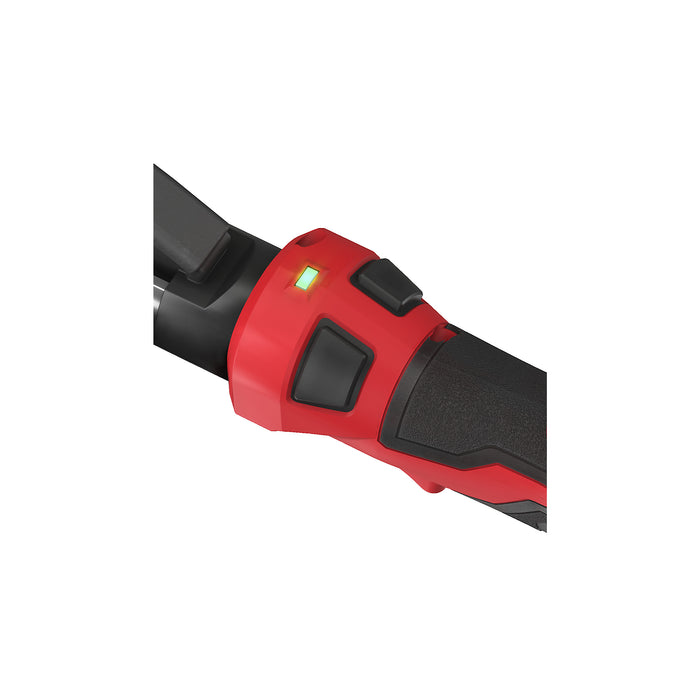

PFM™ Predictive Force Monitoring
Milwaukee PFM™ Predictive Force Monitoring automatically adjusts tool output according to the connector being crimped, helping provide optimum pressure for each application. A green indicator provides immediate visual verification after the crimping cycle.

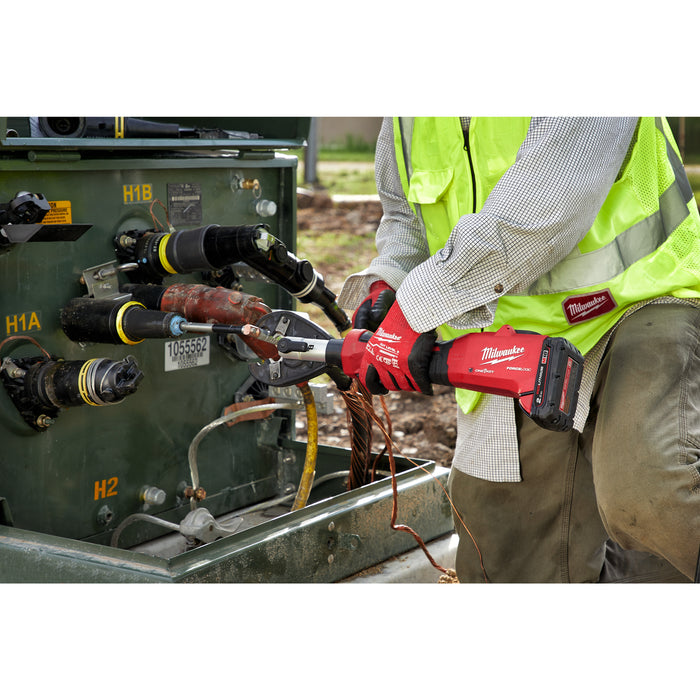

Crimping & Cable Cutting System
The M18 ONEHUCT provides a versatile 2-in-1 platform for professional cable work. The crimping jaw can be exchanged for compatible ACSR, copper/aluminium or armoured cable cutting jaws. This SWA kit includes both the W-Die crimping jaw with fixed BG groove and an SWA cutting jaw.

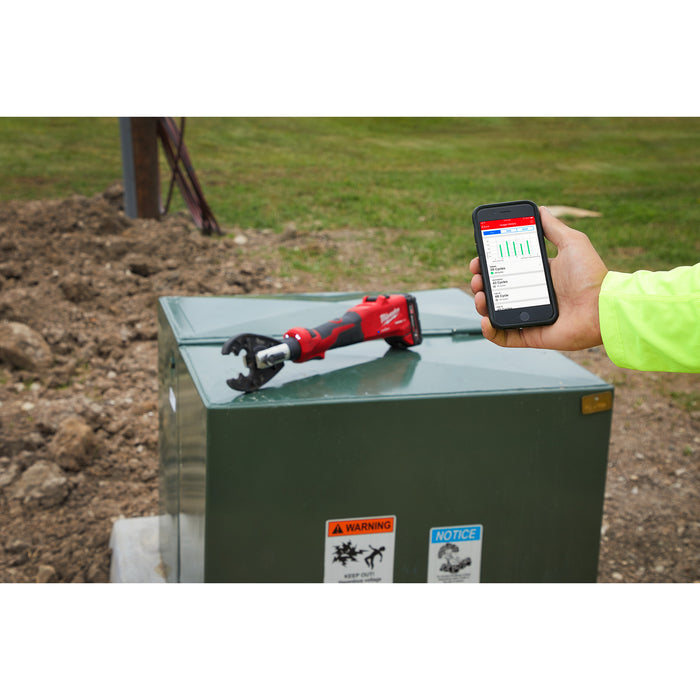

ONE-KEY™ Reporting, Tracking & Security
The tool records and stores every completed crimp for professional report creation through the Milwaukee ONE-KEY™ app. ONE-KEY™ also provides cloud-based inventory management, location tracking and theft-prevention functionality to help businesses manage valuable tools and equipment.
