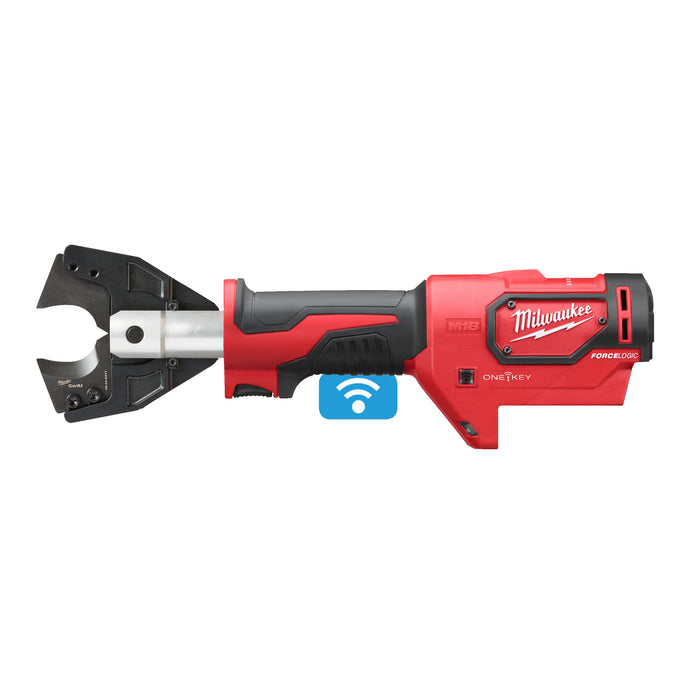

Milwaukee M18ONEHCC-0C CU/AL-SET 18V FORCE LOGIC™ 35mm Hydraulic Cable Cutter
The Milwaukee M18ONEHCC-0C CU/AL-SET 18V FORCE LOGIC™ Hydraulic Cable Cutter is a powerful professional cordless cable cutting solution designed for fast and controlled cutting of copper and aluminium cables. Supplied with a Cu/AL cutting jaw, it delivers 53kN of hydraulic cutting force and can cut compatible cables up to 35mm diameter in less than 3 seconds.
The compact in-line design and slim cutting jaw provide excellent access in confined working areas, while the 350° rotating head allows the cutter to be positioned easily around installed cables. Its balanced construction provides secure control during one-handed operation, making it well suited to professional electrical installation and cable maintenance work.
A quick jaw reception system allows the tool to be reconfigured for a different compatible cutting application in less than 15 seconds. The M18 ONEHCC platform is designed to provide cutting solutions for ACSR wire, steel guy wire, fine-stranded cable and standard copper or aluminium cable when equipped with the appropriate cutting jaw.
Integrated ONE-KEY™ technology provides cloud-based tool tracking, inventory management and remote locking functionality. ONE-KEY™ reporting also provides a detailed tool activity and accuracy protocol for professional equipment management.
Please Note: This is a bare unit supplied with a Cu/AL jaw and kitbox. No battery or charger is supplied.
All Milwaukee products, including kits, are supplied in genuine branded Milwaukee packaging. We do not supply brown-box or unboxed Milwaukee products.
Key Features
- Professional M18™ FORCE LOGIC™ hydraulic cable cutter.
- Supplied with Cu/AL cutting jaw.
- Suitable for cutting Class 1–4 copper and aluminium cable.
- Maximum cutting diameter of 35mm.
- Powerful 53kN hydraulic cutting force.
- Cuts compatible cables in less than 3 seconds.
- POWERSTATE™ brushless motor provides excellent power, runtime and service life.
- Fully balanced design provides secure control during one-handed operation.
- Compact in-line construction and slim jaw improve access in restricted areas.
- 350° rotating head provides flexible positioning around installed cables.
- Quick jaw reception allows compatible cutting jaws to be changed in less than 15 seconds.
- Compatible jaw system provides solutions for ACSR wire, steel guy wire, fine-stranded cable and standard copper or aluminium cable.
- ONE-KEY™ tool tracking and security provides cloud-based equipment management.
- Remote locking functionality helps improve tool security.
- ONE-KEY™ reporting provides detailed tool activity records.
- REDLITHIUM™ battery technology and REDLINK™ electronics provide excellent power, runtime and durability when used with a compatible battery.
- Flexible battery system is compatible with all MILWAUKEE® M18™ batteries.
Technical Specification
-
Product Code: M18ONEHCC-0C CU/AL-SET
-
Article Number: 4933464300
-
EAN: 4058546222451
-
Voltage: 18V
-
Battery Type: Li-ion
-
Batteries Supplied: 0
-
Cutting Force: 53kN
-
Maximum Cutting Diameter: 35mm
-
Cutting Time: Less than 3 seconds
-
Suitable Cutting Material: Cu & AL cable (Class 1–4)
-
Standard Equipment: Cu/AL cutting jaw
-
Head Rotation: 350°
-
Tool Shape: In-line
-
Remote Controlled: No
-
Sound Pressure Level: 75.6dB(A)
-
Sound Pressure Uncertainty: 3dB(A)
-
Sound Power Level: 86.6dB(A)
-
Sound Power Uncertainty: 3dB(A)
-
Vibration Level: 1.04m/s²
-
Vibration Uncertainty: 1.5m/s²
-
Weight with M18 B2 Battery: 3.7kg
-
Supplied In: Milwaukee kitbox
Supplied With
- 1 x Milwaukee M18 ONEHCC FORCE LOGIC™ Hydraulic Cable Cutter
- 1 x Cu/AL Cutting Jaw
- 1 x Milwaukee Kitbox
Battery and charger are not included.
Quick-Change Cutting Jaw System
The quick jaw reception system allows the M18 ONEHCC to be reconfigured for another compatible cable cutting application in less than 15 seconds. With the appropriate jaw fitted, the platform can provide cutting solutions for ACSR wire, steel guy wire, fine-stranded cable and standard copper or aluminium cable.
ONE-KEY™ Tracking & Security
Integrated ONE-KEY™ technology provides cloud-based tool tracking and inventory management. Remote locking functionality helps protect valuable equipment, while the reporting feature provides detailed tool activity information for professional fleet and equipment management.
