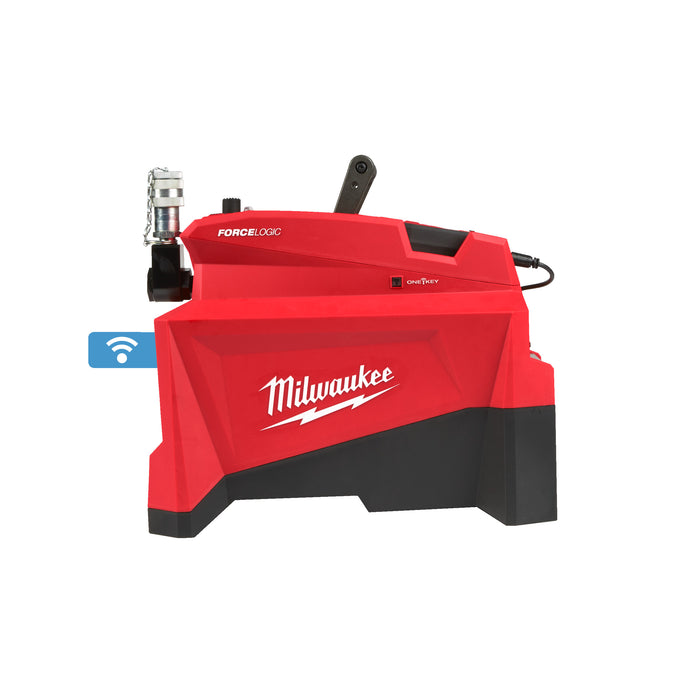

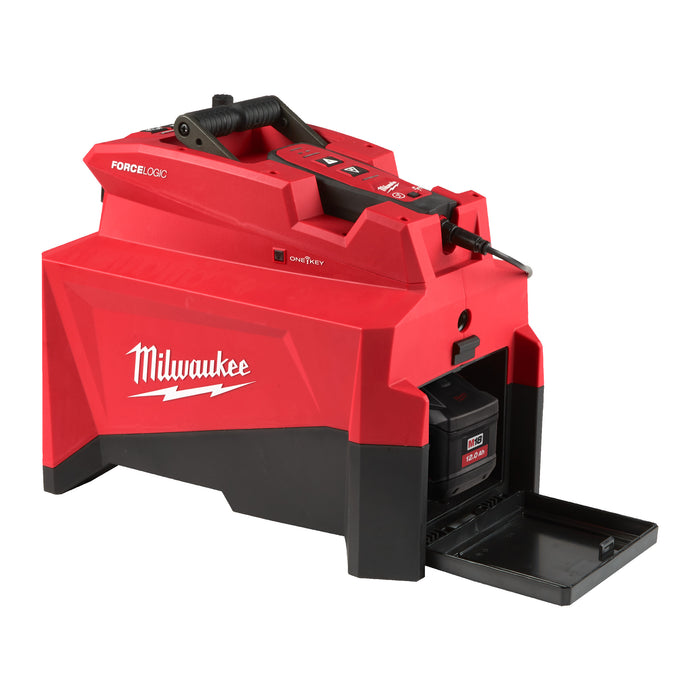

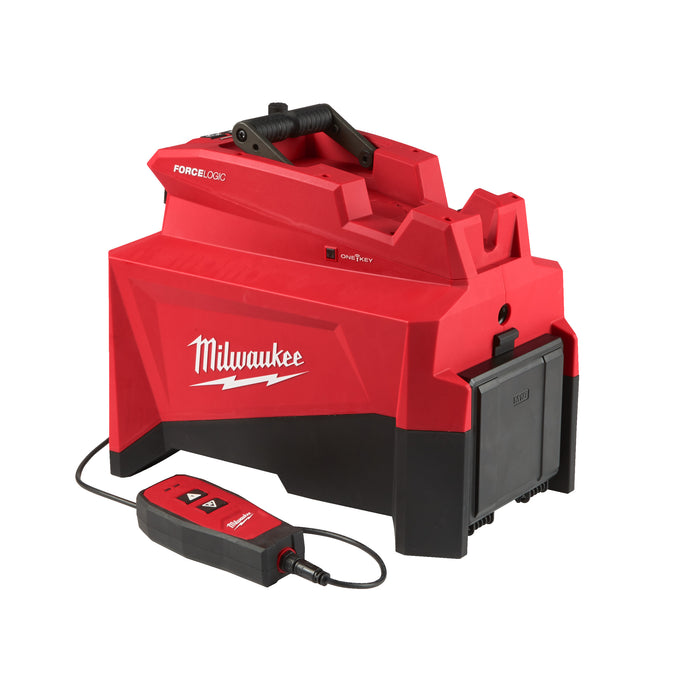

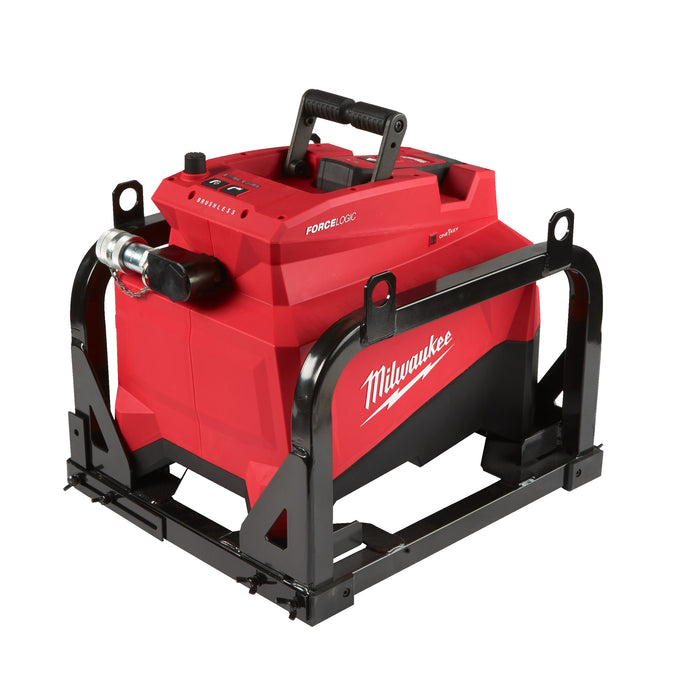

Milwaukee M18HUP700-121 18V FORCE LOGIC™ 700 Bar Hydraulic Utility Pump

The Milwaukee M18HUP700-121 18V FORCE LOGIC™ Hydraulic Utility Pump is a professional cordless hydraulic power unit designed to operate compatible single-acting 700 bar crimping, cutting and punching head attachments. Delivering a maximum pressure of 700 bar / 10,000 PSI, it provides a powerful and portable solution for demanding utility and electrical applications.

A large 1.6 litre total oil reservoir combined with a high flow rate helps deliver faster working cycles. The pump provides a low-pressure flow rate of 2.05l/min and a high-pressure flow rate of 0.42l/min, helping improve productivity across compatible hydraulic applications.

The M18 HUP700 uses an industry-standard CEJN Series 115 G1/4" female quick-connect coupler for compatibility with commonly used hydraulic attachments. A 1.8m corded remote controller allows the operator to work away from the pump and can be extended up to 7m using compatible accessory extension cords.

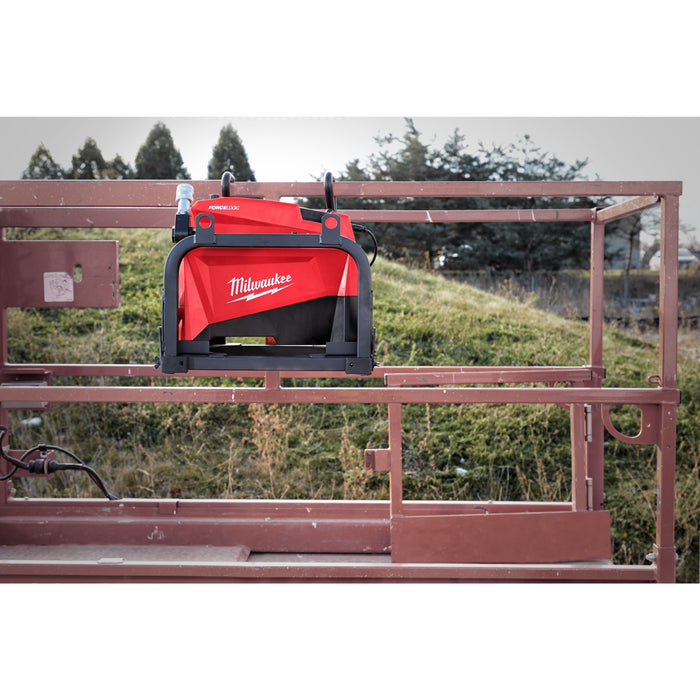

Designed for demanding site conditions, the pump features IP54-rated ingress protection and a sealed battery door for improved protection against dirt, dust and moisture. A balanced lifting handle provides even weight distribution to make transportation between working locations easier.

Integrated PFM™ Predictive Force Monitoring provides instant pressure verification through a green indicator. Milwaukee ONE-KEY™ technology adds cloud-based tool tracking, inventory management, remote locking and reporting functionality for professional equipment management.

Please Note: This product is supplied with one M18 FB12 12.0Ah battery and M12-18 FC fast charger. No kitbox or tool bag is supplied.

All Milwaukee products, including kits, are supplied in genuine branded Milwaukee packaging. We do not supply brown-box or unboxed Milwaukee products.

Key Features

• M18™ FORCE LOGIC™ professional cordless hydraulic utility pump.
• Designed to power compatible single-acting 700 bar crimping, cutting and punching head attachments.
• Maximum hydraulic pressure of 700 bar / 10,000 PSI.
• Large 1.6 litre total oil volume supports fast working cycles.
• 2.05l/min low-pressure flow rate.
• 0.42l/min high-pressure flow rate.
• 1.3 litre consumable oil volume.

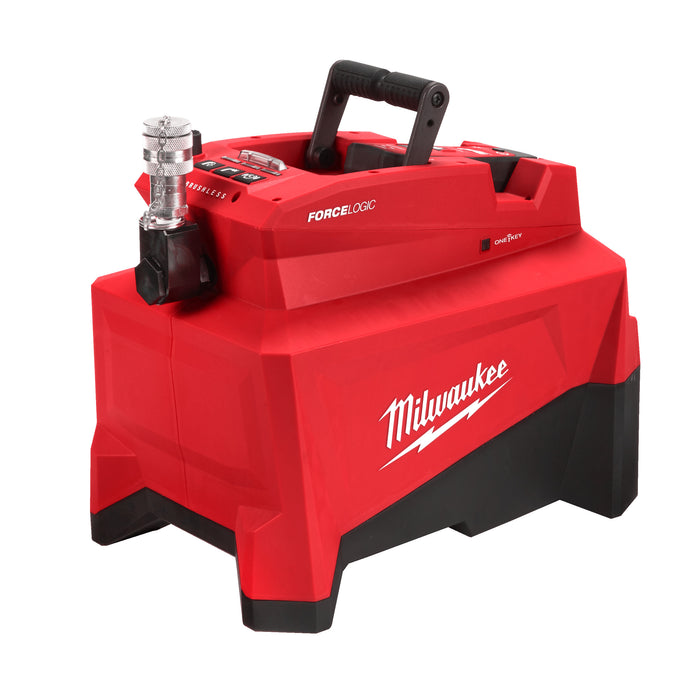

• Industry-standard CEJN Series 115 G1/4" female quick-connect coupler.

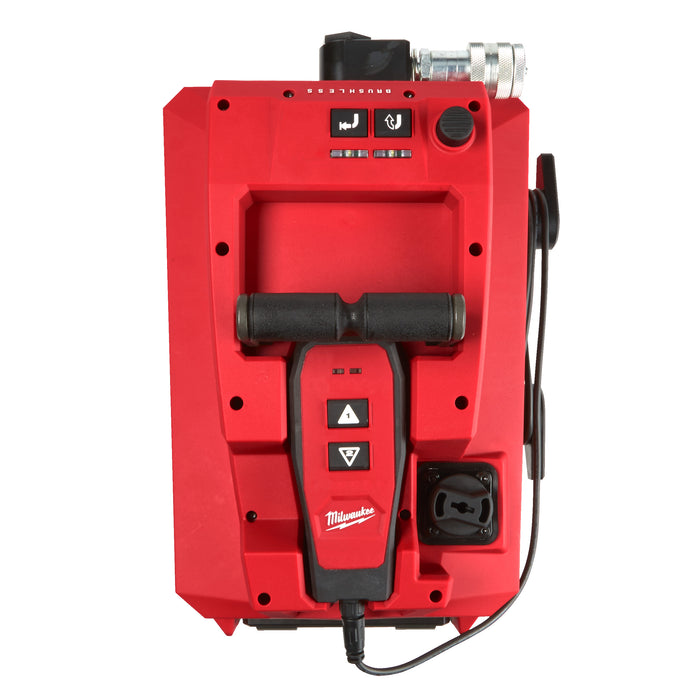

• 1.8m corded remote controller allows operation away from the pump.
• Remote controller can be extended up to 7m with compatible accessory extension cords.
• Auto-retract functionality.
• PFM™ Predictive Force Monitoring provides instant pressure verification via a green indicator.
• IP54-rated ingress protection for demanding working environments.

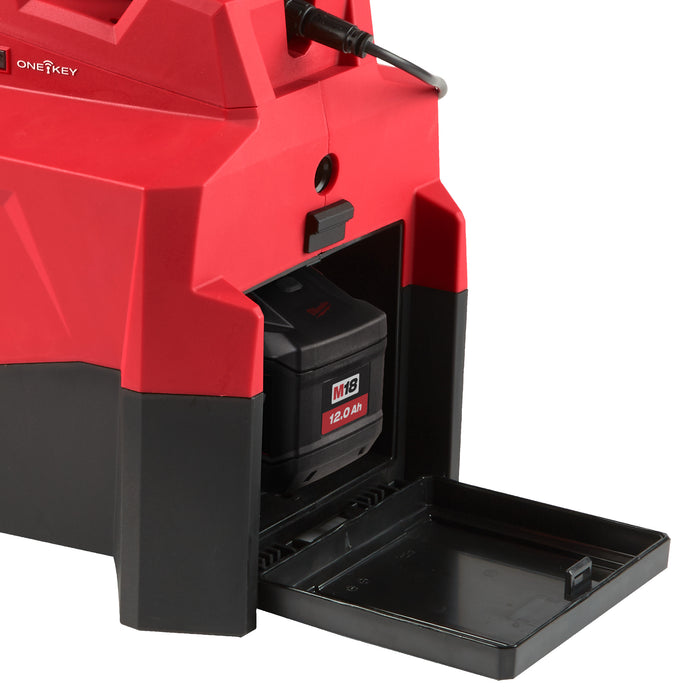

• Sealed battery door provides additional protection against dirt, dust and moisture.

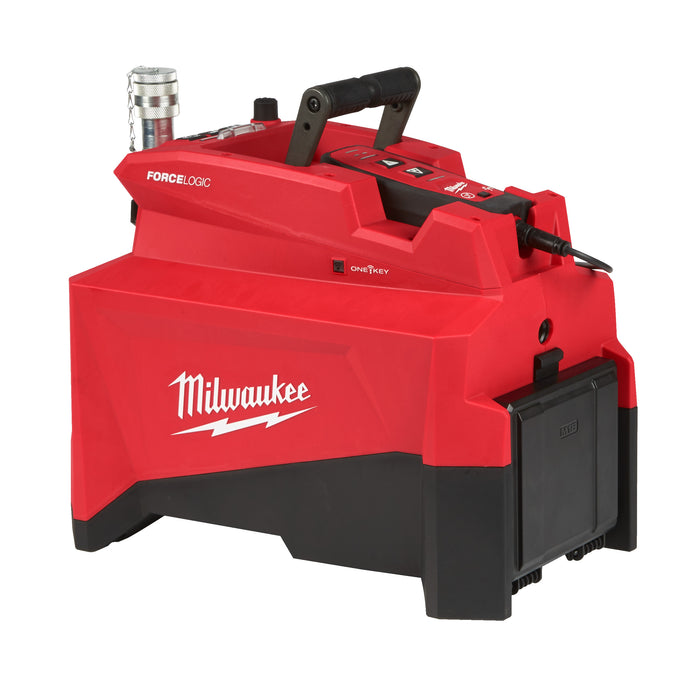

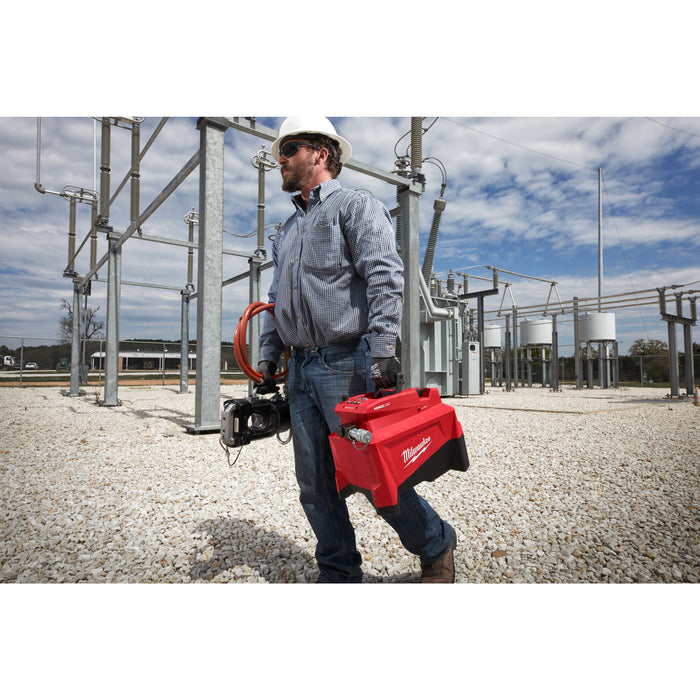

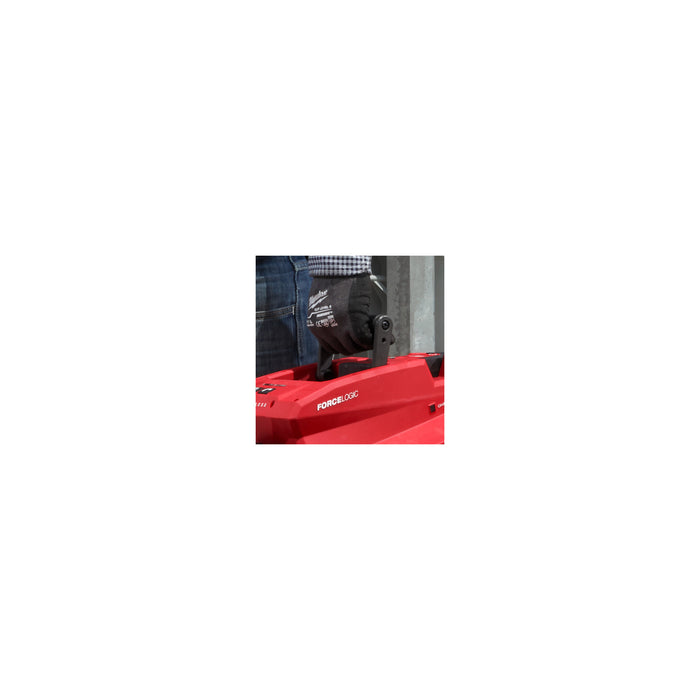

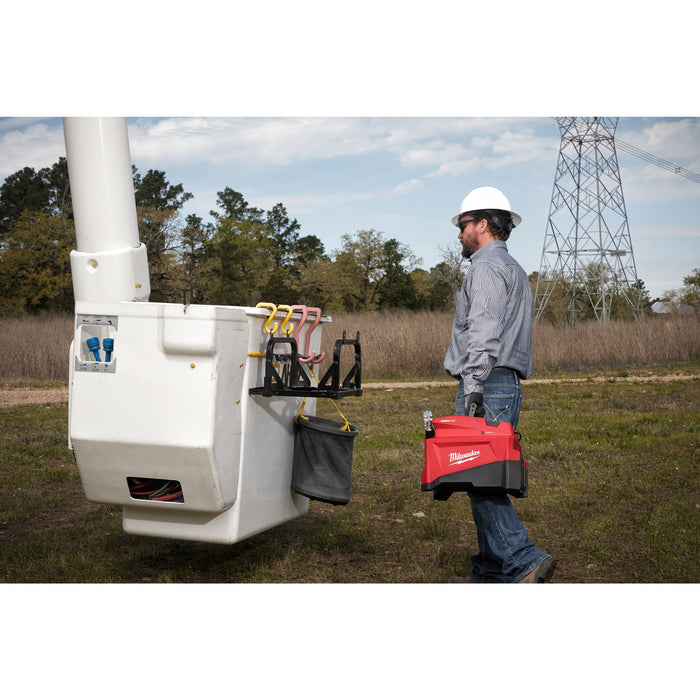

• Balanced lifting handle provides improved weight distribution during transportation.
• ONE-KEY™ tool tracking and security provides cloud-based equipment management.
• Remote locking functionality helps protect valuable equipment.
• ONE-KEY™ reporting provides detailed tool activity and accuracy information.
• Brushless motor, REDLITHIUM™ battery technology and REDLINK™ electronics provide excellent power, runtime and durability.
• Flexible battery system works with all MILWAUKEE® M18™ batteries.

Technical Specification

• Product Code: M18HUP700-121
• Article Number: 4933499336
• EAN: 4058546565008
• Voltage: 18V
• Battery Type: Li-ion
• Battery Capacity: 12.0Ah
• Batteries Supplied: 1
• Maximum Pressure: 700 bar / 10,000 PSI
• Total Oil Volume: 1.6 litres
• Consumable Oil Volume: 1.3 litres
• Oil Tank Capacity: 1.3 litres
• Low-Pressure Flow Rate: 2.05l/min
• High-Pressure Flow Rate: 0.42l/min
• Coupler Type: CEJN Series 115 G1/4"
• Auto Retract: Yes
• Remote Controlled: Yes
• Ingress Protection: IP54
• Sound Pressure Level: 77.7dB(A)
• Sound Pressure Uncertainty: 3dB(A)
• Sound Power Level: 88.7dB(A)
• Sound Power Uncertainty: 3dB(A)
• Weight with M18 HB12 Battery: 16.5kg
• Supplied In: No kitbox or bag supplied

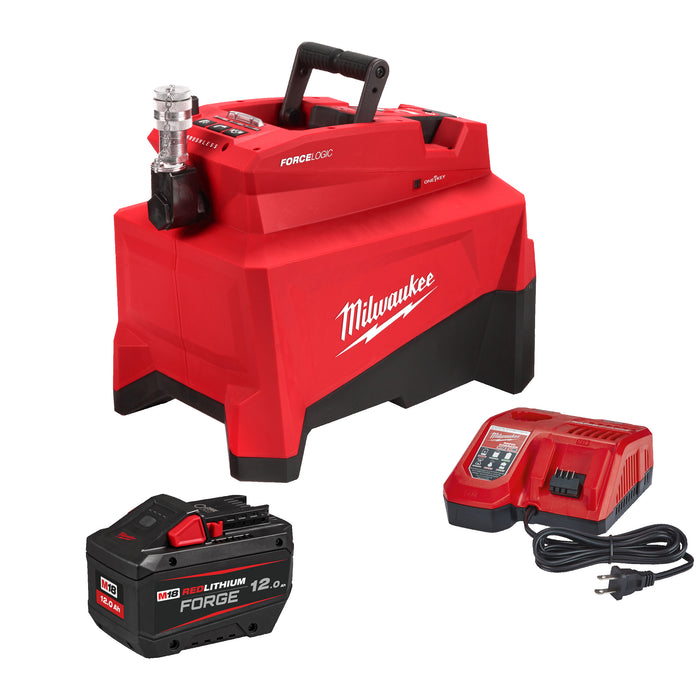

Kit Includes

• 1 x Milwaukee M18 HUP700 FORCE LOGIC™ Hydraulic Utility Pump
• 1 x Milwaukee M18 FB12 12.0Ah Battery Pack
• 1 x Milwaukee M12-18 FC Fast Charger
• 1 x Corded Remote Controller
• 1 x 1.8m Controller Extension Cord
• 1 x Male-to-Male CEJN Series 115 Coupler Adaptor

No kitbox or tool bag is supplied.

700 Bar Hydraulic Performance

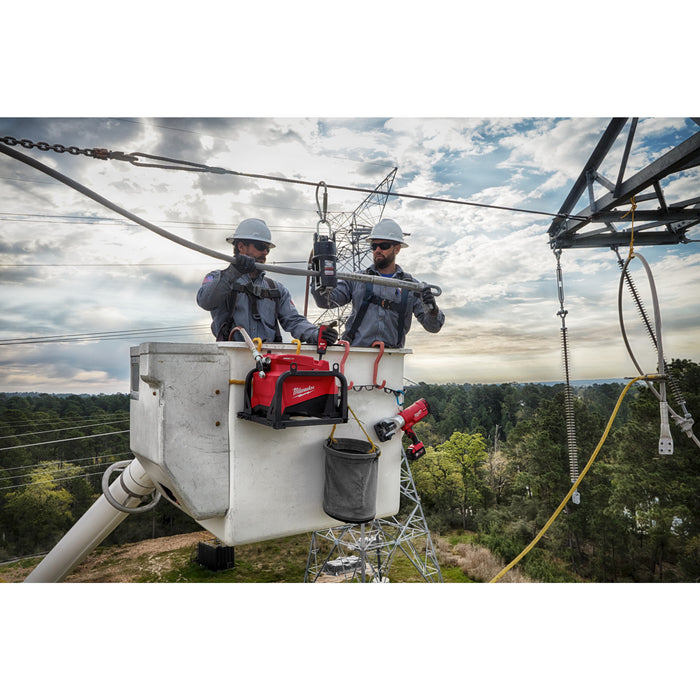

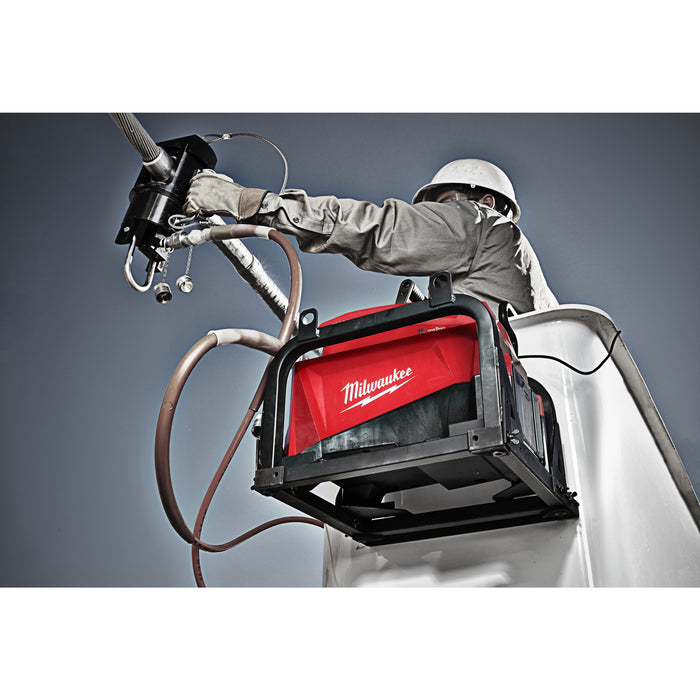

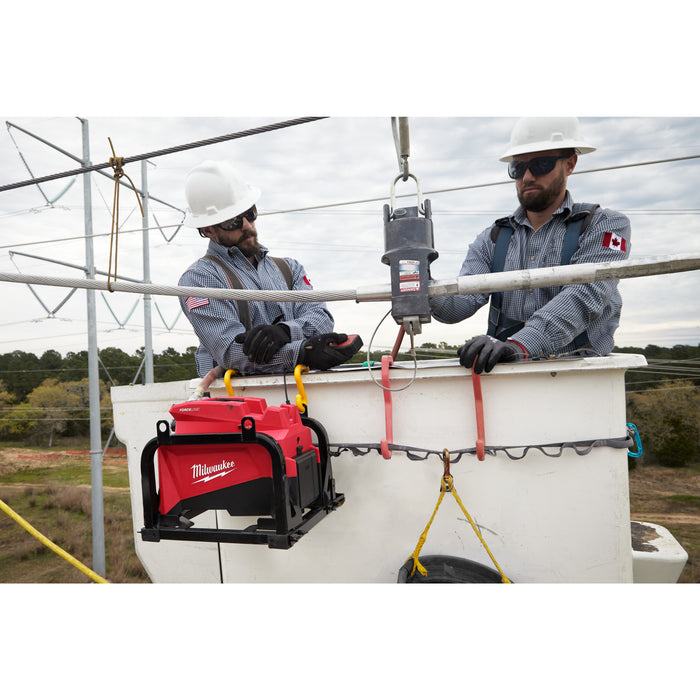

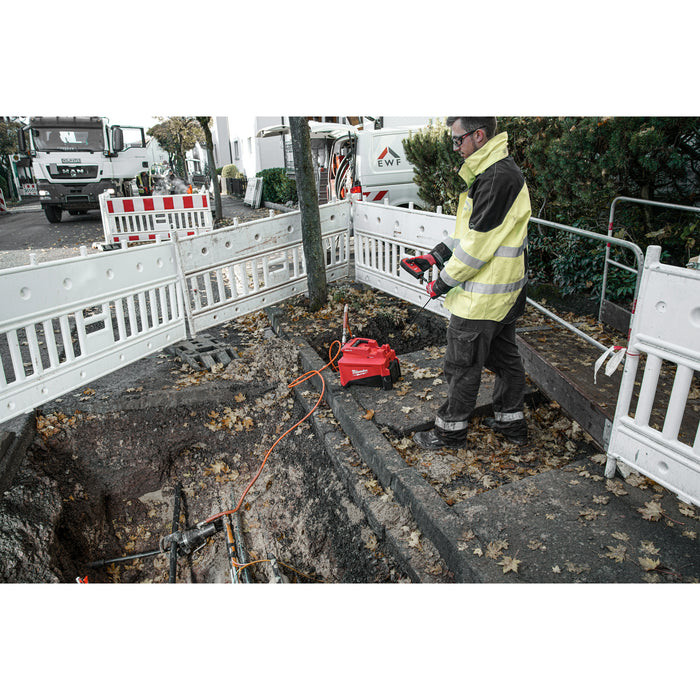

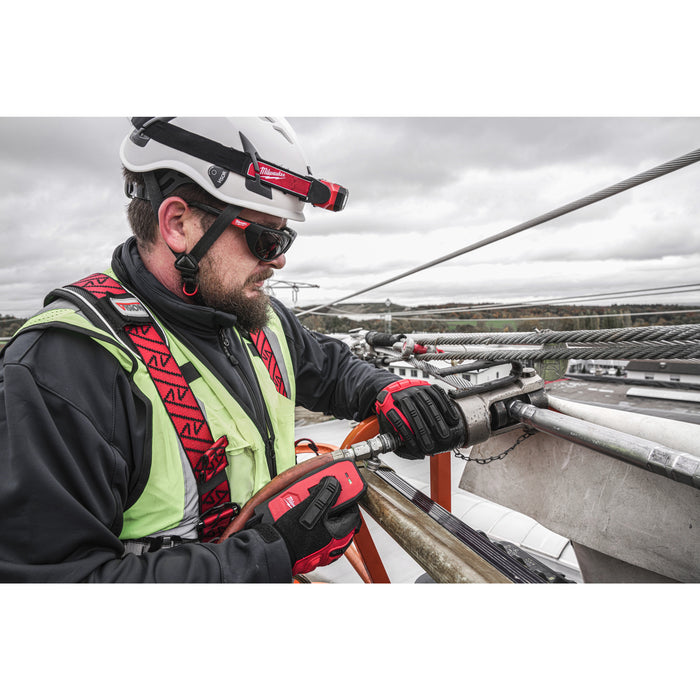

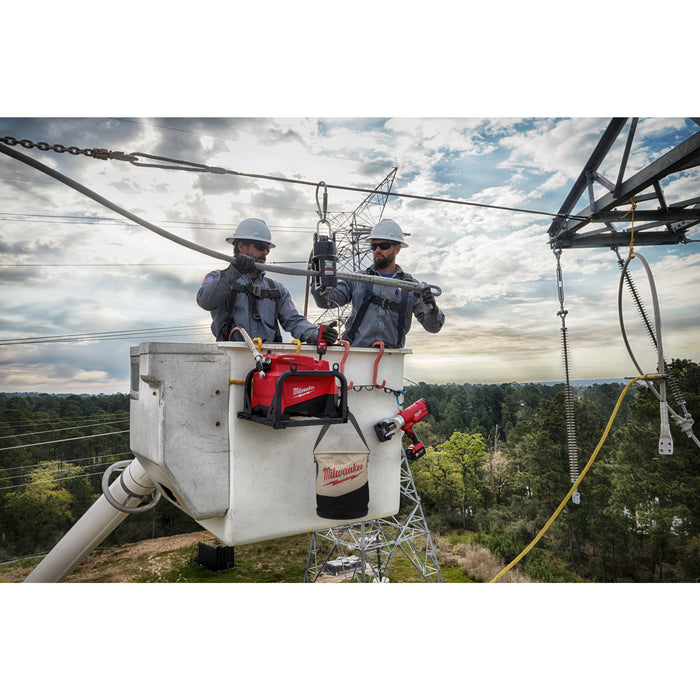

The M18 HUP700 is designed to power compatible single-acting hydraulic crimping, cutting and punching heads operating at pressures up to 700 bar. Its large oil capacity and high flow rates help reduce working cycle times for demanding professional utility applications.

Remote Operation & PFM™

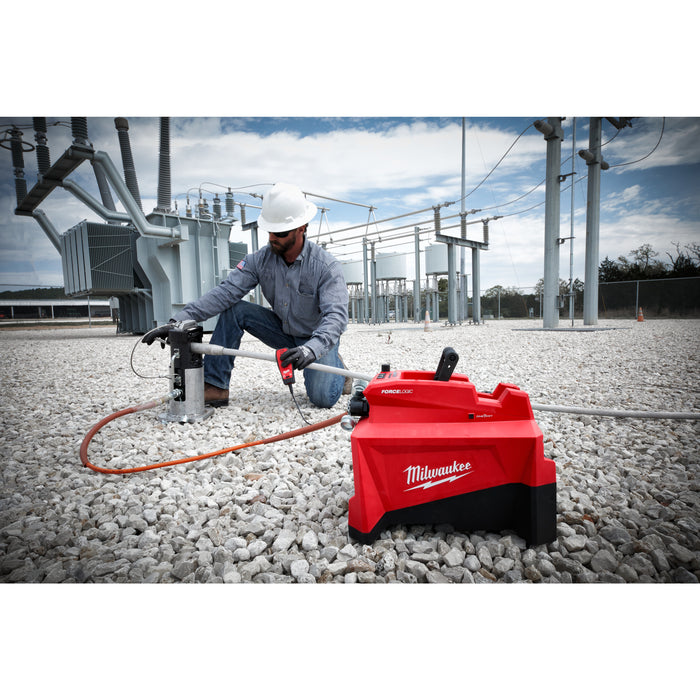

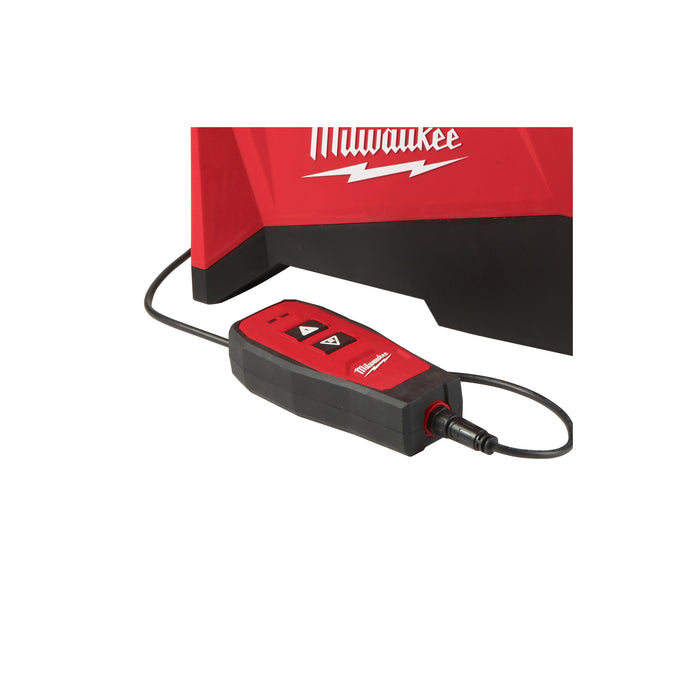

The supplied 1.8m corded controller enables operation away from the hydraulic pump and can be extended up to 7m using compatible accessory extension cords. PFM™ Predictive Force Monitoring provides instant pressure verification through a green indicator to help confirm hydraulic pressure during operation.

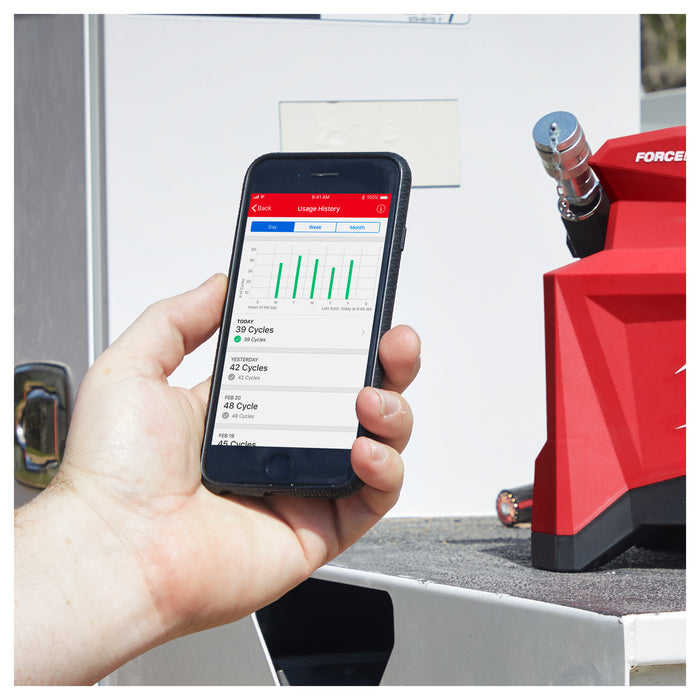

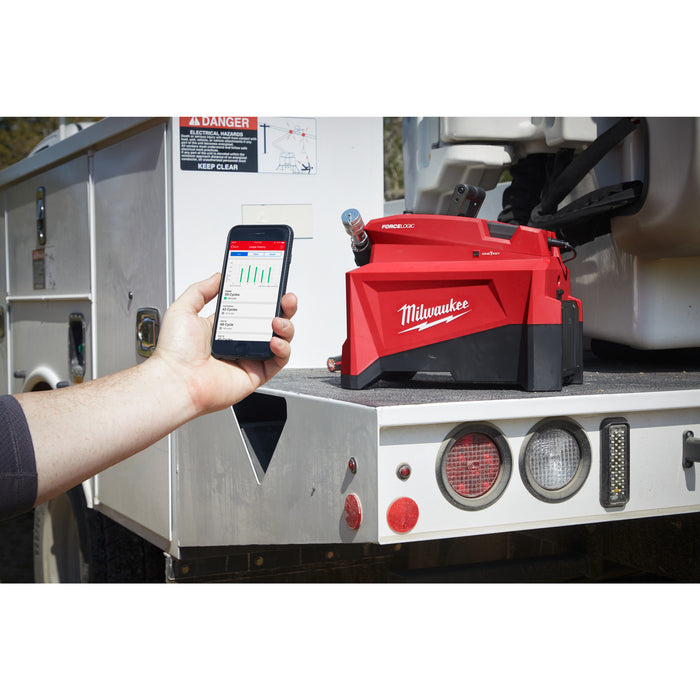

ONE-KEY™ Tracking & Security

Integrated ONE-KEY™ technology provides cloud-based tool tracking and inventory management. Remote locking functionality helps protect valuable equipment, while reporting provides detailed tool activity and accuracy information for professional fleet management.
