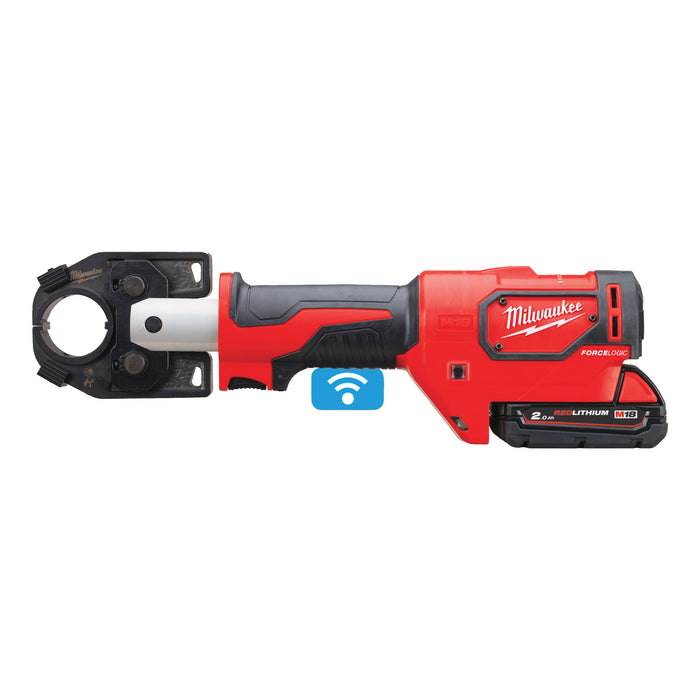

Milwaukee M18HCCT-201C L-SET 18V FORCE LOGIC™ 53kN Hydraulic Cable Crimper Kit

The Milwaukee M18HCCT-201C L-SET 18V FORCE LOGIC™ Hydraulic Cable Crimper is a professional cordless crimping solution designed for fast, accurate and consistent cable termination work. Delivering a powerful 53kN crimping force, this L-SET is supplied with 10 dies covering sizes from 16mm² to 240mm² and can complete compatible crimps in less than 3 seconds.

The specially designed jaw securely holds the connector to assist with accurate alignment between the cable and connector. Its balanced in-line construction supports comfortable one-handed operation, while the slim jaw and 350° rotating head provide excellent access and positioning in confined working areas.

Milwaukee PFM™ Predictive Force Monitoring automatically adjusts the output according to the connector to help achieve optimum crimping pressure. A green indicator provides visual confirmation, while the pre-crimp battery check automatically verifies that sufficient charge is available to complete each crimp.

The M18 HCCT also offers a versatile 2-in-1 platform, allowing the crimping jaw to be exchanged for a compatible Cu/AL cable cutting jaw. Universal die reception is designed to accept most common 60kN U-Dies (C-shaped dies) available on the market.

Integrated ONE-KEY™ technology records and stores every crimp for professional report creation through the ONE-KEY™ app and ONE-KEY™ adaptor. ONE-KEY™ also provides cloud-based tool tracking, inventory management and remote locking functionality.

All Milwaukee products, including kits, are supplied in genuine branded Milwaukee packaging. We do not supply brown-box or unboxed Milwaukee products.

Key Features

• M18™ FORCE LOGIC™ professional hydraulic cable crimper.
• Powerful 53kN crimping force.
• L-SET supplied with 10 dies covering 16mm² to 240mm².
• Completes compatible crimps in less than 3 seconds.
• Crimping jaw holds the connector to assist with accurate cable and connector alignment.
• Balanced design supports comfortable one-handed operation.
• Compact in-line construction and slim jaw improve access in confined spaces.
• 350° rotating head provides excellent positioning flexibility.
• PFM™ Predictive Force Monitoring automatically adjusts output according to the connector.
• Green indicator provides visual confirmation of crimping pressure.
• Universal die reception accepts most common 60kN U-Dies (C-shaped dies).
• 2-in-1 design allows the crimping jaw to be exchanged for a compatible Cu/AL cable cutting jaw.
• Records and stores every crimp for professional reporting.
• ONE-KEY™ reporting supported through the ONE-KEY™ app and adaptor.
• ONE-KEY™ tool tracking and security provides cloud-based inventory management.
• Remote locking functionality helps improve tool security.
• Pre-crimp battery check verifies sufficient charge before each crimp.
• Sealed electronics provide resistance against dirt, dust and moisture.
• Brushless motor, REDLITHIUM™ battery technology and REDLINK™ electronics provide excellent power, runtime and durability.
• Compatible with all MILWAUKEE® M18™ batteries.

Technical Specification

• Product Code: M18HCCT-201C L-SET
• Article Number: 4933464313
• EAN: 4058546222581
• Voltage: 18V
• Battery Type: Li-ion
• Battery Capacity: 2.0Ah
• Batteries Supplied: 1
• Crimping Force: 53kN
• Supplied Die Range: 16–240mm²
• Crimping Time: Less than 3 seconds
• Crimps Per Battery: More than 250 on a 70mm² copper connector
• Press Cycles: 30,000
• Head Rotation: 350°
• Standard Equipment: 10 dies covering 16mm² to 240mm²
• Sound Pressure Level: 74.6dB(A)
• Sound Pressure Uncertainty: 3dB(A)
• Sound Power Level: 85.6dB(A)
• Sound Power Uncertainty: 3dB(A)
• Vibration Level: 0.77m/s²
• Vibration Uncertainty: 1.5m/s²
• Weight with M18 B2 Battery: 3.7kg
• Supplied In: Milwaukee kitbox

Kit Includes

• 1 x Milwaukee M18 HCCT FORCE LOGIC™ Hydraulic Cable Crimper
• 10 x Crimping Dies covering 16mm² to 240mm²
• 1 x Milwaukee M18 B2 2.0Ah Battery
• 1 x Milwaukee M12-18 C Charger
• 1 x Milwaukee Kitbox

PFM™ Predictive Force Monitoring

Milwaukee PFM™ Predictive Force Monitoring automatically modifies the tool output according to the connector, helping to achieve optimum crimping pressure. A green indicator provides immediate visual confirmation, while the pre-crimp battery check ensures sufficient battery charge is available before starting the crimping cycle.

ONE-KEY™ Reporting, Tracking & Security

The M18 HCCT records and stores every crimp made, allowing professional reports to be created through the ONE-KEY™ app and ONE-KEY™ adaptor. ONE-KEY™ also provides cloud-based tool tracking, inventory management and remote locking functionality for professional equipment management.
