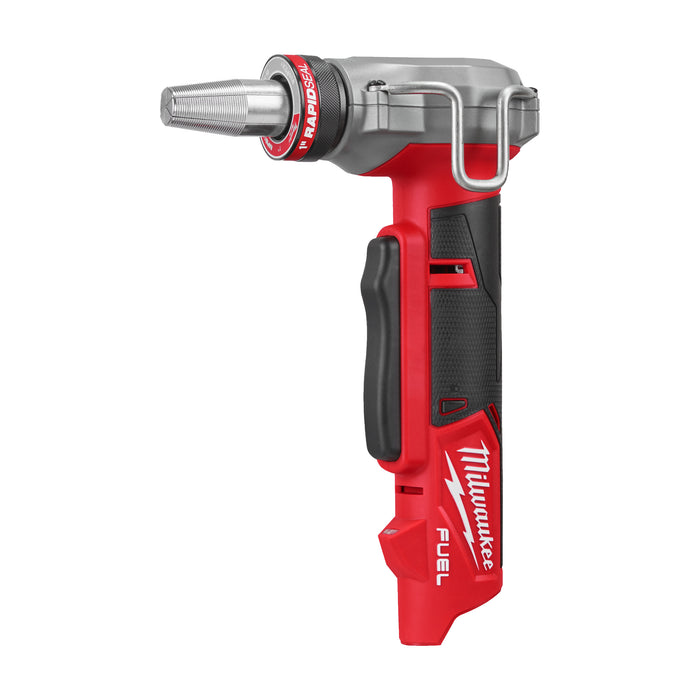

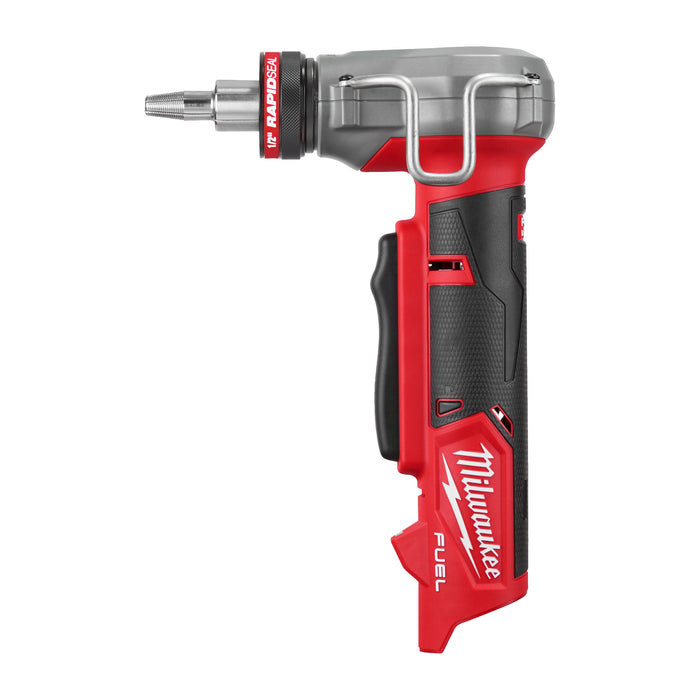

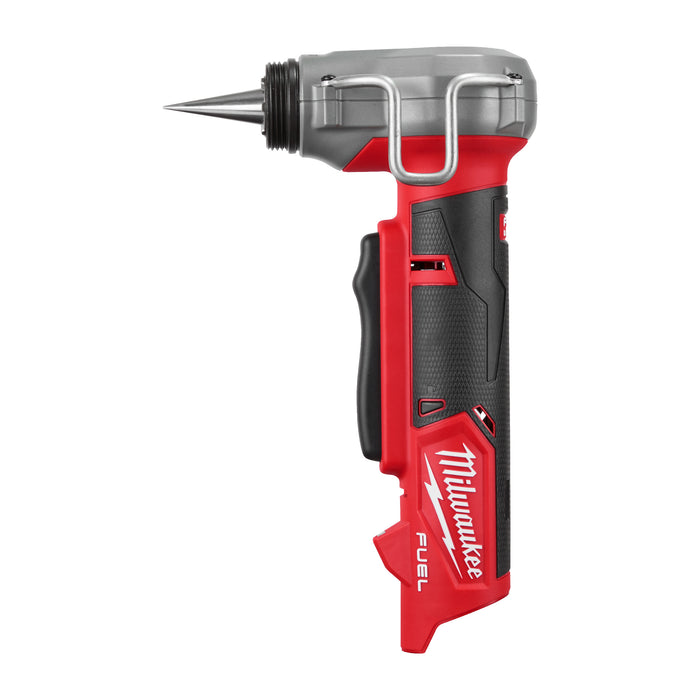

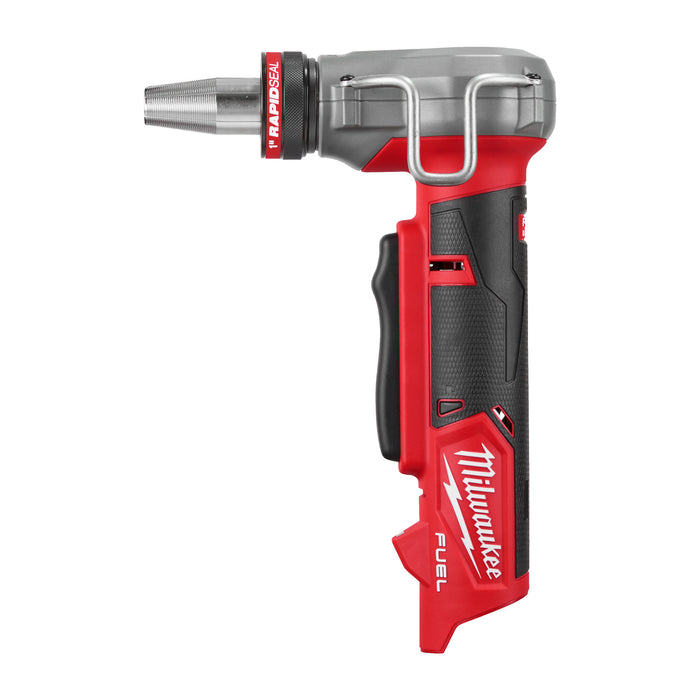

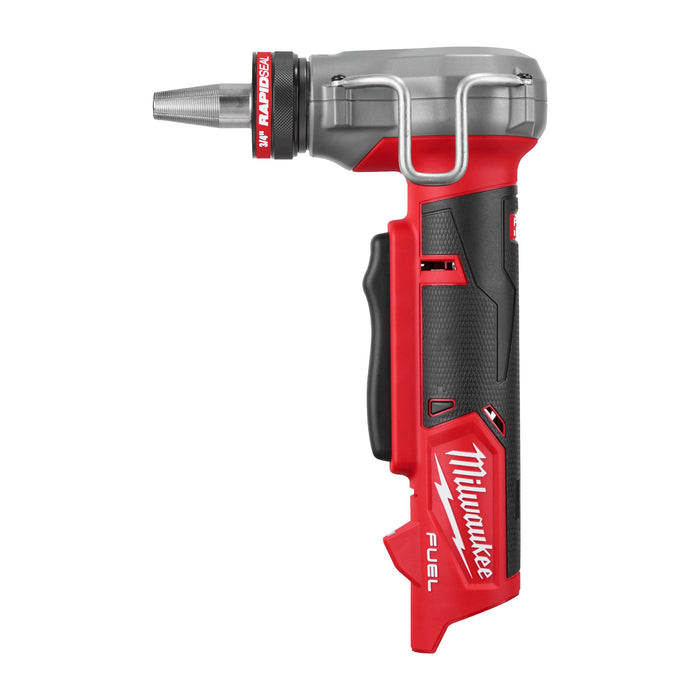

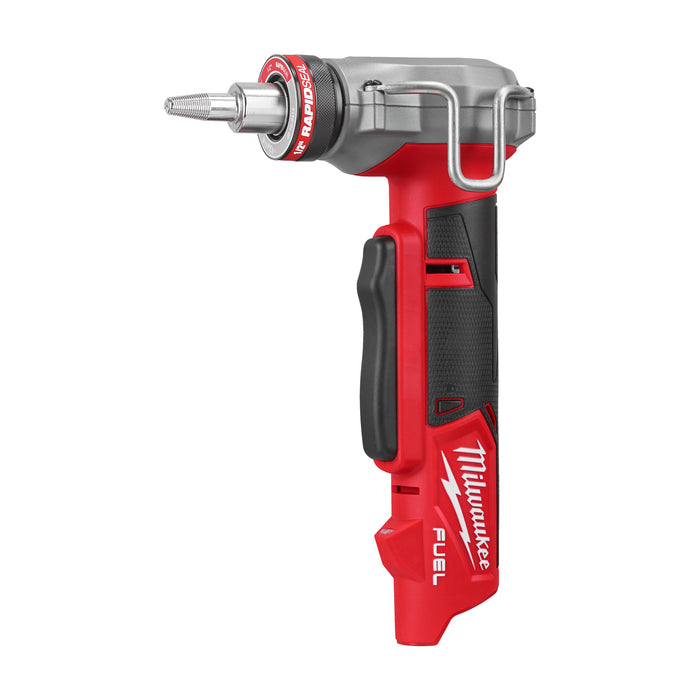

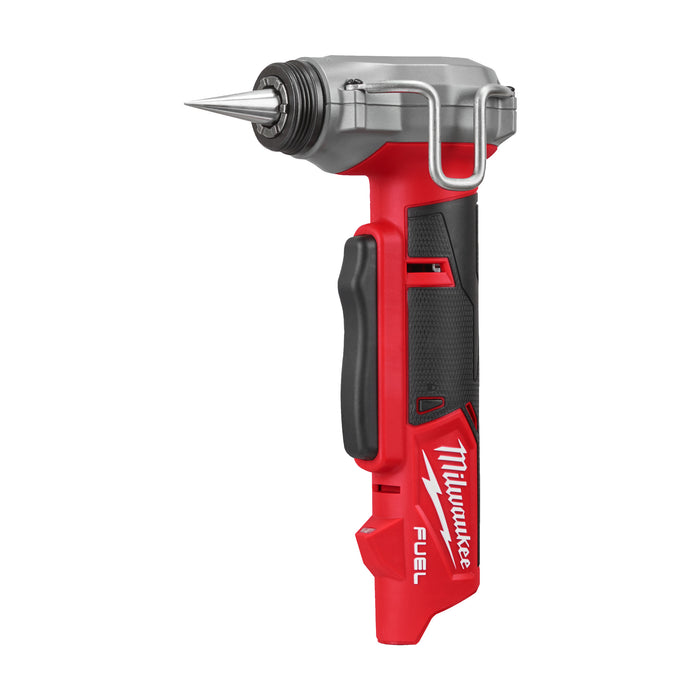

Milwaukee M12FPXP-0C 12V FUEL™ UPONOR Q&E Expansion Tool - Bare Unit
The Milwaukee M12FPXP-0C 12V FUEL™ UPONOR Q&E Expansion Tool is a compact cordless solution designed for fast, accurate and convenient installation of UPONOR Q&E pipe fittings. Its auto-rotating head supports pipe sizes from 9.9mm to 32mm at 6 bar and up to 25mm at 10 bar, providing controlled one-handed expansion for professional plumbing and heating installations.
A fast Quick Cam mechanism delivers continuous action from a single trigger pull, allowing Q&E installations to be completed up to 7 seconds faster. When used with compatible RAPID SEAL™ heads, sealing time can be improved by 20% or more depending on ambient temperature.

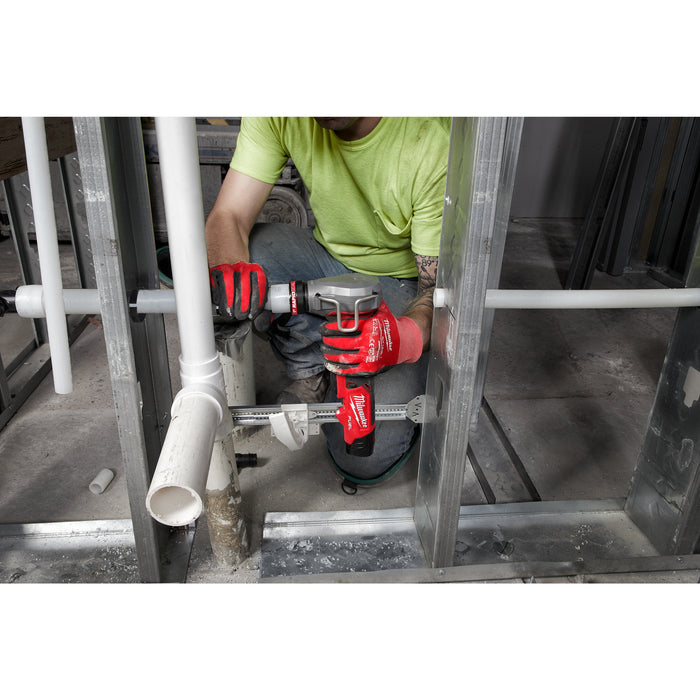

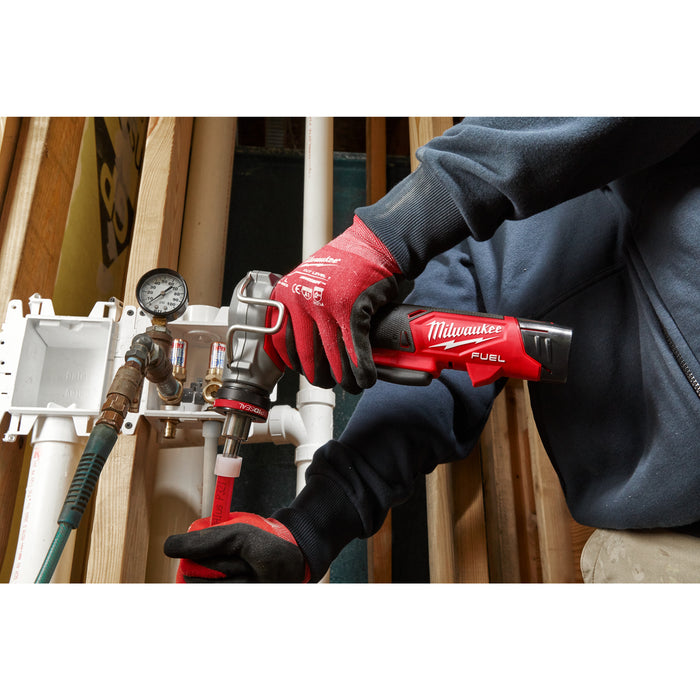

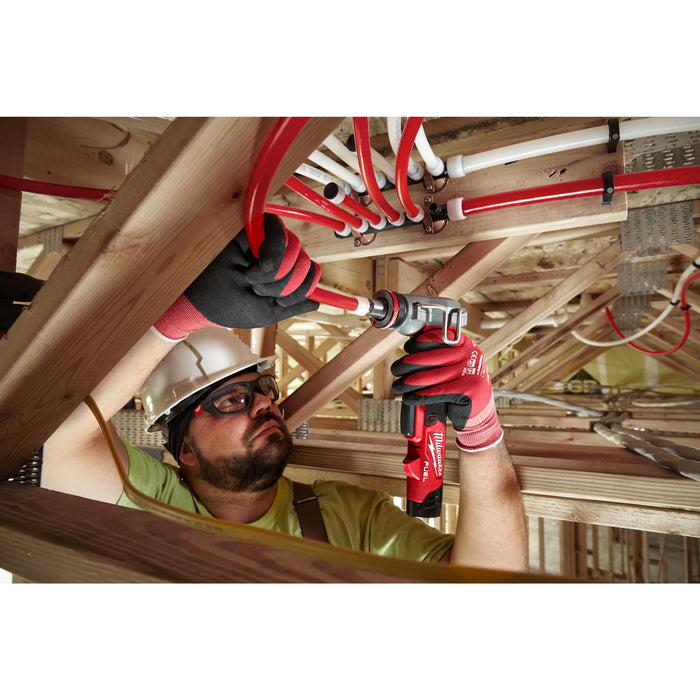

The dual-action trigger allows the expansion process to be operated from different grip positions, while the compact right-angle design makes the M12 FPXP particularly useful when installing Q&E fittings in confined or difficult-to-access areas.
Built around Milwaukee's FUEL™ platform, the tool combines a POWERSTATE™ brushless motor, REDLITHIUM™ battery technology and REDLINK PLUS™ electronic intelligence to deliver excellent power, runtime and durability. An onboard fuel gauge and LED work light provide additional convenience on site.
The tool is backwards compatible with existing compatible heads, although the improved sealing time is achieved when using the newer RAPID SEAL™ heads.
Please Note: This is a bare unit supplied in a Milwaukee kitbox with grease. Battery, charger and expansion heads are not included.
All Milwaukee products, including kits, are supplied in genuine branded Milwaukee packaging. We do not supply brown-box or unboxed Milwaukee products.
Key Features
- M12 FUEL™ sub-compact UPONOR Q&E expansion tool.
- Auto-rotating head provides accurate one-handed expansion.
- Suitable for sizes from 9.9mm to 32mm at 6 bar.
- Suitable for sizes up to 25mm at 10 bar.
- Quick Cam mechanism provides continuous action from a single trigger pull.
- Installs Q&E fittings up to 7 seconds faster.

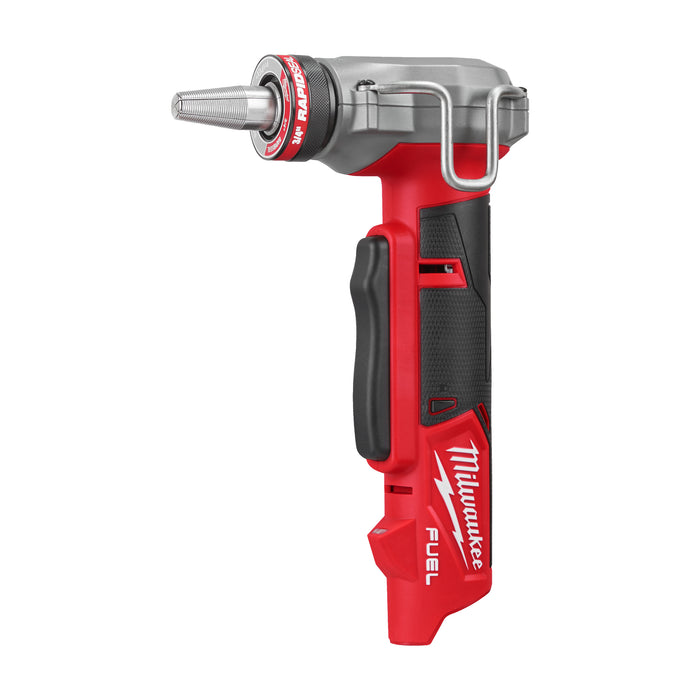

- RAPID SEAL™ heads can improve sealing time by 20% or more, depending on ambient temperature.

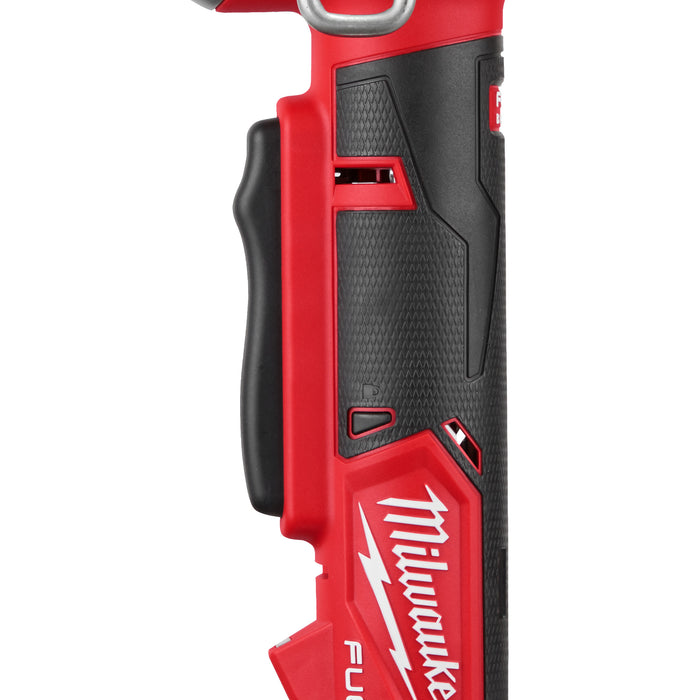

- Dual-action trigger enables expansion from different grip positions.

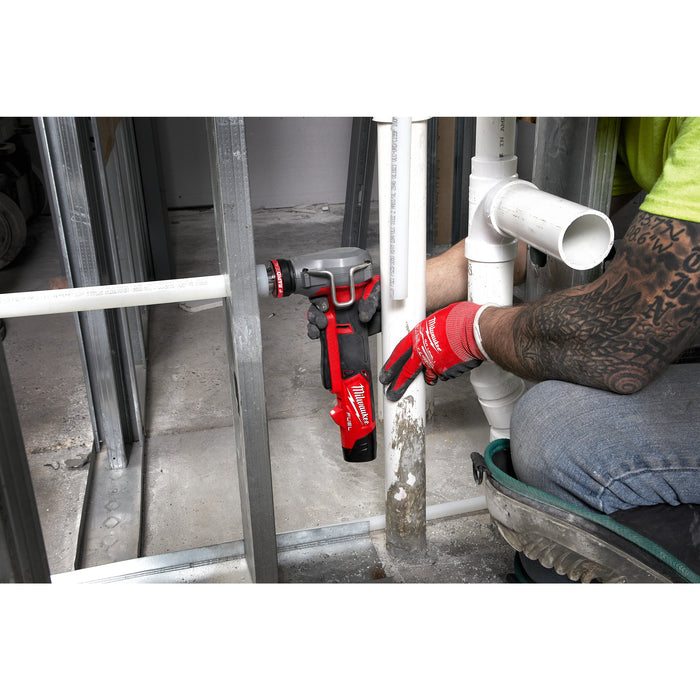

- Right-angle design improves access when working in confined spaces.
- Onboard fuel gauge provides convenient battery status information.
- Integrated LED light helps illuminate the working area.
- POWERSTATE™ brushless motor provides excellent cordless performance.
- REDLITHIUM™ battery technology provides dependable runtime and durability.
- REDLINK PLUS™ electronic intelligence provides advanced tool protection and performance.
- Compatible with all MILWAUKEE® M12™ batteries.
- Backwards compatible with existing compatible expansion heads.
Technical Specification
-
Product Code: M12FPXP-0C
-
Article Number: 4933472018
-
EAN: 4058546324148
-
Voltage: 12V
-
Battery Type: Li-ion
-
Batteries Supplied: 0
-
Maximum Pipe Size at 6 Bar: 32 x 2.9mm
-
Maximum Pipe Size at 10 Bar: 25 x 3.5mm
-
Stroke Length: 14mm
-
Standard Equipment: Grease
-
Expansion Heads Included: No
-
Sound Pressure Level: 75dB(A)
-
Sound Pressure Uncertainty: 3dB(A)
-
Sound Power Level: 86dB(A)
-
Sound Power Uncertainty: 3dB(A)
-
Vibration Level: 0.93m/s²
-
Vibration Uncertainty: 1.5m/s²
-
Weight with M12 B2 Battery: 2.2kg
-
Supplied In: Milwaukee kitbox
Supplied With
- 1 x Milwaukee M12 FPXP FUEL™ UPONOR Q&E Expansion Tool
- Grease
- 1 x Milwaukee Kitbox
Battery, charger and expansion heads are not included.

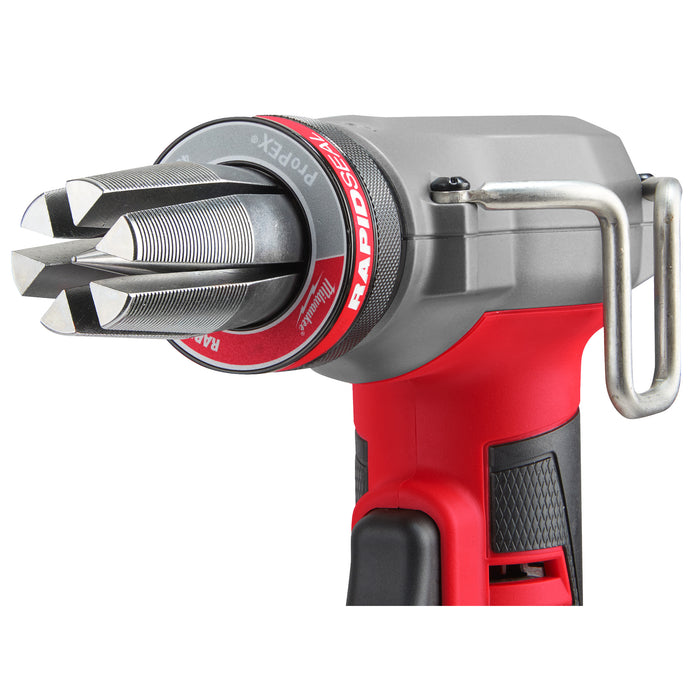

RAPID SEAL™ & Quick Cam Technology
The Quick Cam mechanism provides continuous expansion from a single trigger pull, helping complete UPONOR Q&E installations up to 7 seconds faster. Compatible RAPID SEAL™ heads can improve the time required to achieve a seal by 20% or more, depending on ambient temperature.
M12 FUEL™ Technology
The Milwaukee FUEL™ platform combines the POWERSTATE™ brushless motor, REDLITHIUM™ battery technology and REDLINK PLUS™ electronic intelligence to provide an optimised balance of power, runtime and durability for demanding professional applications.
