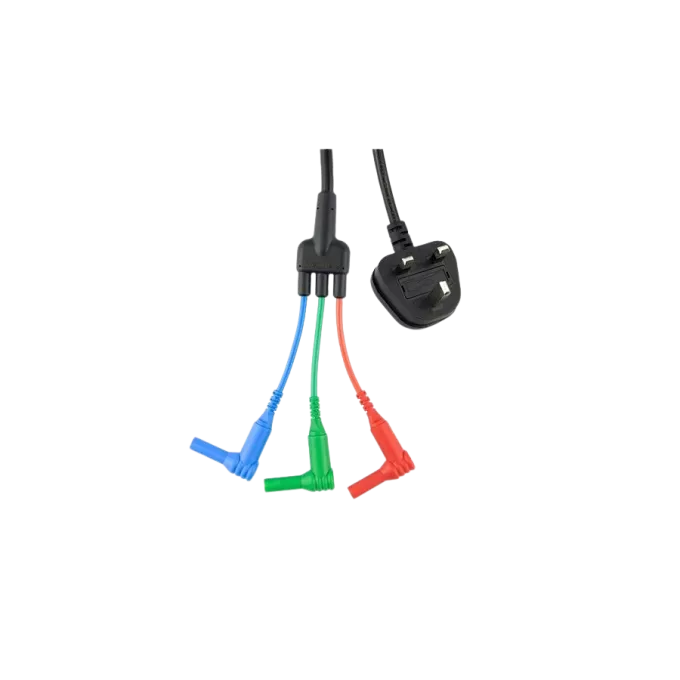

Megger SIA10 Socket Interface Adaptor UK to 3 x 4mm Test Leads
The Megger SIA10 Socket Interface Adaptor provides a safe, fast and convenient method of testing UK BS1363 13A socket outlets without removing the socket faceplate or exposing live conductors. Designed for professional electricians, it simplifies insulation resistance, continuity and loop impedance testing while reducing installation time and improving on-site safety.
Equipped with three separate colour-coded 4mm safety-shrouded plugs, the adaptor offers complete flexibility by allowing connection to any compatible tester input. Test configurations can be changed directly at the instrument, making it ideal for sockets located in awkward or restricted spaces, such as beneath desks, behind furniture or inside cupboards.
In addition to insulation and continuity testing, the SIA10 is suitable for phase-to-earth, phase-to-neutral and loop impedance testing without requiring socket disassembly. Should the adaptor be accidentally left plugged into a live socket, it remains safe with no exposed live conductors, providing added peace of mind for installers and end users.
Key Features
- Safely tests UK BS1363 13A socket outlets without removing the faceplate
- Eliminates exposure to live conductors during testing
- Three colour-coded 4mm safety-shrouded plugs for quick identification
- Suitable for insulation resistance, continuity, loop impedance and phase testing
- Reduces testing time by allowing configuration changes at the tester
- Protects socket terminals and decorative finishes from damage
- Ideal for sockets in confined or difficult-to-access locations
- Safe design remains protected if inadvertently left connected to a live supply
Technical Specifications
-
Test End: UK BS1363 13A 3-pin plug
-
Instrument End: Three colour-coded 4mm safety-shrouded plugs
-
Operating Voltage: 0 to 600V AC/DC (0–1kHz)
-
Operating Temperature: -10°C to +50°C
-
Safety Rating: IEC/EN 61010-1:2001-02, CAT II 300V
-
Lead Length: 1.48m
-
Weight: 230g
-
Warranty: 1 Year
Applications
The Megger SIA10 is ideal for professional electrical installation testing in domestic, commercial and industrial environments. It enables safe testing of insulation resistance, continuity, phase-to-earth, phase-to-neutral and loop impedance on UK 13A socket outlets while avoiding unnecessary socket removal.
Downloads
Data Sheet:
Download the Megger SIA10 Data Sheet
Instruction Manual:
Download the Megger SIA10 Instruction Manual
