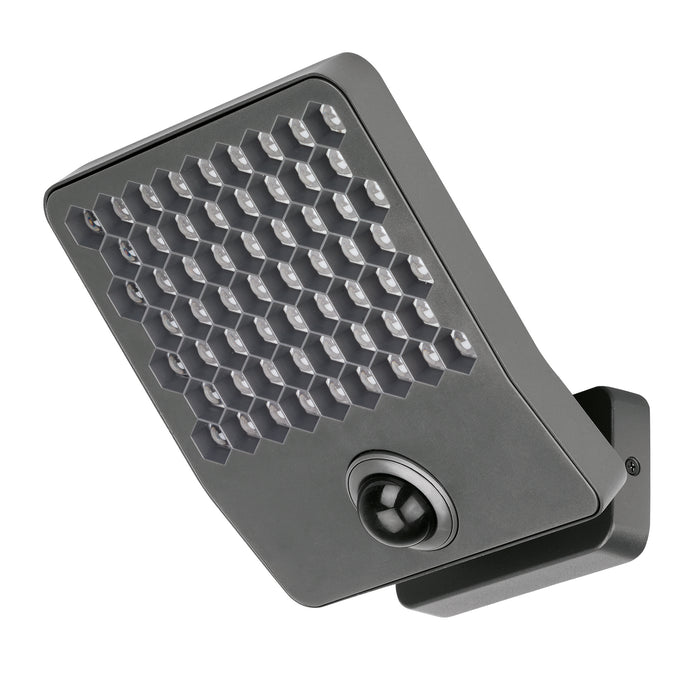

Lutec 7801604118 Atlantis 24W IP54 LED Anti-Glare Floodlight with PIR Sensor – 4000K Dark Grey
The Lutec Atlantis PIR LED Floodlight combines powerful illumination, intelligent motion detection and advanced anti-glare technology to create a premium outdoor security lighting solution. Delivering an impressive 3200 lumens of bright 4000K cool white light, this high-performance floodlight is ideal for improving visibility and security around residential and commercial properties.

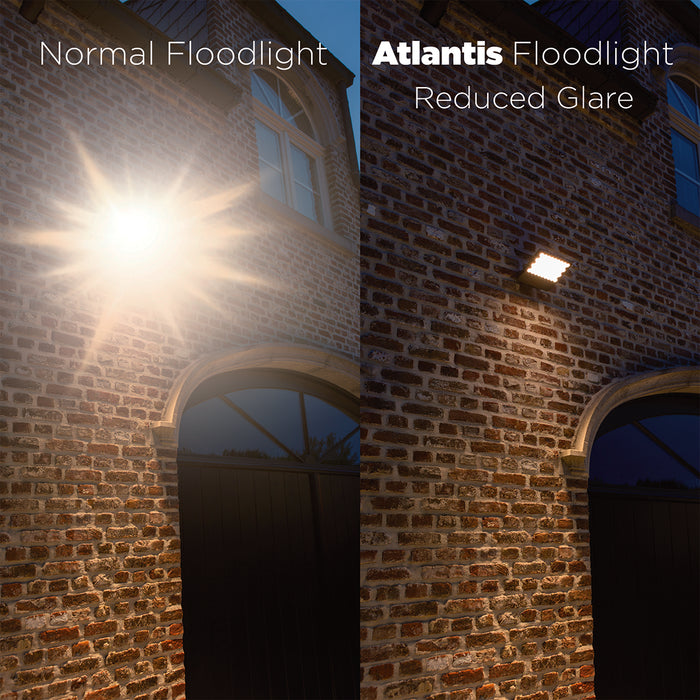

Featuring a specialist honeycomb lens design, the Atlantis reduces glare while maintaining a broad and evenly distributed light output. This ensures enhanced visual comfort without compromising performance, making it perfect for driveways, patios, pathways, gardens, entrances and larger outdoor spaces.

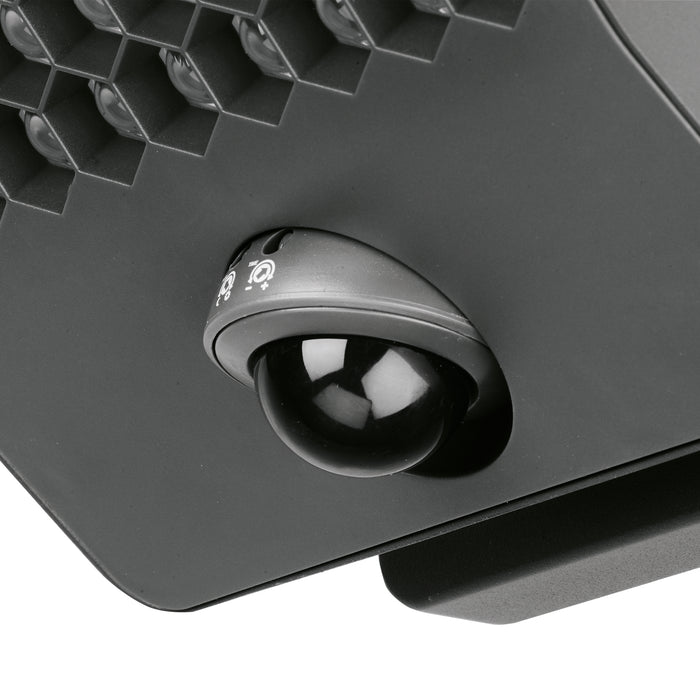

The integrated PIR motion sensor provides reliable automatic activation with a wide 180° detection angle and an impressive detection range of up to 18 metres. Adjustable time and lux settings allow you to tailor operation to suit your environment, while the manual override function provides continuous illumination whenever required.
Constructed from heavy-duty aluminium and finished in a modern dark grey colour, the Atlantis is built to withstand year-round outdoor conditions. The IP54-rated housing offers dependable protection against dust and water ingress, while loop-in/loop-out fast-fit connectors simplify installation and reduce wiring time.
Key Features
- LED floodlight with integrated PIR motion sensor
- Anti-glare honeycomb lens technology
- Powerful 3200-lumen output
- 4000K cool white illumination
- Integrated energy-efficient LED technology
- Wide and even light distribution
- 180° PIR detection angle
- Up to 18m motion detection range
- Adjustable time and lux settings
- Manual override function
- Heavy-duty aluminium construction
- Modern dark grey finish
- Clear polycarbonate diffuser
- Loop-in/loop-out fast-fit connectors
- IP54 weather-resistant protection
- 5-year manufacturer's warranty
Technical Specification
- Manufacturer: Lutec
- Part Number: 7801604118
- Product Range: Atlantis
- Fixture Type: LED Floodlight with PIR
- Light Source: Integrated LED
- Power Consumption: 24W
- Fixture Light Output: 3200 Lumens
- Module Light Output: 3950 Lumens
- Colour Temperature: 4000K Cool White
- CRI: 80
- IP Rating: IP54
- Electrical Class: Class I
- Supply Voltage: 220–240V AC
- Operating Temperature: -20°C to +50°C
- Finish: Dark Grey
- Fixture Material: Heavy-Duty Aluminium
- Diffuser Material: Clear Polycarbonate
- Width: 201mm
- Projection: 224mm
- Height: 124mm
- EAN: 6939412016412
PIR Sensor Specification
- Detection Angle: 180°
- Detection Distance: Up to 18 metres
- Adjustable Settings: Time and Lux
- Light Duration Adjustment: 10 seconds to 8 minutes
- Manual Override: Yes
Ideal Applications
Perfect for driveways, gardens, pathways, patios, garages, entrances, side access routes, commercial premises, warehouses, storage areas and security lighting installations requiring powerful motion-activated illumination.
Why Choose the Lutec Atlantis PIR Floodlight?
The Atlantis PIR combines high-output LED performance, anti-glare technology and intelligent motion sensing to provide exceptional outdoor security lighting. Its durable construction, adjustable settings and installer-friendly design make it an ideal solution for properties requiring reliable and efficient illumination.
Key Benefits
- Powerful 3200-lumen output for larger outdoor spaces
- Anti-glare honeycomb lens improves visual comfort
- Long-range PIR detection up to 18 metres
- Customisable motion sensor settings for flexible operation
- Durable weather-resistant construction with simplified installation
