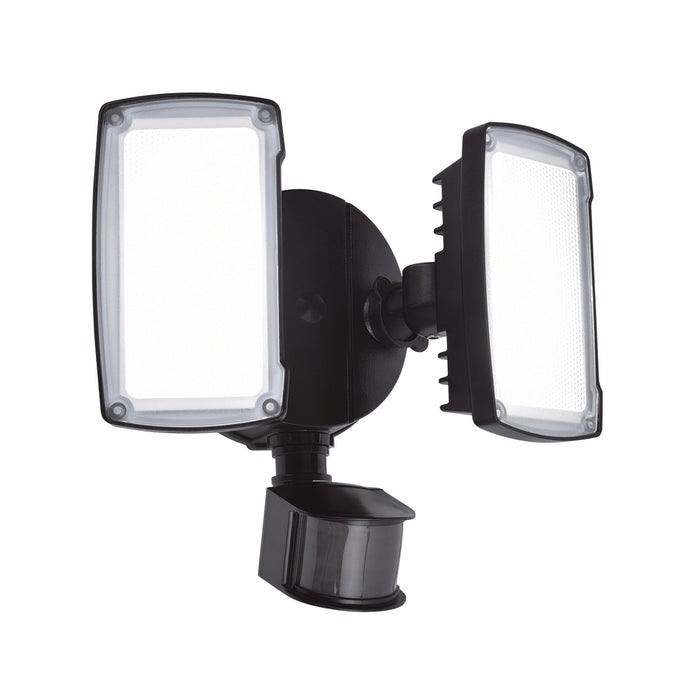

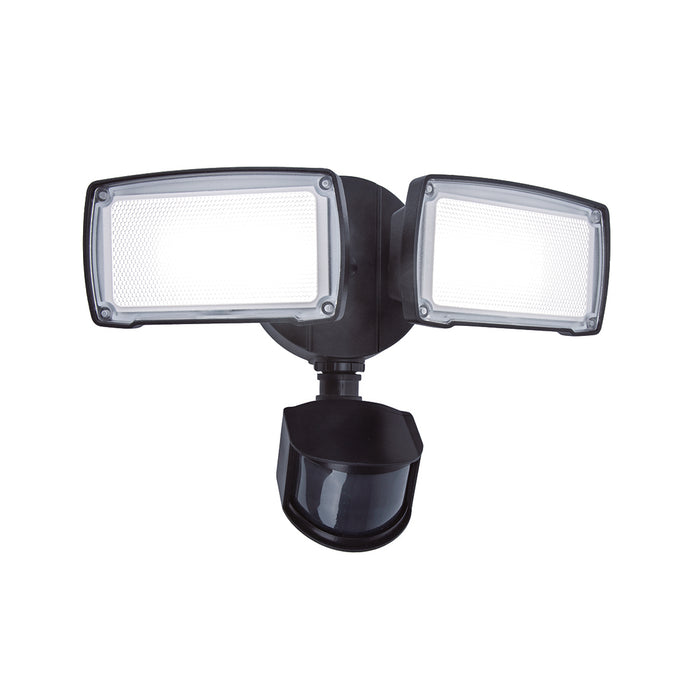

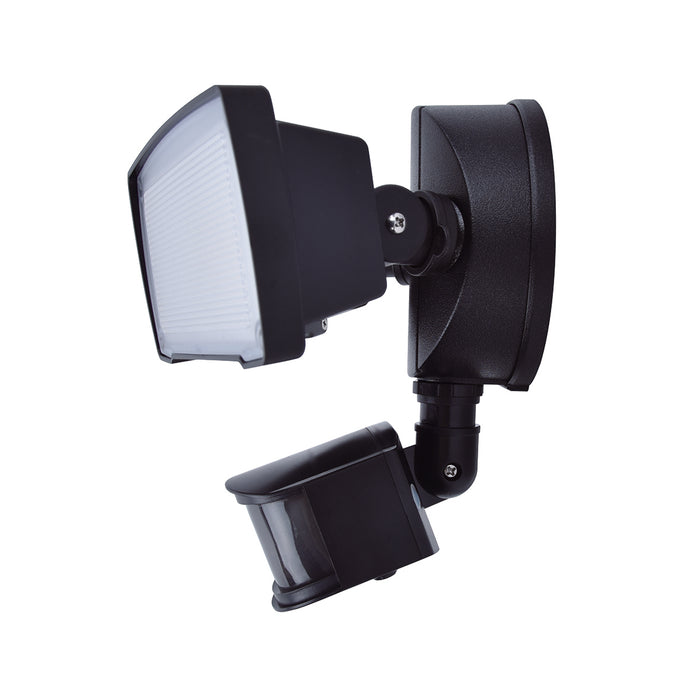

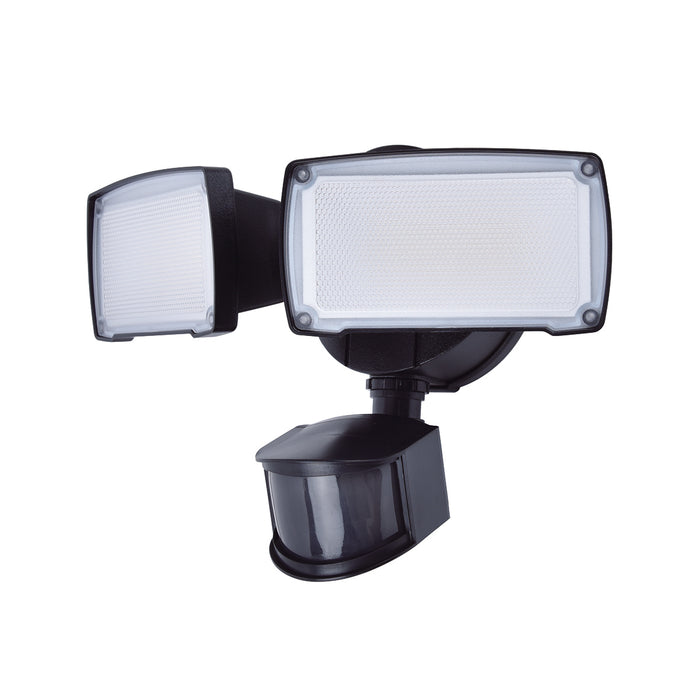

Lutec 7635432330 Chimera 21W IP54 LED Twin Head Floodlight with PIR Sensor – 5000K Matt Black
The Lutec Chimera PIR Twin Head LED Floodlight is a powerful outdoor security lighting solution that combines bright illumination with advanced motion detection. Featuring two independently adjustable LED light heads and an integrated PIR sensor, the Chimera provides flexible, targeted lighting for driveways, gardens, pathways, entrances and commercial premises.
Equipped with high-performance integrated LEDs, the Chimera delivers an impressive 2350 lumens of crisp 5000K daylight white light, providing exceptional visibility and security after dark. Each floodlight head can be individually adjusted, allowing you to direct light precisely where it is needed for maximum coverage and efficiency.
The built-in PIR motion sensor offers an extended detection range of up to 18 metres with a wide 180° detection angle, making it ideal for monitoring larger outdoor areas. Adjustable sensor settings allow you to customise detection distance and illumination duration, while the manual override function provides continuous lighting when required.
Constructed from durable synthetic materials and fitted with clear polycarbonate diffusers, the Chimera is built to withstand outdoor conditions while maintaining excellent light transmission and long-term reliability.
Key Features
- Twin-head LED floodlight with integrated PIR sensor
- Independently adjustable light heads
- Powerful 2350-lumen output
- 5000K daylight white illumination
- Integrated energy-efficient LED technology
- Wide 180° PIR detection angle
- Up to 18m motion detection range

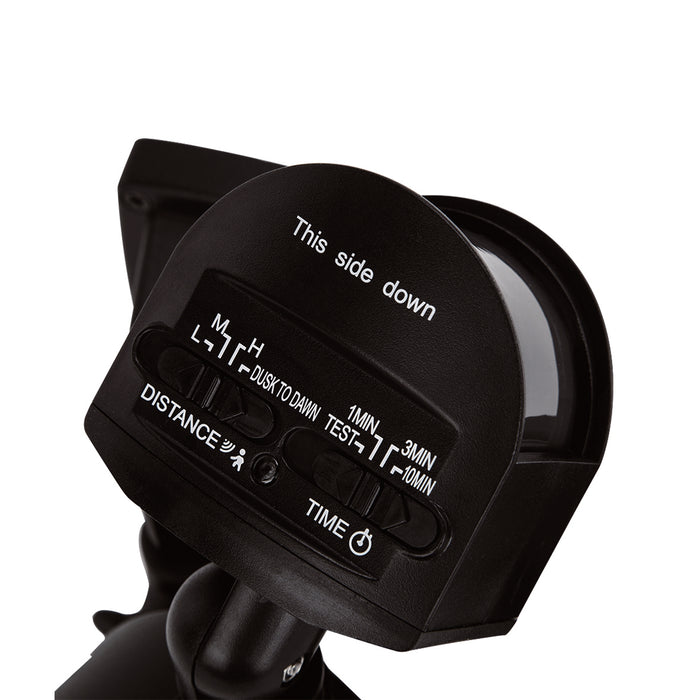

- Adjustable PIR sensor settings
- Manual override function
- PIR time adjustment: 1, 3 or 10 minutes
- Modern matt black finish
- Clear polycarbonate diffusers
- Ideal for security and perimeter lighting
- IP54 weather-resistant protection
- 5-year manufacturer's warranty
Technical Specification
- Manufacturer: Lutec
- Part Number: 7635432330
- Product Range: Chimera
- Fixture Type: Twin Head Floodlight with PIR
- Light Source: Integrated LED
- Power Consumption: 21W
- Fixture Light Output: 2350 Lumens
- Module Light Output: 3000 Lumens
- Colour Temperature: 5000K Daylight White
- CRI: 80
- IP Rating: IP54
- Electrical Class: Class II
- Supply Voltage: 220–240V AC
- Operating Temperature: -20°C to +50°C
- Finish: Matt Black
- Fixture Material: Synthetic
- Diffuser Material: Clear Polycarbonate
- Width: 266mm
- Projection: 146mm
- Height: 190mm
- EAN: 6939412016184
PIR Sensor Specification
- Detection Angle: 180°
- Detection Distance: Up to 18m
- Adjustable Settings: Time and Detection Distance
- PIR Time Adjustment: 1, 3 or 10 minutes
- Manual Override: Yes
Ideal Applications
Perfect for driveways, garages, gardens, pathways, loading areas, side access routes, warehouses, commercial premises, entrances and security lighting installations where wide-area motion-activated illumination is required.
Why Choose the Lutec Chimera PIR Floodlight?
The Chimera PIR combines powerful daylight-white illumination, adjustable twin-head flexibility and long-range motion detection to deliver comprehensive outdoor security lighting. Its robust design, adjustable settings and energy-efficient LED technology make it an excellent choice for both residential and commercial applications.
Key Benefits
- Long-range PIR detection up to 18 metres
- Twin adjustable heads for customised light coverage
- Bright 2350-lumen daylight white illumination
- Ideal for security and large-area lighting applications
- Durable, low-maintenance LED technology
