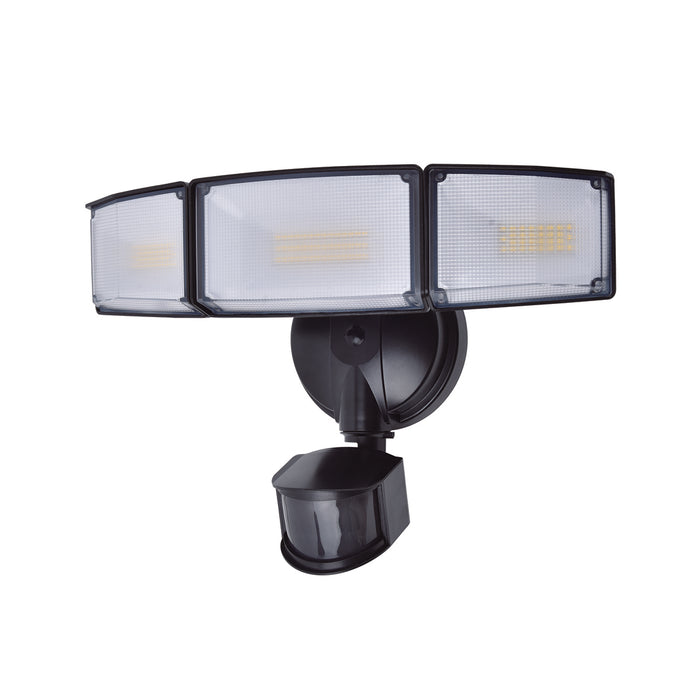

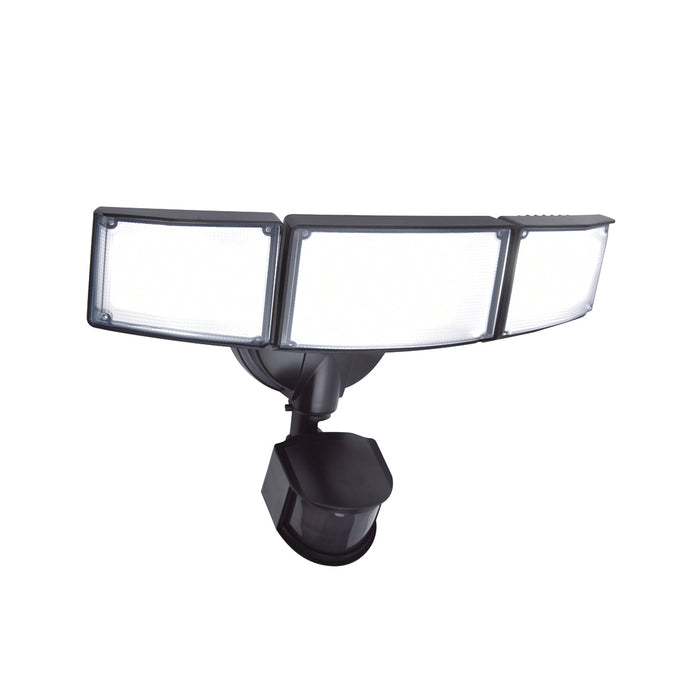

Lutec 7632817012 Tri Guard 23W IP54 LED Triple Head Floodlight with PIR Sensor – 5000K Black

The Lutec Tri Guard LED Security Floodlight is a powerful and intelligent outdoor lighting solution designed to maximise security, visibility and flexibility. Featuring a distinctive triple-head design with integrated PIR motion detection, this high-performance floodlight provides exceptional coverage for residential, commercial and industrial environments.

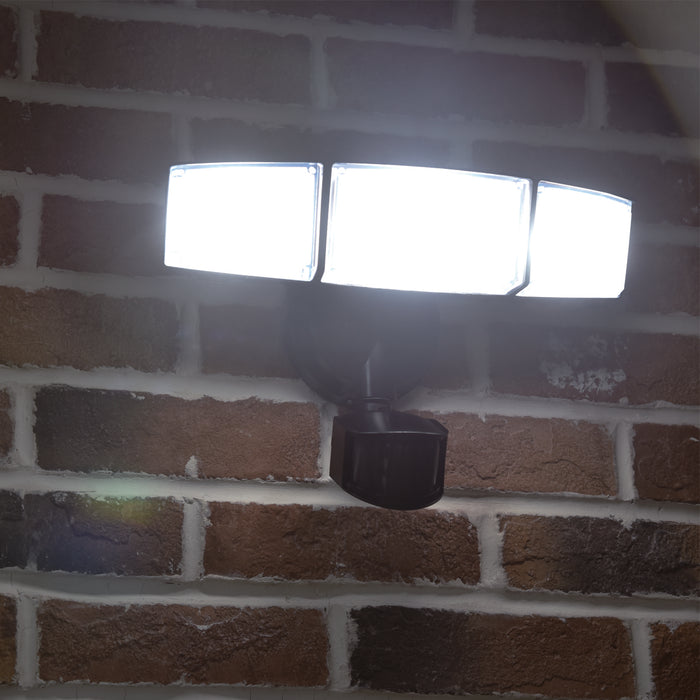

Delivering an impressive 2900 lumens of bright 5000K daylight white illumination, the Tri Guard ensures excellent visibility across driveways, gardens, pathways, entrances, loading areas and building perimeters. Its multiple adjustable light heads allow you to direct light precisely where it is needed, creating wider coverage than traditional single-head floodlights.

The integrated PIR motion sensor offers an impressive detection range of up to 21 metres with a wide 180° detection angle, providing reliable activation when movement is detected. Adjustable sensor settings allow customisation of detection distance and illumination duration, while the manual override function enables continuous operation when required.

Manufactured from heavy-duty aluminium and fitted with durable clear diffusers, the Tri Guard is built to withstand demanding outdoor conditions. The IP54 weather-resistant rating ensures dependable year-round performance, while integrated LED technology delivers low maintenance operation and excellent energy efficiency.

Key Features

• Triple-head LED security floodlight
• Integrated PIR motion sensor
• Powerful 2900-lumen output
• 5000K daylight white illumination
• Wide-area lighting coverage

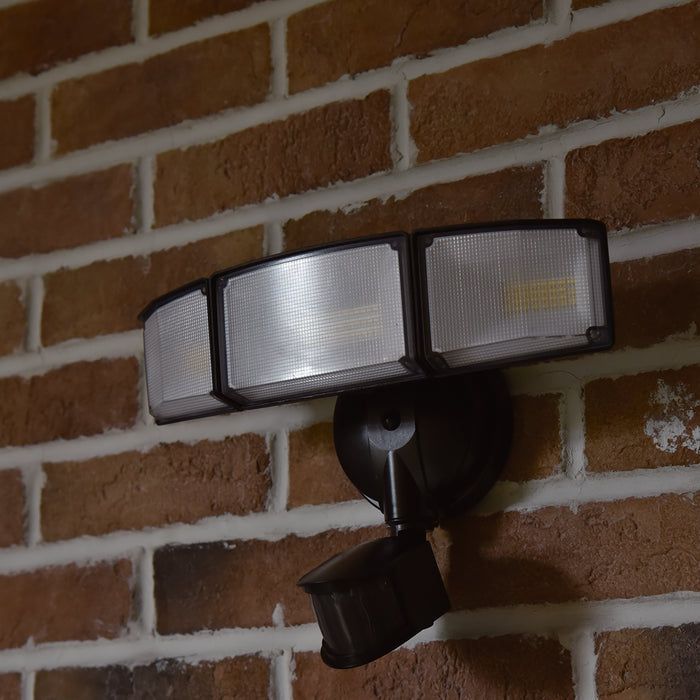

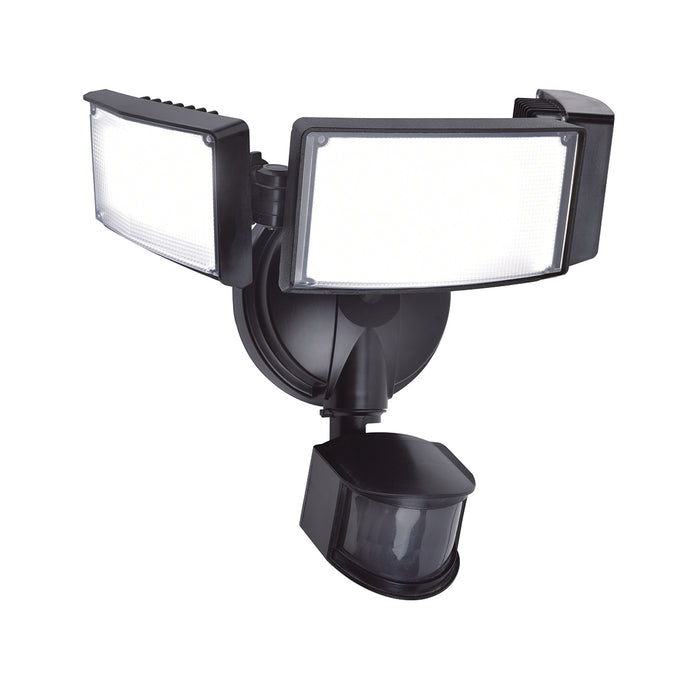

• Adjustable floodlight heads
• Integrated energy-efficient LED technology
• 180° PIR detection angle
• Up to 21m detection range
• Adjustable time and distance settings
• Manual override function
• PIR time settings of 1, 3 or 10 minutes
• Heavy-duty aluminium construction
• IP54 weather-resistant protection
• 5-year manufacturer's warranty

Technical Specification

• Manufacturer: Lutec
• Part Number: 7632817012
• Product Range: Tri Guard
• Fixture Type: LED Floodlight with PIR
• Light Source: Integrated LED
• Power Consumption: 23W
• Light Output: 2900 Lumens
• Colour Temperature: 5000K Daylight White
• CRI: 80
• Energy Efficiency Class: D
• IP Rating: IP54
• Electrical Class: Class I
• Supply Voltage: 220–240V AC
• Operating Temperature: -20°C to +50°C
• Finish: Black
• Fixture Material: Heavy-Duty Aluminium
• Diffuser Material: Clear Glass
• Width: 330mm
• Projection: 130mm
• Height: 205mm
• EAN: 6939412017099

PIR Sensor Specification

• Detection Angle: 180°
• Detection Distance: Up to 21 metres

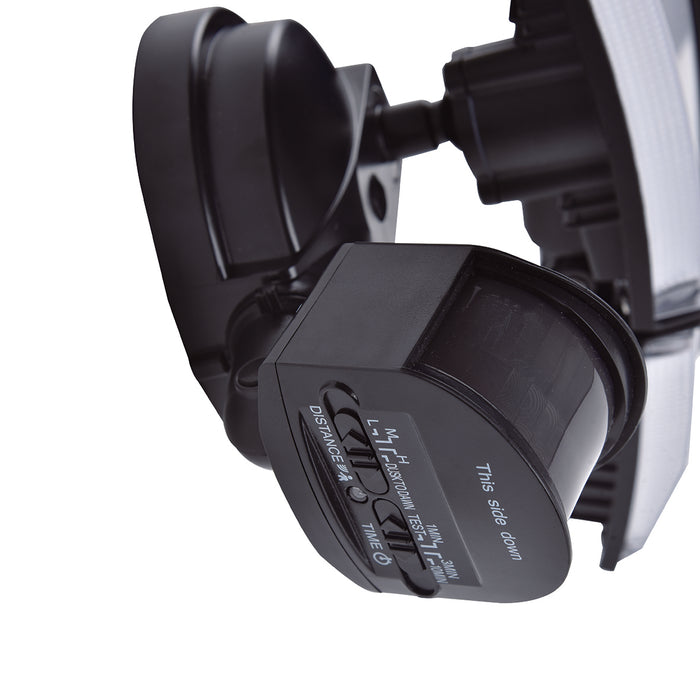

• Adjustable Settings: Time and Detection Distance
• PIR Time Adjustment: 1, 3 or 10 minutes
• Manual Override: Yes

Ideal Applications

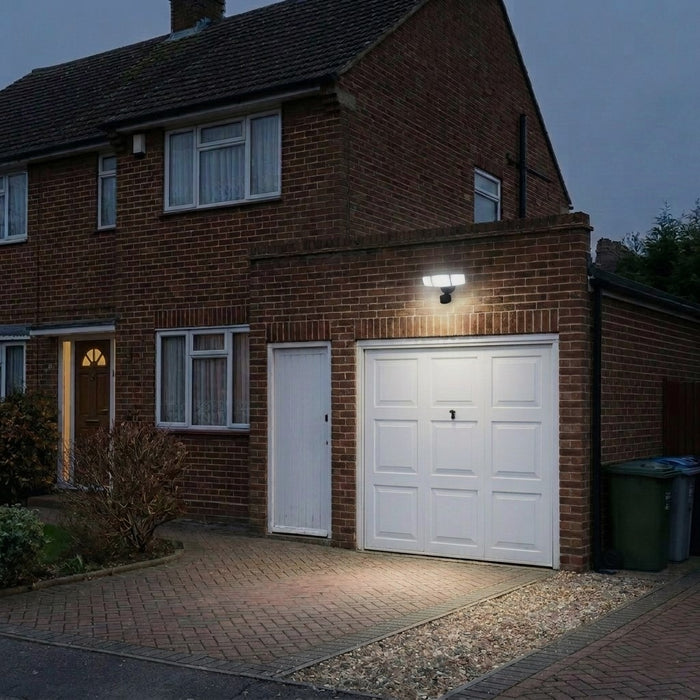

Perfect for driveways, garages, warehouses, loading bays, commercial premises, side access routes, building perimeters, gardens, workshops, storage facilities and security lighting installations requiring wide-area motion-activated illumination.

Why Choose the Lutec Tri Guard Floodlight?

The Tri Guard combines powerful daylight-white illumination, long-range motion detection and versatile triple-head coverage in one robust security lighting solution. Its durable construction, adjustable settings and impressive detection capabilities make it ideal for properties where enhanced security and visibility are essential.

Key Benefits

• Triple-head design provides wider light coverage
• Powerful 2900-lumen daylight white illumination
• Long-range PIR detection up to 21 metres
• Adjustable sensor settings for customised operation
• Durable weather-resistant construction for year-round use
