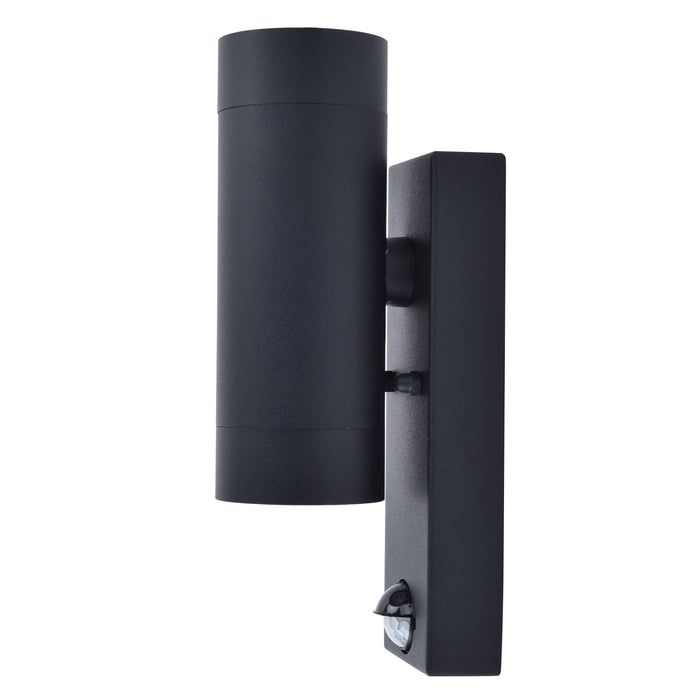

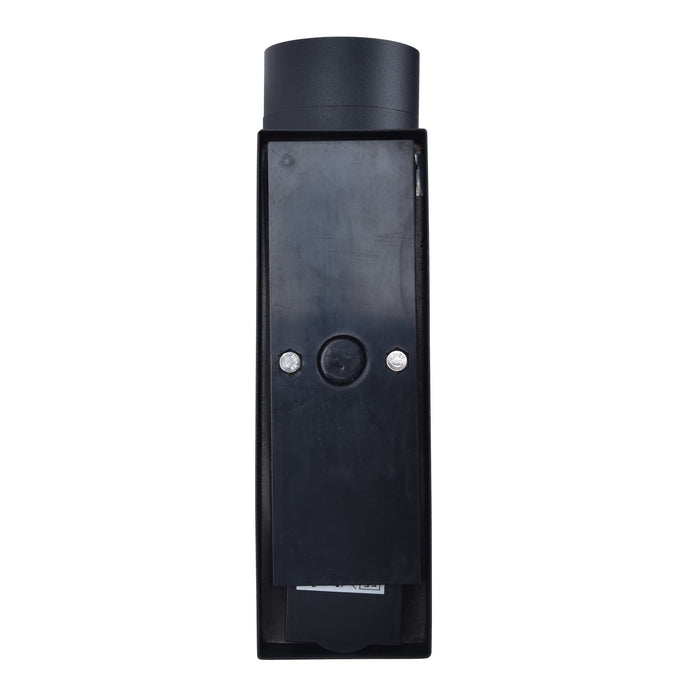

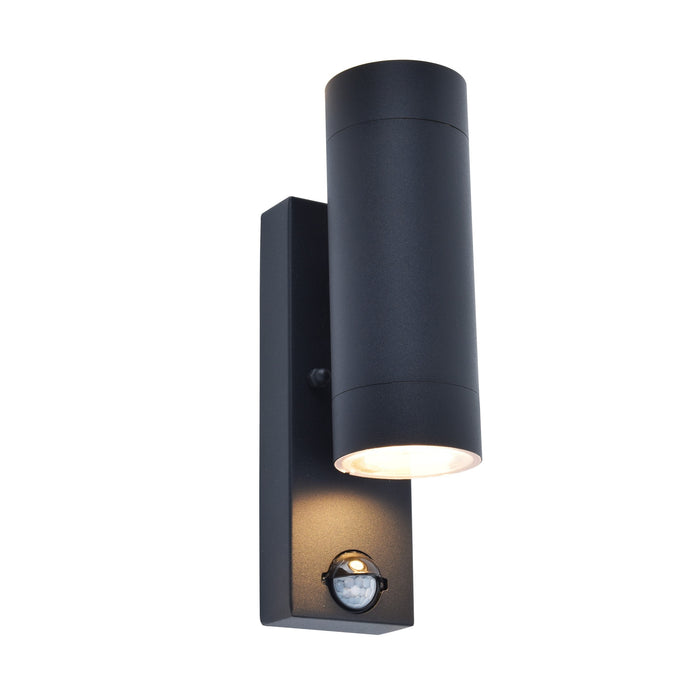

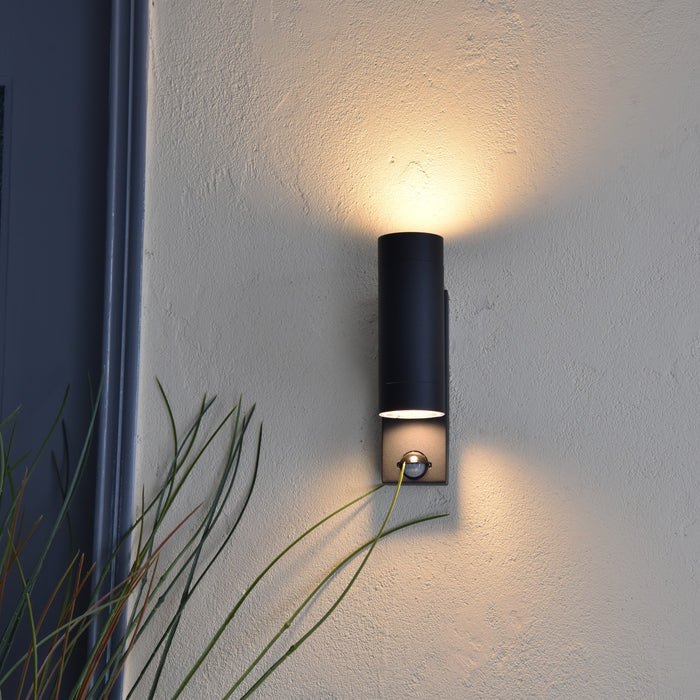

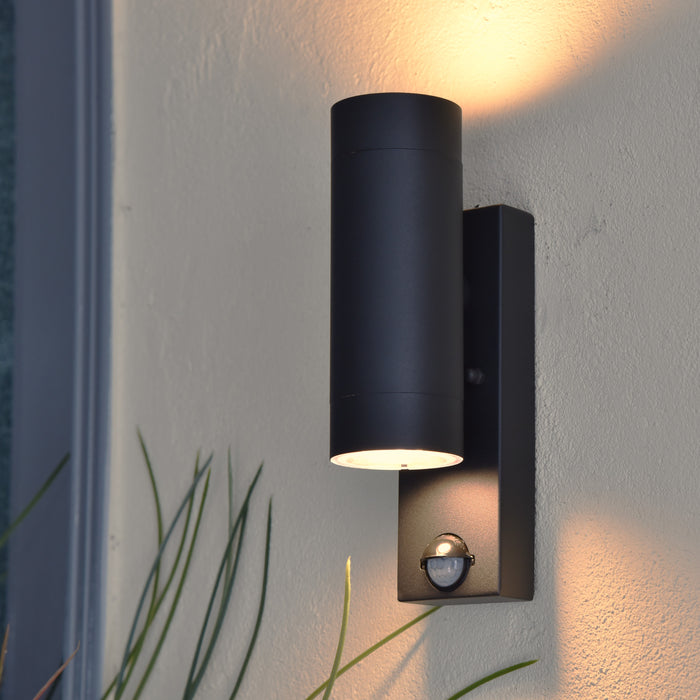

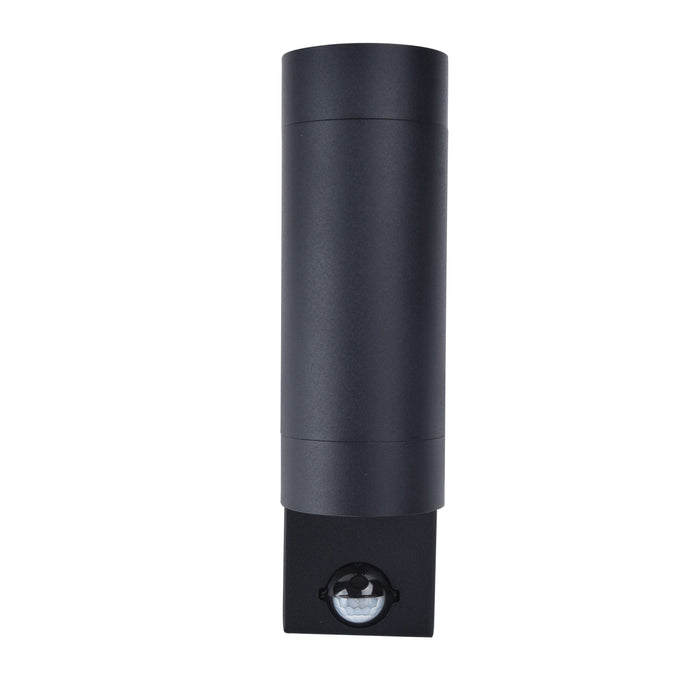

Lutec 5510809424 Rado IP44 GU10 Outdoor Up & Down Wall Light with PIR – Graphite

The Lutec Rado Outdoor Up & Down Wall Light with PIR sensor combines elegant architectural lighting with intelligent motion detection. Finished in a premium graphite black coating, this stylish outdoor wall light enhances building façades with striking up and down illumination while providing added security and convenience through automatic motion-activated operation.

Constructed from high-quality stainless steel, the Rado delivers exceptional durability and long-lasting outdoor performance. Its twin GU10 lamp holders create an attractive wall-washing effect that beautifully highlights textured surfaces such as stone, brickwork and decorative cladding. For even greater visual impact, the fitting can be paired with coloured GU10 LED lamps or RGB colour-changing lamps.

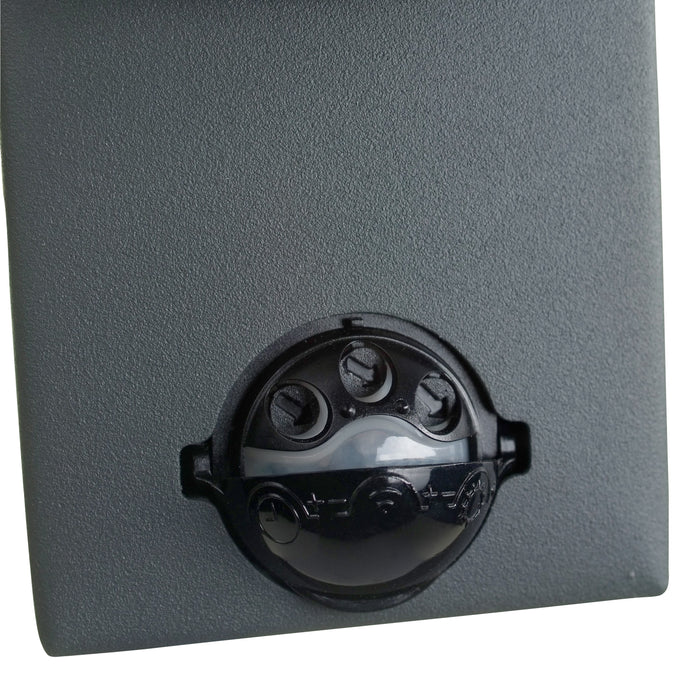

The integrated PIR motion sensor features adjustable detection range, lux sensitivity and illumination duration settings, allowing the light to be tailored to suit different environments and seasonal conditions. A manual override function is also included, providing continuous illumination whenever required.

Key Features

• Outdoor up and down wall light with integrated PIR motion sensor
• Compatible with 2 x GU10 LED lamps
• Lamps not included
• Maximum lamp wattage: 2 x 7W
• Premium graphite black finish
• Constructed from high-quality stainless steel
• Creates attractive architectural up and down lighting effects
• Suitable for coloured and RGB GU10 lamps
• Integrated PIR sensor for automatic security lighting
• 120° detection angle
• Adjustable detection range from 4m to 8m
• Adjustable timer, lux and detection settings
• Manual override function included
• IP44-rated weather-resistant protection
• 5-year manufacturer's warranty

Technical Specification

• Manufacturer: Lutec
• Part Number: 5510809424
• Product Range: Rado
• Fixture Type: Outdoor Wall Light
• Lamp Type: 2 x GU10
• Number of Lamps: 2
• Maximum Lamp Wattage: 2 x 7W
• Lamps Included: No
• IP Rating: IP44
• Electrical Class: Class I
• Supply Voltage: 220–240V AC
• Operating Temperature: -20°C to +50°C
• Detection Angle: 120°
• Detection Distance: Adjustable from 4m to 8m
• Sensor Adjustment: Time, Distance and Lux
• Manual Override: Yes
• Finish: Graphite Black
• Fixture Material: Stainless Steel
• Diffuser Material: Clear Polycarbonate
• Width: 60mm
• Depth: 100mm
• Height: 220mm

Ideal Applications

Perfect for entrances, driveways, patios, porches, pathways, garden walls and commercial building exteriors where decorative architectural lighting and motion-activated security illumination are required.

Why Choose the Lutec Rado PIR Graphite?

The Rado PIR combines premium design, durable construction and intelligent sensor technology in one stylish fitting. Its adjustable PIR settings, elegant graphite finish and architectural up and down lighting effect make it an excellent choice for modern outdoor spaces.

Key Benefits

• Motion-activated lighting improves security and convenience
• Adjustable detection range, timer and lux settings
• Creates striking up and down wall illumination
• Premium stainless steel construction with graphite finish
• Compatible with standard, coloured and RGB GU10 lamps
