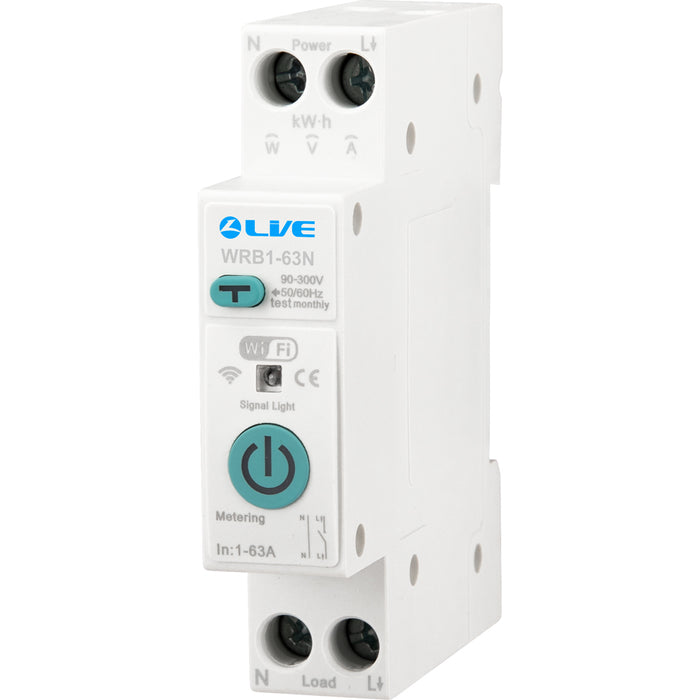

LIVE Electrical WRB1-63N WiFi Metering Switch with VA & RCD Protection

The LIVE Electrical WRB1-63N WiFi Metering Switch is an intelligent DIN rail mounted protection device that combines remote switching, energy monitoring and advanced electrical safety features within a compact single-module design. Suitable for residential, commercial and light industrial installations, it provides integrated kWh energy metering, residual current (RCD) protection, under and over voltage protection, overload protection and overcurrent trip functionality.

Designed with a 1P+N double pole configuration, the WRB1-63N enables users to remotely monitor and control electrical circuits using a compatible mobile app. Real-time electricity consumption data, programmable timing schedules and multiple protection functions help improve energy efficiency while safeguarding connected equipment from electrical faults.

Key Features

• Current rating: 1A-63A
• 1P+N single module, double pole design
• WiFi communication protocol as standard
• Optional SigMesh and ZigBee customisation
• Rated operating voltage: 100-240V AC
• Integrated kWh energy metering with real-time electricity monitoring
• Residual current (RCD) leakage protection
• Under voltage and over voltage protection
• Overcurrent trip and overload protection
• Remote control via compatible mobile app
• Manual switching operation
• Programmable timer and scheduling functions
• DIN rail mounting for quick and simple installation
• Manufactured to IEC 60947
• IP20 rated enclosure

Applications

The LIVE Electrical WRB1-63N is ideal for smart electrical installations where remote control, energy monitoring and enhanced circuit protection are required, including:

• Residential consumer units
• Commercial electrical systems
• Industrial control panels
• Smart home automation
• Energy monitoring and management systems

Technical Specifications

• Manufacturer: LIVE Electrical
• Model: WRB1-63N
• Current Rating: 1-63A
• Voltage Rating: 100-240V AC
• Pole Configuration: 1P+N (N Pole Pass-through)
• Communication: WiFi (Default)
• Control Method: Mobile App & Manual
• Mounting: DIN Rail
• Protection Functions: Residual Current (RCD), Leakage Current, Overcurrent, Overload, Under Voltage & Over Voltage Protection
• Ingress Protection: IP20
• Standard: IEC 60947

LIVE Electrical Catalogue

For further product information and the complete LIVE Electrical range, please refer to the manufacturer's catalogue.
