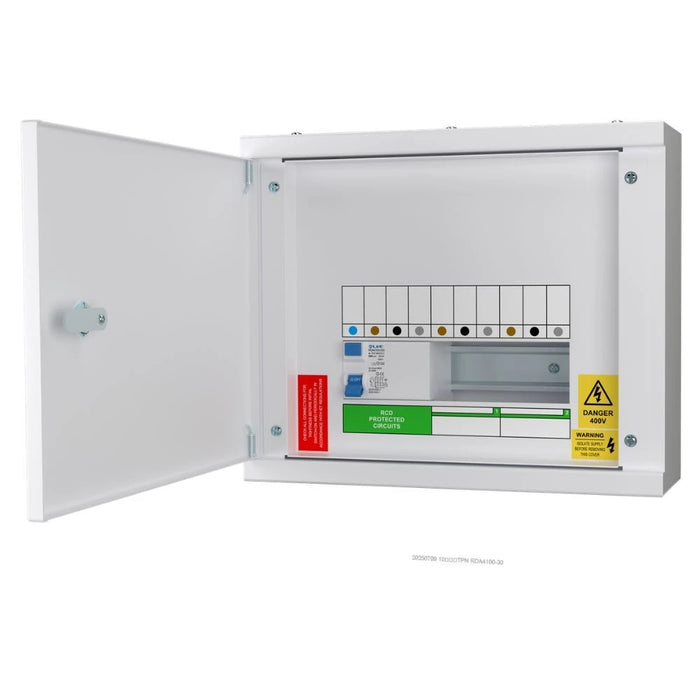

LIVE Electrical TPNH02R 2 Way Horizontal TPN MCB Distribution Board with 100A 4 Pole 30mA RCD Incomer

The LIVE Electrical TPNH02R is a high-quality 2 way horizontal TPN (Three Phase and Neutral) MCB distribution board, supplied with a 100A 4 pole 30mA RCD incomer. Designed for commercial, industrial and three phase electrical installations, it provides dependable circuit protection in a durable surface-mounted enclosure.

Manufactured in accordance with BS EN 61439-1 & 3, the distribution board features complete shrouding of the main incomer and link, removable gland plates for simplified cable entry, and conveniently positioned earth and neutral terminals to speed up installation and maintenance.

Key Features

• 2 way horizontal TPN MCB distribution board
• Supplied with a 100A 4 pole 30mA RCD incomer
• Suitable for three phase commercial and industrial installations
• Manufactured to BS EN 61439-1 & BS EN 61439-3
• IP40 surface-mounted enclosure
• Complete shrouding for the main incomer and link
• Removable gland plate for quick and easy cable entry
• Keyhole fixing points for simple wall mounting
• Earth and neutral terminals positioned adjacent to MCBs and RCBOs for faster wiring
• Finished in durable epoxy powder coating to RAL 7035

Technical Specification

• Manufacturer: LIVE Electrical
• Part Number: TPNH02R
• Product Type: Horizontal TPN MCB Distribution Board
• Number of Ways: 2
• Incomer: 100A 4 Pole 30mA RCD
• Mounting: Surface Mounted
• Protection Rating: IP40
• Compliance: BS EN 61439-1 & BS EN 61439-3
• Finish: Epoxy powder coated, RAL 7035
• Dimensions (W × H × D): 325 × 265 × 103mm

Applications

• Three phase power distribution
• Commercial electrical installations
• Industrial electrical systems
• Workshops and manufacturing facilities
• Distribution board upgrades and new installations
