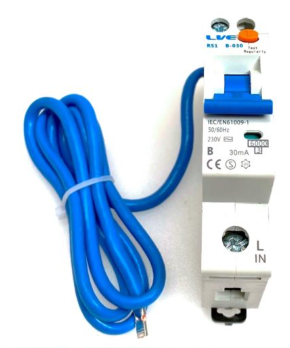

LIVE Electrical RS110B-030 Single Module 10A B Curve 6kA 30mA Type AC Mini RCBO

Product Overview

The LIVE Electrical RS110B-030 Mini RCBO is a compact single-module protective device that combines the functionality of an MCB and RCD in one unit. It provides switching, isolation, overload, short circuit, and residual current protection, ensuring reliable safety for domestic and light commercial circuits. With a durable design and compliance to BS EN 61009-1, this Type AC Mini RCBO is a robust choice for safeguarding installations against electrical hazards.

Key Features

  • Single module Mini RCBO – Type AC
  • Provides overload, short circuit, and residual current protection
  • Protects against direct and indirect contact
  • Fire risk reduction from insulation faults
  • Switching and isolation functionality
  • Compact, space-saving design

Technical Specifications

  • Rated current (In): 10A
  • Rated voltage (Ue): 230V AC
  • Breaking capacity (Icn): 6kA
  • Rated residual current: 30mA
  • Tripping curve: B
  • Electrical endurance: 4,000 cycles
  • Mechanical endurance: 10,000 cycles
  • Terminal cable capacity: IN – 16mm², OUT – 10mm²
  • Standard: BS EN 61009-1
  • Type: AC

Downloads
