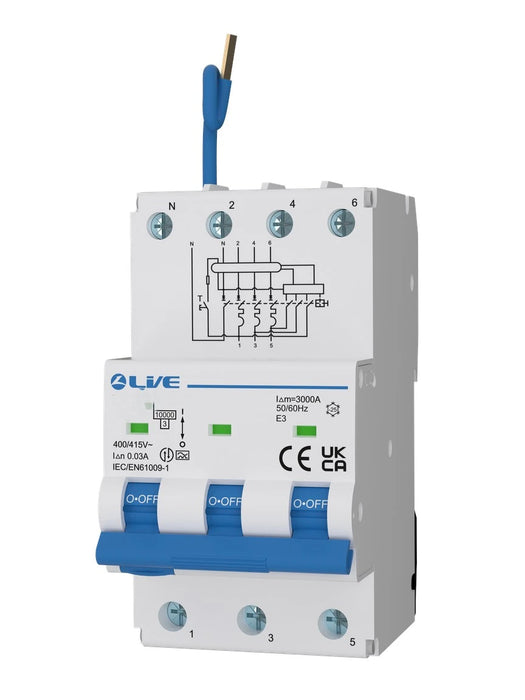

LIVE Electrical RKN325C-030 3P+N 25A C Curve 10kA 30mA Type A Bidirectional RCBO

Product Description

The LIVE Electrical RKN325C-030 is a 3P+N bidirectional Type A RCBO designed to provide combined overcurrent and residual current protection for 400/415V electrical installations. Rated at 25A with a C curve tripping characteristic, 30mA residual current sensitivity and a 10kA breaking capacity, it delivers reliable circuit protection for suitable three-phase applications.

Featuring bidirectional operation and a switched neutral, this RCBO combines residual current and overcurrent protection within a single device. The C curve characteristic makes it suitable for appropriate circuits where higher initial inrush currents may occur, while compliance with IEC/EN 61009-1 ensures compatibility with recognised electrical protection requirements.

Key Features & Benefits

• 3P+N configuration for suitable three-phase electrical circuits.
• 25A rated current with C curve tripping characteristic.
• 10kA rated breaking capacity for robust fault protection.
• 30mA rated residual current sensitivity.
• Type A residual current protection.
• Bidirectional operation for suitable electrical installations.
• Switched neutral configuration.
• Designed for 400/415V AC electrical systems.
• Complies with IEC/EN 61009-1.

Technical Specification

• Manufacturer: LIVE Electrical
• Product Code: RKN325C-030
• Device Type: RCBO
• Poles: 3P+N
• Rated Current: 25A
• Rated Operating Voltage: 400/415V AC
• Tripping Curve: C Curve
• Rated Breaking Capacity: 10kA
• Residual Current Type: Type A
• Rated Sensitivity: 30mA
• Operation: Bidirectional
• Neutral: Switched Neutral
• Terminal Torque: 1.2/2.0Nm
• Standard: IEC/EN 61009-1
