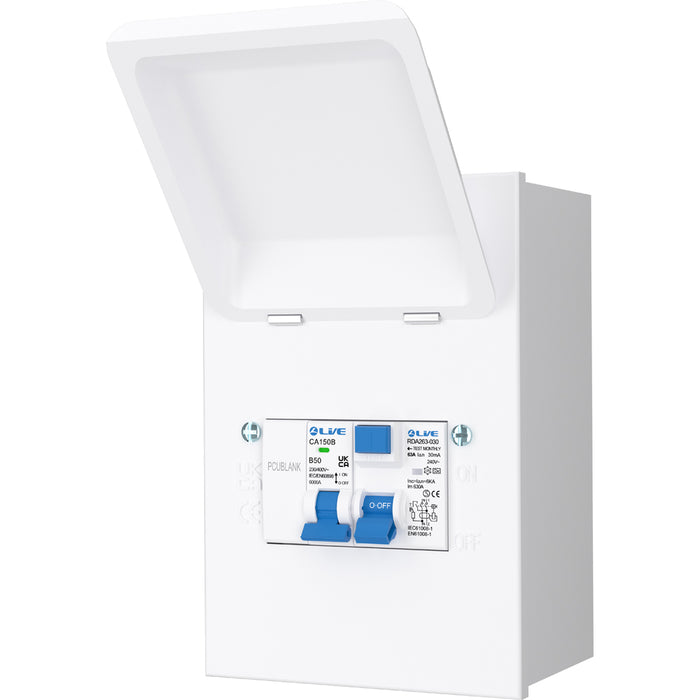

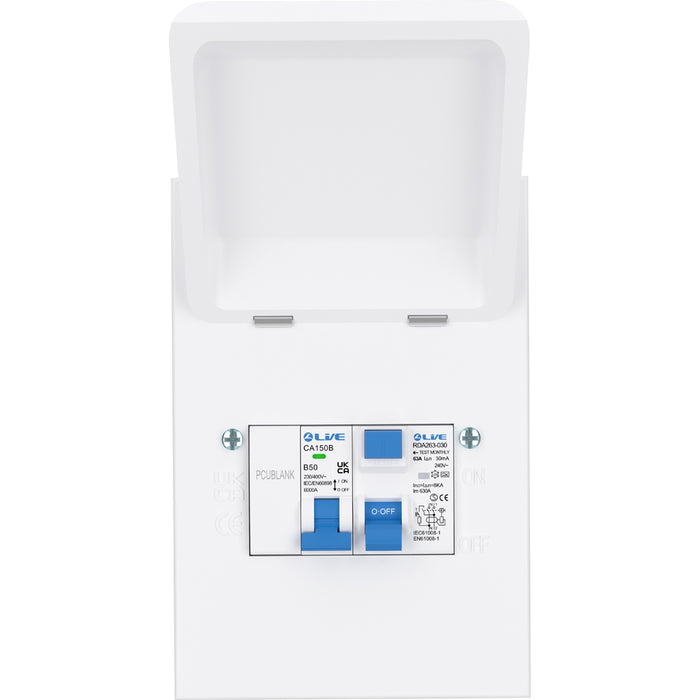

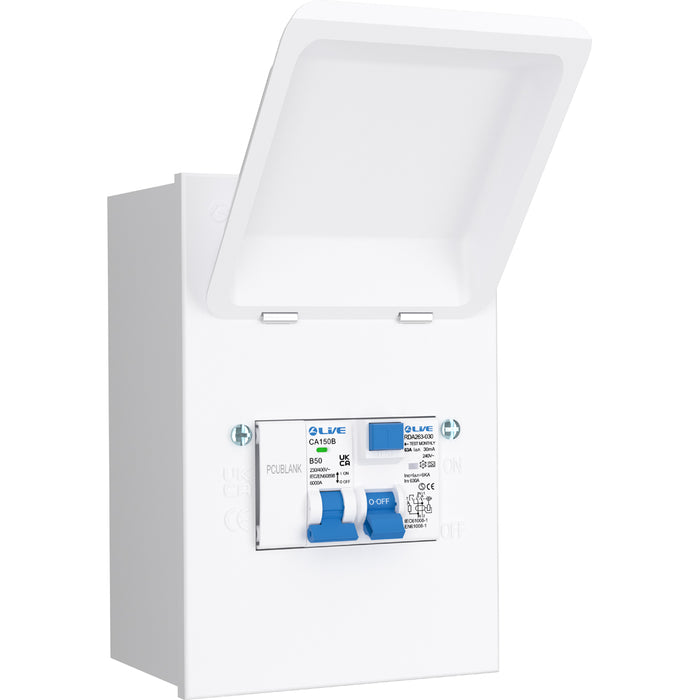

LIVE Electrical MMSU6350 4 Way IP40 Metal Mini Shower Unit with 63A 30mA Type A RCD & B50A MCB

The LIVE Electrical MMSU6350 metal mini shower unit is a compact and dependable solution for dedicated shower circuit installations. Supplied with a 63A 30mA Type A RCD and a B50A MCB, it provides effective protection against overloads and residual current faults, ensuring safe and reliable performance.

Manufactured from robust steel and finished in a white polyester powder coating, this IP40 rated shower consumer unit offers durability alongside a clean, modern appearance. Its compact design and well-planned layout make installation simple, even in confined spaces.

Key Features and Benefits

• 4 way metal mini shower unit designed for dedicated electrical circuits
• Fitted with 63A 30mA Type A RCD for enhanced safety protection
• Includes 1x B50A MCB
• IP40 rated – suitable for indoor installations
• Surface-mounted design for straightforward installation
• Fully enclosed metal construction with practical drop-down lid
• Multiple cable entry knock-outs:
  • 25mm and 32mm entries on top and bottom
  • 32mm entries on sides and rear
  • Larger rear slots for flexible cable routing
• Raised keyholes for secure and easy mounting
• Raised DIN rail improves cable routing and installation access
• Finished in white polyester powder coating to RAL 9010
• Spacious wiring area for easier installation and maintenance
• Flexible configuration options for additional protective devices if required

Product Specification

• Model: MMSU6350
• Brand: LIVE Electrical
• Type: Metal Mini Shower Unit
• Ways: 4 Way
• Ingress Protection: IP40
• Mounting: Surface Mounted
• RCD: 63A 30mA Type A
• MCB Included: 1x B50A
• Colour: White (RAL 9010)
• Dimensions: 125mm (W) x 183mm (H) x 110mm (D)

Ideal Applications

This LIVE Electrical shower consumer unit is ideal for protecting electric shower circuits in domestic properties. Its compact size, robust construction and pre-installed protection make it a practical and efficient choice for electricians and installers.

Data Sheet:
Click here to download the Mini Shower Unit IP40 data sheet

LIVE Electrical Catalogue:
Click here for the LIVE Electrical catalogue
