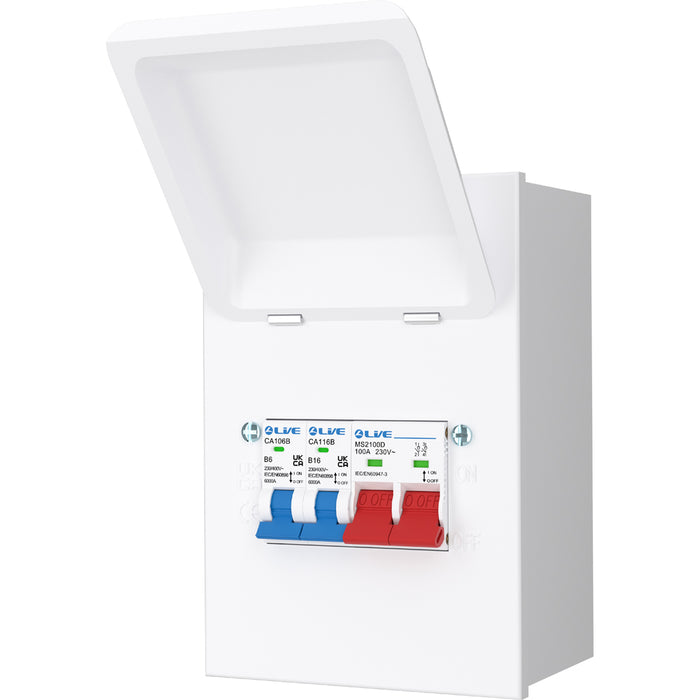

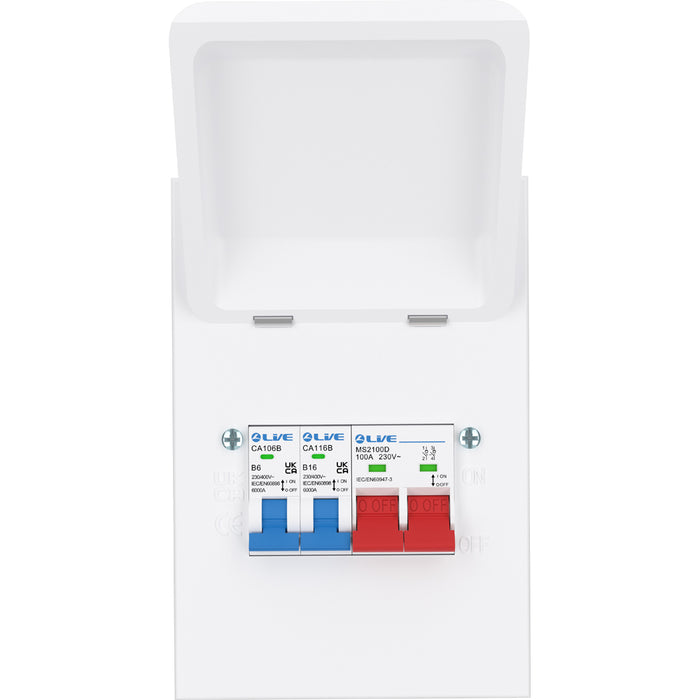

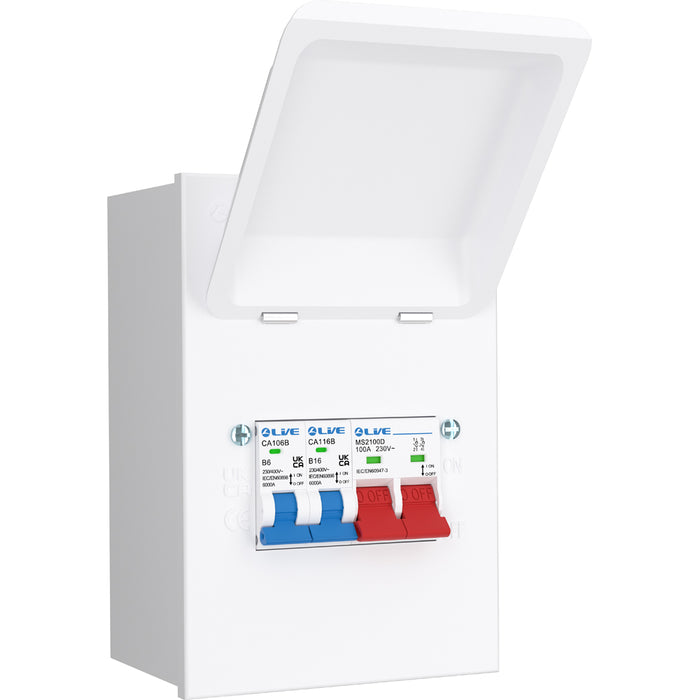

LIVE Electrical MMGUMS616 4 Way IP40 Metal Mini Garage Unit with 100A Main Switch & MCBs

The LIVE Electrical MMGUMS616 4 way metal mini garage unit is a compact and practical consumer unit designed for smaller electrical installations. Supplied with a 100A main switch and B6A and B16A MCBs, it provides reliable circuit control and protection for garages, workshops, sheds and other outbuildings.

Manufactured from durable steel and finished in a white polyester powder coating, this IP40 rated garage unit is built for long-term performance. Its smart internal design ensures easy installation, efficient cable management and flexibility for a range of circuit configurations.

Key Features and Benefits

• 4 way metal mini garage consumer unit
• Fitted with a 100A main switch for safe and reliable isolation
• Includes 1x B6A and 1x B16A MCB
• IP40 rated – suitable for indoor applications
• Surface-mounted design for straightforward installation
• Fully enclosed metal construction with practical drop-down lid
• Multiple cable entry knock-outs:
  • 25mm and 32mm entries on top and bottom
  • 32mm entries on sides and rear
  • Larger rear slots for flexible cable routing
• Raised keyholes for secure and easy mounting
• Raised DIN rail improves cable routing and installation access
• Finished in white polyester powder coating to RAL 9010
• Spacious internal wiring area for ease of installation
• Flexible configuration options for various circuit arrangements

Product Specification

• Model: MMGUMS616
• Brand: LIVE Electrical
• Type: Metal Mini Garage Consumer Unit
• Ways: 4 Way
• Ingress Protection: IP40
• Mounting: Surface Mounted
• Main Switch: 100A
• MCBs Included: 1x B6A, 1x B16A
• Colour: White (RAL 9010)
• Dimensions: 125mm (W) x 183mm (H) x 110mm (D)

Ideal Applications

This LIVE Electrical garage unit is ideal for garages, garden buildings, workshops and similar environments where a compact and dependable consumer unit is required. Its robust design and pre-installed devices make it a convenient and efficient solution for professional electricians and installers.

Data Sheet:
Click here to download the Mini Garage Unit IP40 data sheet

LIVE Electrical Catalogue:
Click here for the LIVE Electrical catalogue
