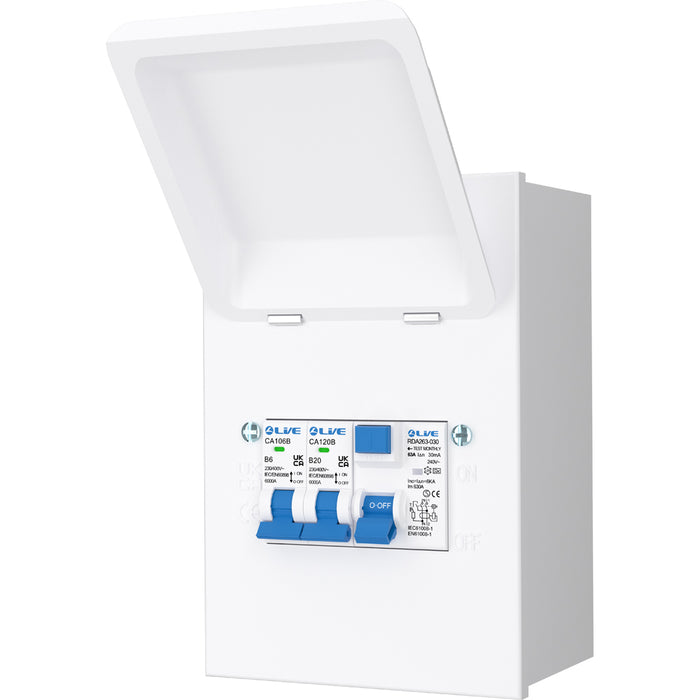

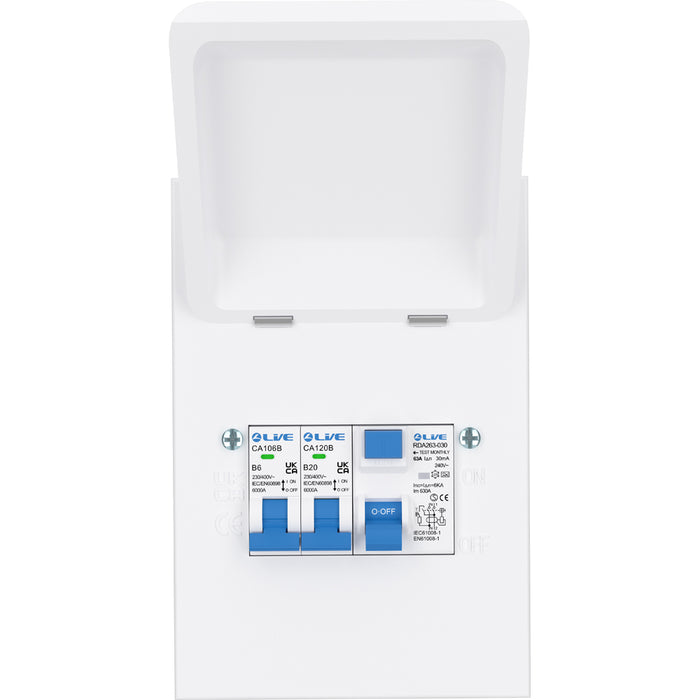

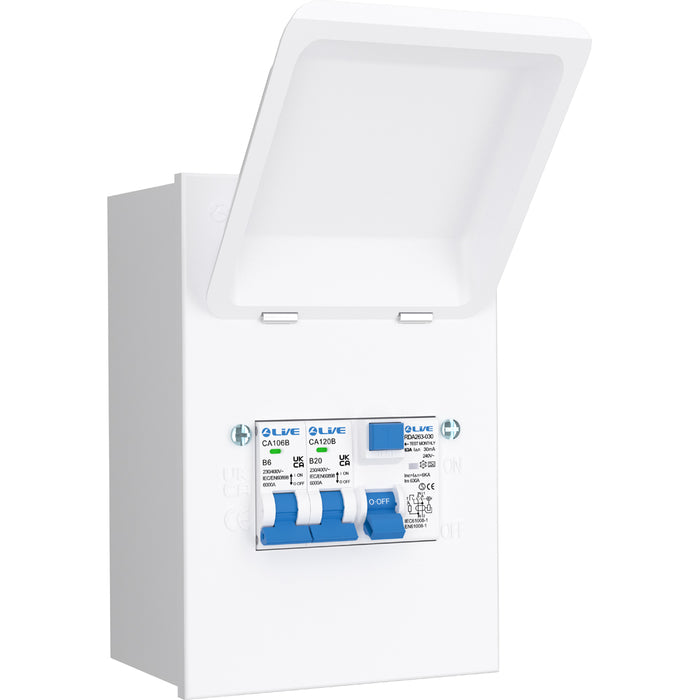

LIVE Electrical MMGU63620 4 Way IP40 Metal Mini Garage Unit with 63A 30mA Type A RCD & MCBs

The LIVE Electrical MMGU63620 4 way metal mini garage unit is a reliable and compact consumer unit designed for smaller electrical installations. Supplied with a 63A 30mA Type A RCD and B6A and B20A MCBs, it provides dependable circuit protection for garages, workshops, sheds and other outbuildings.

Constructed from durable steel and finished in a clean white polyester powder coating, this IP40 rated garage unit is built for long-lasting performance. Its practical internal layout and generous wiring space make installation straightforward while allowing flexibility for future circuit expansion.

Key Features and Benefits

• 4 way metal mini garage consumer unit
• Supplied with 63A 30mA Type A RCD for enhanced safety
• Includes 1x B6A and 1x B20A MCB
• IP40 rated – suitable for indoor installations
• Surface-mounted design for quick and easy fitting
• Fully enclosed metal body with convenient drop-down lid
• Multiple cable entry knock-outs:
  • 25mm and 32mm entries on top and bottom
  • 32mm entries on sides and rear
  • Larger rear slots for flexible cable routing
• Raised keyholes for secure and simple installation
• Raised DIN rail improves cable routing and accessibility
• Finished in white polyester powder coating to RAL 9010
• Spacious internal wiring area for ease of installation
• Flexible configuration options for a variety of applications

Product Specification

• Model: MMGU63620
• Brand: LIVE Electrical
• Type: Metal Mini Garage Consumer Unit
• Ways: 4 Way
• Ingress Protection: IP40
• Mounting: Surface Mounted
• RCD: 63A 30mA Type A
• MCBs Included: 1x B6A, 1x B20A
• Colour: White (RAL 9010)
• Dimensions: 125mm (W) x 183mm (H) x 110mm (D)

Ideal Applications

This LIVE Electrical garage unit is ideal for garages, garden rooms, workshops and similar environments where a compact and reliable consumer unit is required. Its robust design and pre-installed protection devices make it a practical and efficient choice for professional electricians and installers.

Data Sheet:
Click here to download the Mini Garage Unit IP40 data sheet

LIVE Electrical Catalogue:
Click here for the LIVE Electrical catalogue
