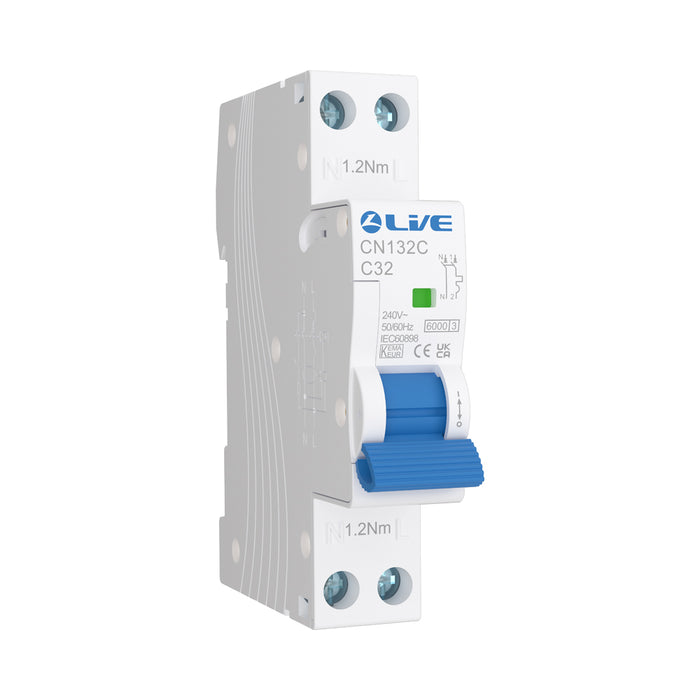

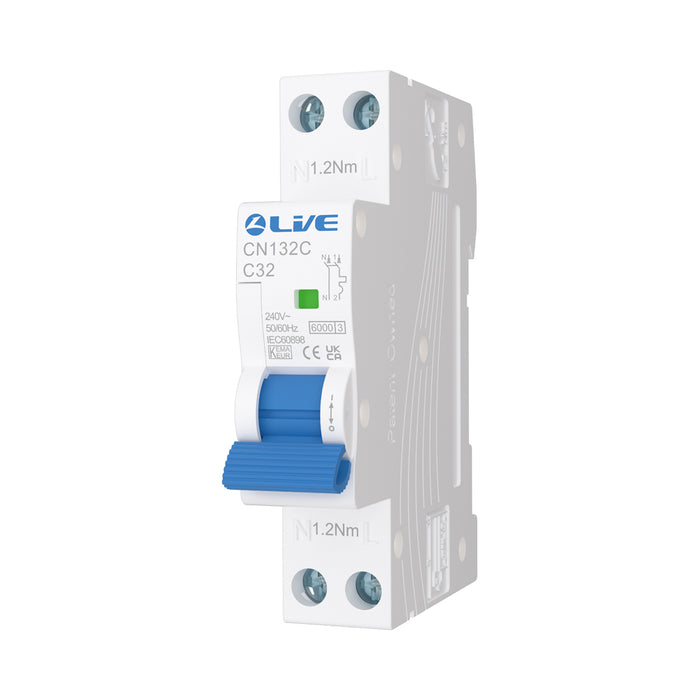

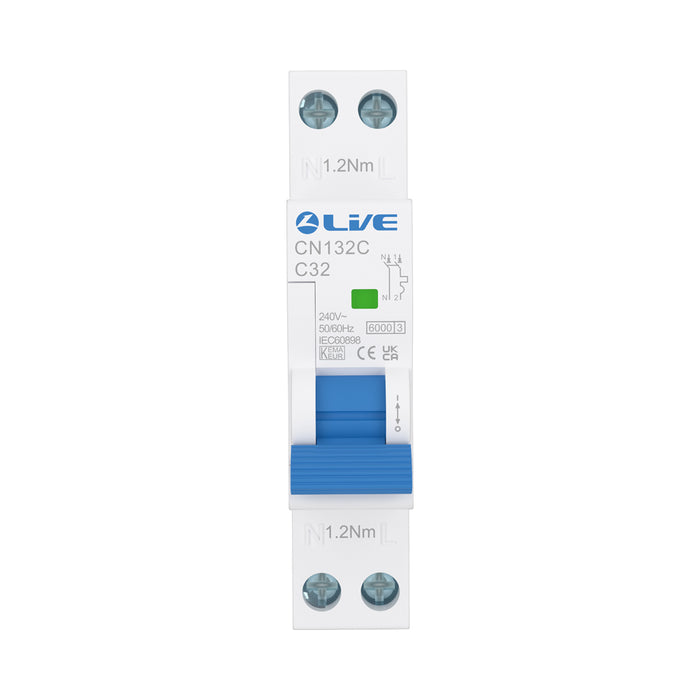

LIVE Electrical CN132C 32A Type C 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN132C 32A Type C Miniature Circuit Breaker (MCB) provides reliable overload and short-circuit protection for domestic and commercial electrical installations. Designed specifically for LIVE Electrical SRN Dual Busbar consumer units, this compact circuit breaker combines a 32A rated current, Type C tripping characteristic and 6kA breaking capacity in a space-saving single-module design.
Featuring a 1P+N configuration, the CN132C provides overcurrent protection for the live conductor alongside neutral switching. Its Type C tripping characteristic makes it suitable for appropriately designed circuits with moderate inrush currents, including selected motor-driven equipment, commercial lighting installations and inductive electrical loads.
With a rated operating voltage of 240V AC and a frequency of 50/60Hz, this LIVE Electrical MCB offers a practical circuit protection solution for professional electricians and electrical contractors installing or maintaining compatible distribution boards.
Key Features
-
32A Rated Current: Provides overload protection for electrical circuits designed for a 32A protective device.
-
Type C Tripping Curve: Suitable for circuits with moderate inrush currents, including appropriately rated motor loads, lighting systems and inductive equipment.
-
6kA Breaking Capacity: Designed to interrupt short-circuit fault currents up to its rated breaking capacity of 6000A.
-
1P+N Configuration: Combines single-pole overcurrent protection with neutral switching in one compact device.
-
Single-Module Design: Space-efficient construction helps maximise available capacity within compatible consumer units.
-
240V AC Rated Voltage: Designed for suitable single-phase electrical installations.
-
SRN Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar distribution boards.
-
IP20 Protection: Provides protection against finger access to hazardous parts.
-
10mm² Terminal Capacity: Accommodates conductors up to the specified maximum terminal capacity.
-
1.2Nm Terminal Torque: Provides a specified tightening torque for secure electrical connections.
-
Wide Operating Temperature Range: Designed for operation in ambient temperatures from -25°C to +40°C.
Technical Specifications
| Manufacturer |
LIVE Electrical |
| Product Code |
CN132C |
| Product Type |
Miniature Circuit Breaker (MCB) |
| Pole Configuration |
1P+N |
| Rated Current |
32A |
| Rated Voltage |
240V AC |
| Tripping Characteristic |
Type C |
| Rated Frequency |
50/60Hz |
| Number of Modules |
1 |
| Short-Circuit Breaking Capacity |
6kA |
| Mechanical Life |
4,000 Cycles (as supplied) |
| Degree of Protection |
IP20 |
| Maximum Terminal Capacity |
10mm² |
| Terminal Tightening Torque |
1.2Nm |
| Operating Temperature |
-25°C to +40°C |
| Compatible Distribution Boards |
LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN132C 32A Type C MCB is suitable for appropriately designed domestic and commercial electrical installations requiring protection against overloads and short circuits. Potential applications include:
- Commercial lighting circuits with moderate start-up currents.
- Suitably rated motor-driven equipment and inductive loads.
- Fixed electrical equipment requiring Type C circuit protection.
- Appropriately designed radial circuits with higher inrush currents.
- Compatible LIVE Electrical SRN Dual Busbar consumer units.
Selection of a Type C MCB should take account of the circuit design, cable capacity, prospective fault current and required disconnection times to ensure compliance with applicable electrical installation requirements.
