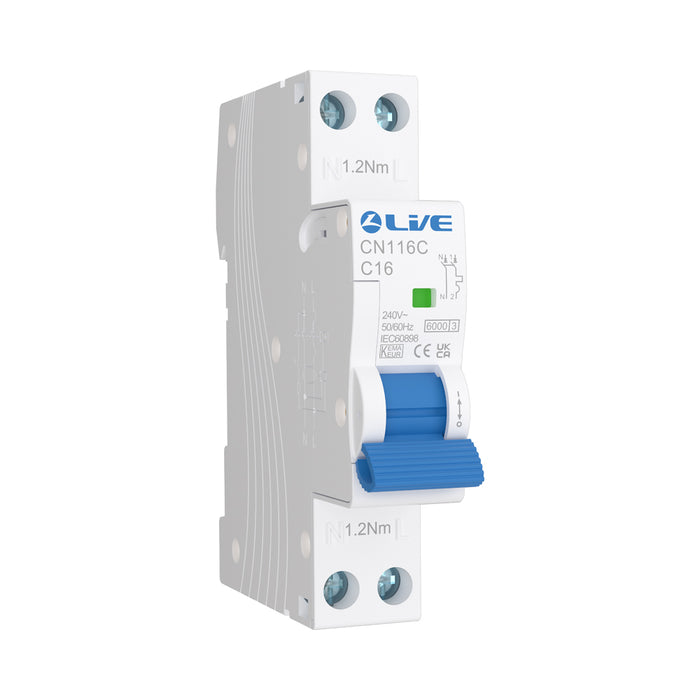

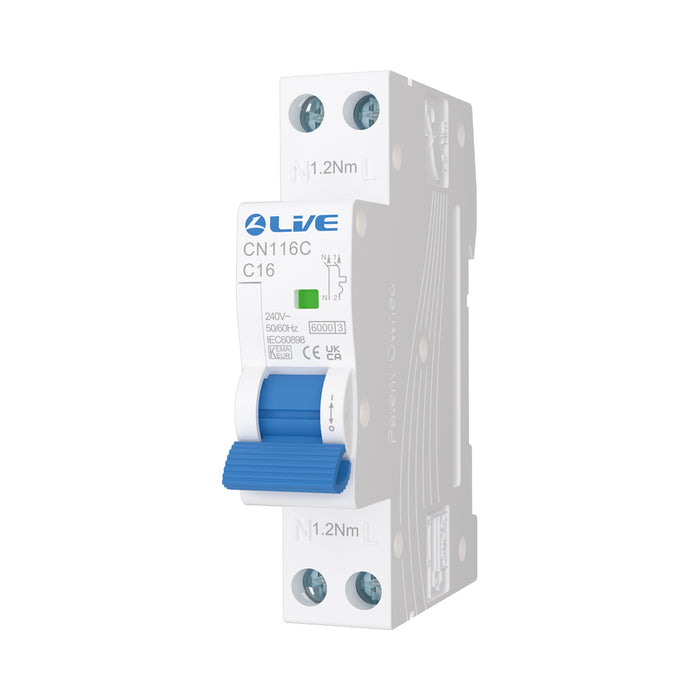

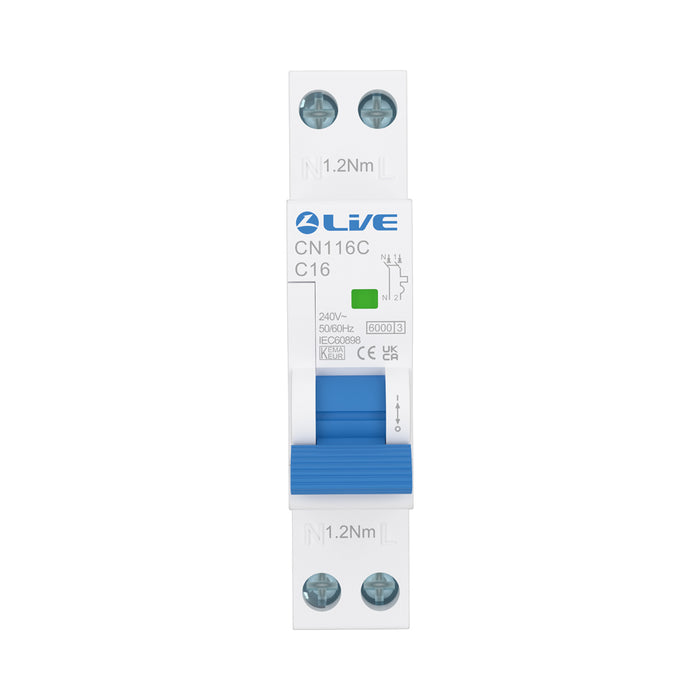

LIVE Electrical CN116C 16A Type C 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN116C 16A Type C Miniature Circuit Breaker (MCB) is designed to deliver reliable overload and short-circuit protection for domestic and commercial electrical installations. Featuring a 1P+N configuration, 6kA breaking capacity and compact single-module design, this circuit breaker is specifically designed for use with LIVE Electrical SRN Dual Busbar consumer units.
With a 16A rated current and Type C tripping characteristic, the CN116C is suitable for appropriately designed electrical circuits with moderate inrush currents, including certain LED lighting systems, small motors and inductive electrical equipment. Its space-saving construction enables efficient installation within compatible distribution boards while providing dependable circuit protection.
Key Features
-
16A Rated Current: Provides overload protection for electrical circuits designed for a 16A protective device.
-
Type C Tripping Curve: Suitable for circuits with moderate inrush currents, including selected lighting systems and inductive loads.
-
6kA Breaking Capacity: Designed to interrupt short-circuit fault currents up to its rated breaking capacity of 6000A.
-
1P+N Configuration: Combines single-pole overcurrent protection with neutral switching in one compact device.
-
Single-Module Design: Space-efficient construction helps maximise available capacity within compatible consumer units.
-
240V AC Rated Voltage: Designed for suitable single-phase electrical installations.
-
SRN Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar distribution boards.
-
IP20 Protection: Provides protection against finger access to hazardous parts.
-
10mm² Terminal Capacity: Accommodates conductors up to the specified maximum terminal capacity.
-
Wide Operating Temperature Range: Designed for operation in ambient temperatures from -25°C to +40°C.
Technical Specifications
| Manufacturer |
LIVE Electrical |
| Product Code |
CN116C |
| Product Type |
Miniature Circuit Breaker (MCB) |
| Pole Configuration |
1P+N |
| Rated Current |
16A |
| Rated Voltage |
240V AC |
| Tripping Characteristic |
Type C |
| Rated Frequency |
50/60Hz |
| Number of Modules |
1 |
| Short-Circuit Breaking Capacity |
6kA |
| Mechanical Life |
4,000 Cycles (as supplied) |
| Degree of Protection |
IP20 |
| Maximum Terminal Capacity |
10mm² |
| Terminal Tightening Torque |
1.2Nm |
| Operating Temperature |
-25°C to +40°C |
| Compatible Distribution Boards |
LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN116C 16A MCB is suitable for appropriately designed domestic and commercial electrical installations requiring Type C overcurrent protection. Potential applications include lighting circuits with higher start-up currents, small motor circuits, fixed electrical equipment and other suitably rated inductive loads. It is designed for installation within compatible LIVE Electrical SRN Dual Busbar consumer units.
Selection of a Type C MCB should take account of the circuit design, prospective fault current and required disconnection times.
