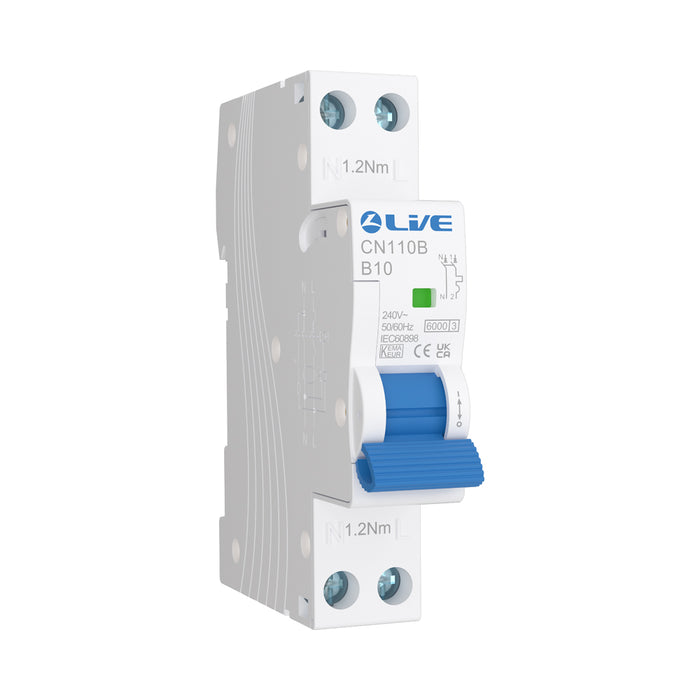

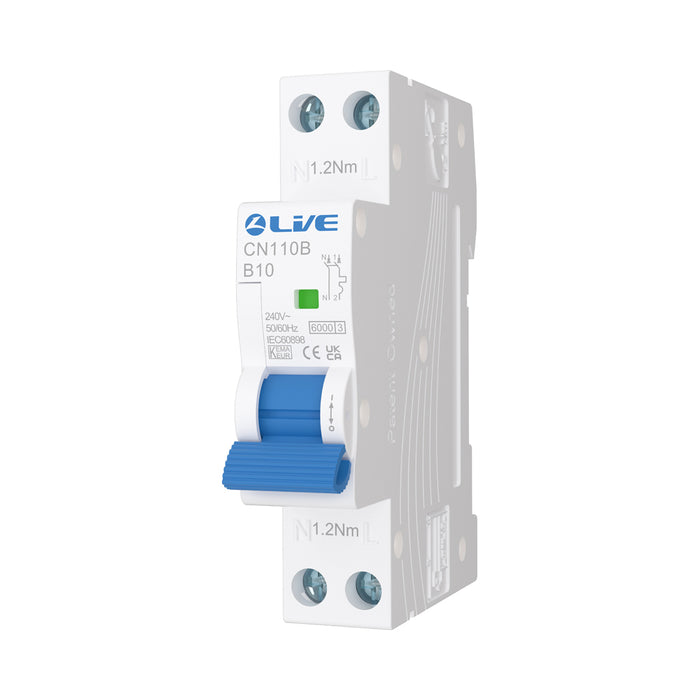

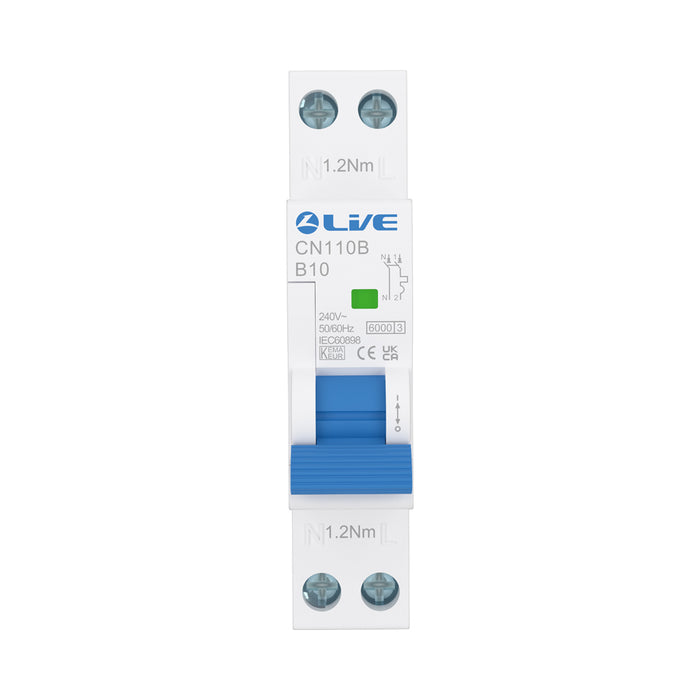

LIVE Electrical CN110B 10A Type B 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN110B 10A Type B Miniature Circuit Breaker (MCB) provides reliable overload and short-circuit protection for electrical distribution systems. Featuring a 1P+N configuration, 6kA breaking capacity and compact single-module design, this circuit breaker is specifically designed for use with LIVE Electrical SRN Dual Busbar consumer units.
With a 10A rated current and Type B tripping characteristic, the CN110B is suitable for appropriately rated circuits with low inrush currents, including domestic and commercial lighting applications. Its compact construction helps maximise available space within compatible distribution boards while providing dependable circuit protection.
Key Features
-
10A Rated Current: Provides overload protection for suitably rated electrical circuits.
-
Type B Tripping Curve: Suitable for circuits with low inrush currents, including general lighting applications.
-
6kA Breaking Capacity: Designed to interrupt short-circuit fault currents up to its rated breaking capacity of 6000A.
-
1P+N Configuration: Combines single-pole overcurrent protection with neutral switching in one compact device.
-
Single-Module Design: Space-saving construction for efficient installation in compatible consumer units.
-
240V AC Rated Voltage: Designed for use in suitable single-phase electrical installations.
-
SRN Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar distribution boards.
-
IP20 Protection: Provides protection against finger access to hazardous parts.
-
10mm² Terminal Capacity: Supports conductors up to the specified maximum terminal capacity.
-
Wide Operating Temperature Range: Suitable for operating temperatures from -25°C to +40°C.
Technical Specifications
| Manufacturer |
LIVE Electrical |
| Product Code |
CN110B |
| Product Type |
Miniature Circuit Breaker (MCB) |
| Pole Configuration |
1P+N |
| Rated Current |
10A |
| Rated Voltage |
240V AC |
| Tripping Characteristic |
Type B |
| Rated Frequency |
50/60Hz |
| Number of Modules |
1 |
| Short-Circuit Breaking Capacity |
6kA |
| Mechanical Life |
4,000 Cycles (as supplied) |
| Degree of Protection |
IP20 |
| Maximum Terminal Capacity |
10mm² |
| Terminal Tightening Torque |
1.2Nm |
| Operating Temperature |
-25°C to +40°C |
| Compatible Distribution Boards |
LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN110B 10A MCB is designed for suitably rated domestic and commercial electrical circuits requiring Type B overcurrent protection. Typical applications include lighting circuits and other low-inrush electrical loads installed within compatible LIVE Electrical SRN Dual Busbar consumer units.
