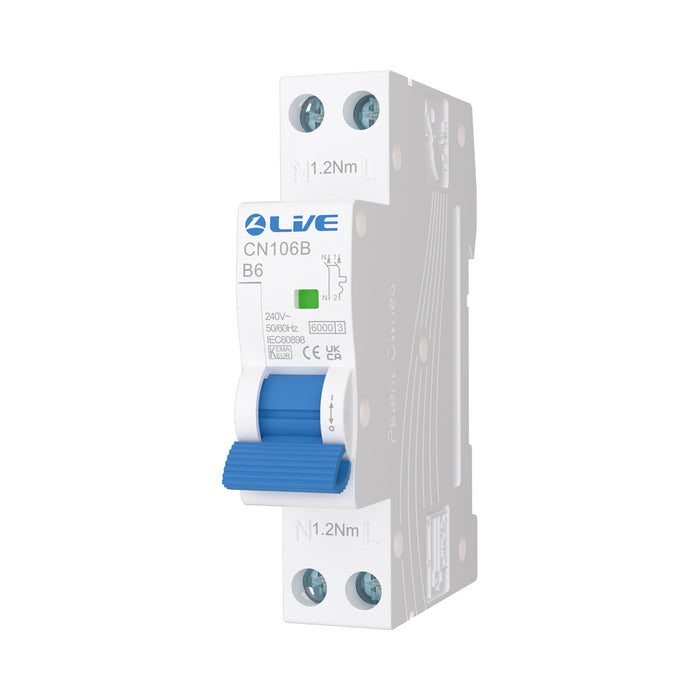

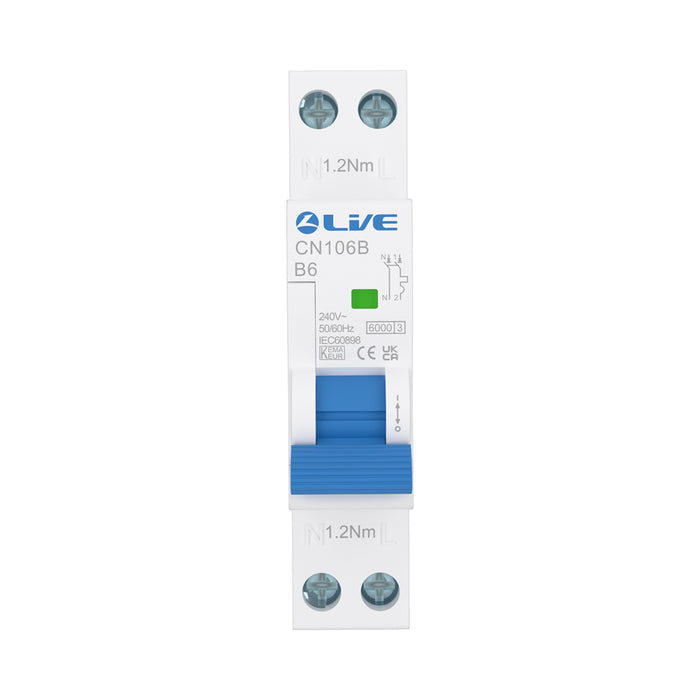

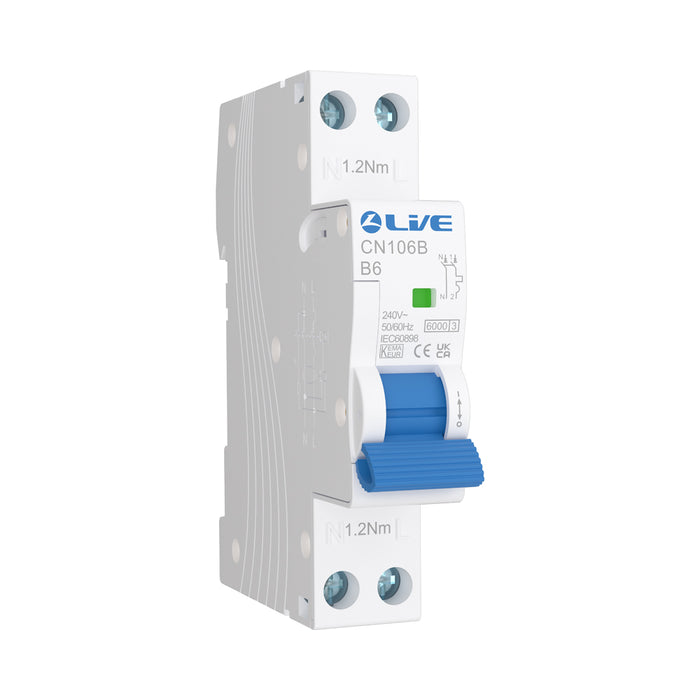

LIVE Electrical CN106B 6A Type B 6kA 1P+N Miniature Circuit Breaker (MCB)
The LIVE Electrical CN106B 6A Type B Miniature Circuit Breaker (MCB) is designed to provide reliable overcurrent and short-circuit protection in electrical distribution systems. Featuring a compact 1P+N configuration and a 6kA breaking capacity, this single-module MCB is specifically designed for use with LIVE Electrical SRN Dual Busbar consumer units.
With a 6A rated current and Type B tripping characteristic, the CN106B is suitable for electrical circuits with relatively low inrush currents, including appropriate domestic and commercial lighting applications. Its space-saving design enables straightforward integration into compatible distribution boards.
Key Features
-
6A Rated Current: Provides overcurrent protection for suitably rated electrical circuits.
-
Type B Tripping Curve: Designed for circuits with low inrush currents, including typical lighting applications.
-
6kA Breaking Capacity: Offers short-circuit protection with a rated breaking capacity of 6000A.
-
1P+N Configuration: Combines single-pole protection with neutral switching in a compact design.
-
Single-Module Width: Space-efficient construction for compatible consumer units.
-
240V AC Operation: Suitable for electrical installations operating at the specified rated voltage.
-
Dual Busbar Compatibility: Specifically designed for LIVE Electrical SRN Dual Busbar boards.
-
IP20 Protection: Provides protection against finger contact with hazardous parts.
-
10mm² Terminal Capacity: Accommodates conductors up to the specified maximum terminal capacity.
Technical Specifications
| Manufacturer |
LIVE Electrical |
| Product Code |
CN106B |
| Product Type |
Miniature Circuit Breaker (MCB) |
| Pole Configuration |
1P+N |
| Rated Current |
6A |
| Rated Voltage |
240V AC |
| Tripping Characteristic |
Type B |
| Rated Frequency |
50/60Hz |
| Number of Modules |
1 |
| Short-Circuit Breaking Capacity |
6kA |
| Mechanical Life |
4,000 Cycles (as supplied) |
| Degree of Protection |
IP20 |
| Maximum Terminal Capacity |
10mm² |
| Terminal Tightening Torque |
1.2Nm |
| Operating Temperature |
-25°C to +40°C |
| Compatible Distribution Boards |
LIVE Electrical SRN Dual Busbar Boards |
Applications
The LIVE Electrical CN106B 6A MCB is suitable for appropriately designed domestic and commercial electrical installations requiring Type B circuit protection. It is particularly useful for lighting circuits and other low-inrush applications within compatible LIVE Electrical SRN Dual Busbar consumer units.
