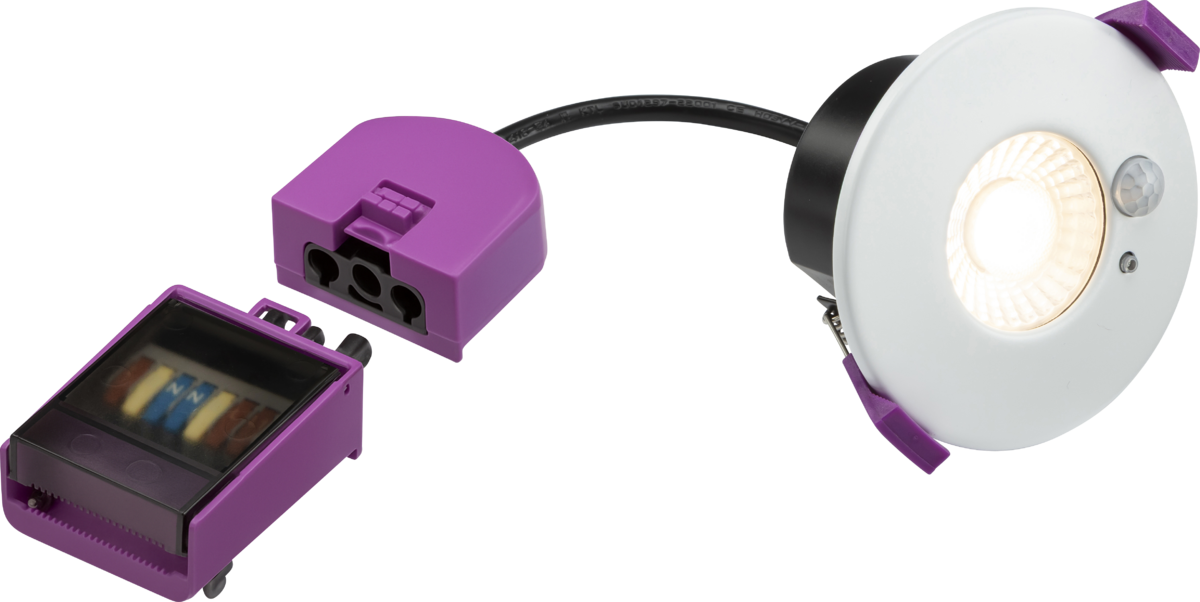

Knightsbridge SPKEVFPIR SpektroLED Evo IP65 7W 4CCT Fixed Fire-Rated Downlight with PIR Sensor
Product Description
The Knightsbridge SPKEVFPIR SpektroLED Evo is a versatile 7W fixed fire-rated LED downlight featuring an integrated PIR motion sensor and selectable colour temperature. Designed for energy-efficient residential and commercial lighting installations, it combines convenient automatic operation with the flexibility of four selectable CCT settings.
The integrated PIR sensor provides motion detection up to 5 metres when installed at a height of 4 metres. Adjustable controls for the hold-on time and ambient light threshold are conveniently accessible after installation, allowing the operation to be configured to suit the application.
Four selectable colour temperatures of 2700K, 3000K, 4000K and 6000K allow installers to choose the preferred light appearance on site. The CCT selector and PIR controls are positioned beneath the removable magnetic bezel for straightforward access.
Designed with installers in mind, the SPKEVFPIR features male and female first and second fix power connectors with loop-in/loop-out capability. Cabling can therefore be terminated during the initial installation and the downlight simply plugged in after decorating. The connector system also makes future removal and maintenance easier.
With an IP65 rating, IC rating for insulation contact and 30, 60 and 90-minute fire-rated performance in suitable solid timber constructions, the SpektroLED Evo provides a practical solution for a wide range of lighting applications. A white magnetic metal bezel is supplied as standard.
Key Features
- 7W fixed LED downlight with integrated PIR motion sensor
- Four selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
- IP65 rated for suitable indoor dry and wet-location applications
- 230V direct-to-fitting connection
- Loop-in/loop-out first and second fix connectors for easier installation
- Magnetic bezel design for quick access to CCT and PIR sensor controls
- PIR detection range of up to 5m when installed at a height of 4m
- Adjustable hold-on time from 5 seconds to 10 minutes
- Adjustable ambient light threshold from 0 to 1000 lux
- Fire rated for 30, 60 and 90 minutes in suitable solid timber constructions
- 30-minute fire rating for suitable web joist and I-joist installations
- IC rated for insulation contact
- Acoustic rated to ISO 10140-2:2010
- Designed to meet current energy-efficiency requirements
- Supplied with a white metal bezel
- Non-dimmable
- 7-year warranty
Technical Specification
- Brand: Knightsbridge
- Range: SpektroLED Evo
- Product Code: SPKEVFPIR
- Product Type: Fixed Fire-Rated LED Downlight with PIR Sensor
- Power: 7W
- Voltage: 230V
- Colour Temperature: 2700K / 3000K / 4000K / 6000K
- Sensor Type: PIR
- Detection Range: Up to 5m at 4m mounting height
- Hold-On Time: 5 seconds to 10 minutes
- Ambient Light Threshold: 0-1000 lux
- Ingress Protection: IP65
- Fire Rating: 30 / 60 / 90 minutes
- IC Rated: Yes
- Dimmable: No
- Bezel Colour: White
- Warranty: 7 Years
