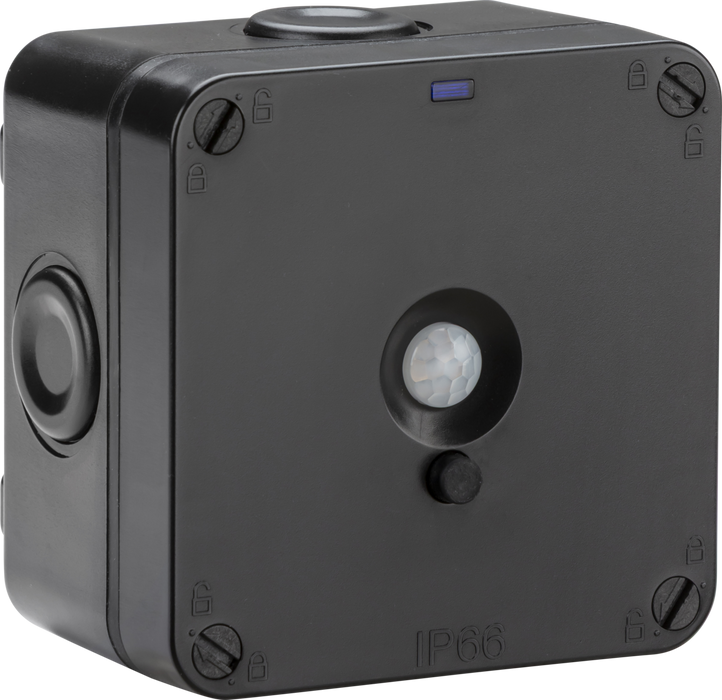

Knightsbridge OPPIRS IP66 Weatherproof PIR Sensor with Photocell & Manual Override

The Knightsbridge OPPIRS Weatherproof PIR Sensor is a durable and versatile outdoor motion sensor switch designed for reliable automatic lighting control. Featuring an integrated photocell, manual override function and robust IP66-rated housing, it provides a practical solution for managing outdoor lighting in residential and commercial environments.

Equipped with a 120° PIR detection angle and a sensing range of up to 5 metres, the OPPIRS automatically activates connected lighting when movement is detected. The built-in photocell enables light-sensitive operation, while the manual override button allows users to switch between automatic sensor mode and continuous illumination.

Manufactured from high-impact polycarbonate with an IK06 impact resistance rating, this weatherproof PIR sensor is built for long-lasting outdoor performance. Integrated mounting screws and multiple 20mm cable entry and exit points help simplify installation and provide flexible positioning.

Key Features:

• IP66 Weatherproof Protection: Designed to withstand dust and powerful water jets, making it suitable for outdoor installations.
• IK06 Impact Resistance: Durable, high-impact polycarbonate construction for enhanced protection.
• 120° PIR Detection: Detects movement within a range of up to 5 metres.
• Integrated Photocell: Automatically switches lighting ON at 5–20 lux and OFF at 25–40 lux.
• Manual Override: Convenient button switches between automatic sensor operation and Always ON mode.
• Pre-Set Timer: Provides a 3-minute activation period when motion is detected.
• Blue LED Indicator: Integrated LED provides an activity or location indication.
• Flexible Cable Entry: Multiple 20mm cable entry and exit points allow convenient installation.
• Installer-Friendly Design: Built-in mounting screws simplify fitting.
• Lighting Compatibility: Supports loads up to 400W incandescent or 200W LED.

Technical Specifications:

• Brand: Knightsbridge
• Product Code: OPPIRS
• Product Type: Outdoor PIR Sensor Switch with Photocell
• IP Rating: IP66
• Impact Rating: IK06
• PIR Detection Angle: 120°
• Detection Range: Up to 5m
• Activation Time: 3 Minutes (Pre-Set)
• Photocell ON Level: 5–20 Lux
• Photocell OFF Level: 25–40 Lux
• Maximum Incandescent Load: 400W
• Maximum LED Load: 200W
• Operating Modes: PIR Sensor / Always ON
• LED Indicator: Blue
• Housing Material: High-Impact Polycarbonate
• Cable Entries: Multiple 20mm Entry/Exit Points
