Kewtech KT64DL Digital Multifunction 7-in-1 with EV, SPD Tests & KEWEVA (EV Charging Point Testing Adapter)
Kewtech KT64DL Digital Multifunction Tester with EV & SPD Tests – Includes KEWEVA EV Charging Point Adapter
Product Overview
The Kewtech KT64DL Digital Multifunction Tester is the UK’s smallest and most advanced 7-in-1 MFT, combining precision, reliability, and versatility in one compact unit. Designed for electricians and engineers, it delivers accurate testing for EV charge points, surge protection devices (SPD), RCDs, insulation, continuity, loop impedance, and more. Featuring True 6mA DC testing for EV applications and a robust, fast-response loop circuit, the KT64DL ensures consistent performance even in complex electrical environments.

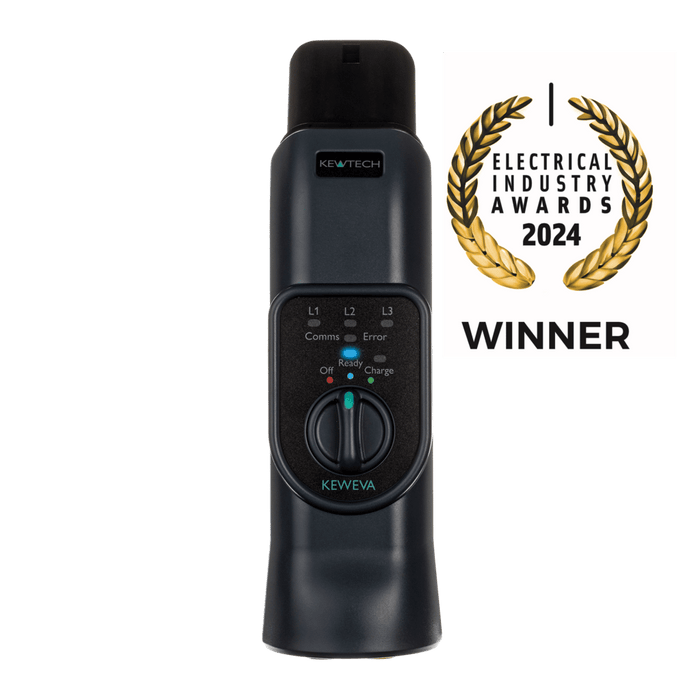

This kit includes the award-winning KEWEVA EV Testing Adapter, voted Domestic Product of the Year 2024 at the Electrical Industry Awards. The KEWEVA adapter allows direct connection to EV charging equipment without additional cables, providing seamless integration for all MFTs capable of EV charge point testing.
Key Benefits

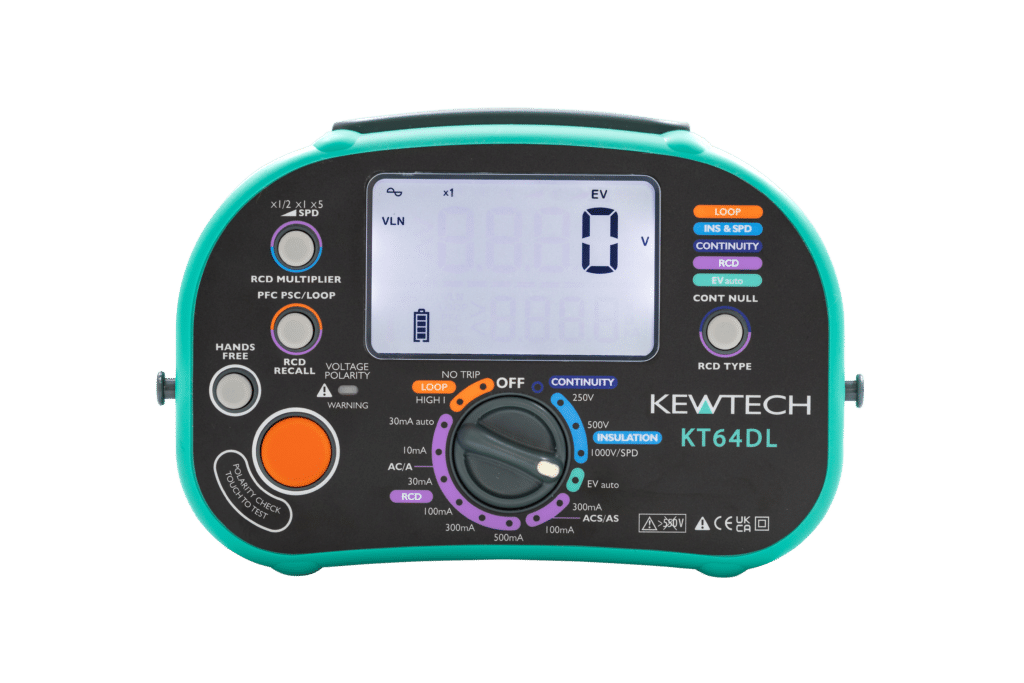

- Simple, user-friendly interface with a single rotary dial and large backlit screen

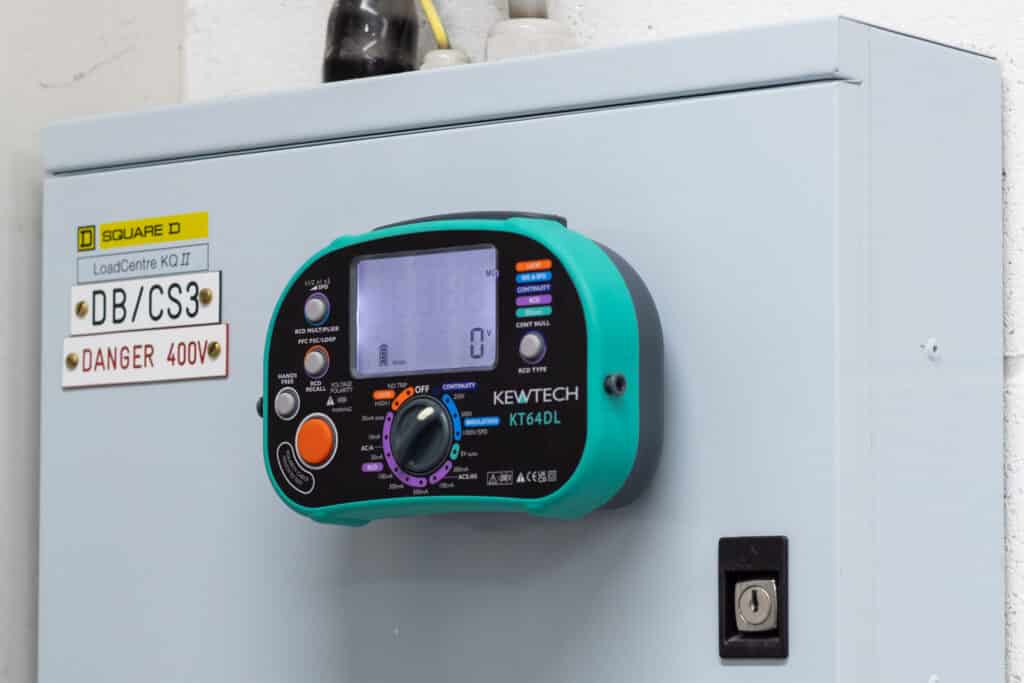

- Magnetic base for hands-free attachment to metal surfaces or cabinets

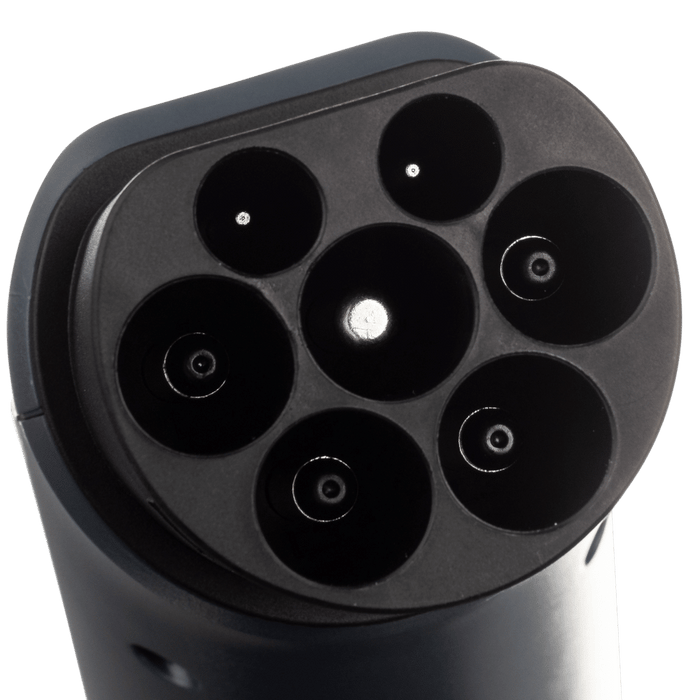

- EV charge point testing capability with included KEWEVA adapter
- New ultra-slim probe tips for access to compact connector blocks
- Continuous live voltage detection for safety during “dead” testing
- No blown fuses – continuous live monitoring prevents circuit damage
- Hands-free electronic lock-down test button for ease of use
- IP54-rated protection even without test leads connected
- Supplied with End-of-line calibration certificate for quality assurance
- Includes KEWEVA adapter, soft carry case, mains and board leads, and neck strap
Key Features
- Continuity: Switchable buzzer with auto-null for lead resistance
- Insulation: 250V, 500V & 1000V tests with voltage warning LED and auto discharge
- Loop testing: High-current 0.001? resolution & low-current ATT (Anti-Trip Technology)
- PSC/PFC: Instant fault current and loop readings with clear indication
- RCD Testing: AC, A, ACS, AS types (auto & ramp modes)
- RCD ranges: 10mA, 30mA, 100mA, 300mA, and 500mA (Type AC); 10mA–300mA (Type A)
- 6mA DC test: For EV charge point safety verification at 0° and 180°
- RCD auto-test mode: For 30mA devices with ramp test functionality
- SPD test: Quick verification of surge protection device performance
- Gold-plated probe tips for enhanced accuracy and reliability
- Automatic test lead nulling for continuity mode
- Polarity check and instant wiring status confirmation

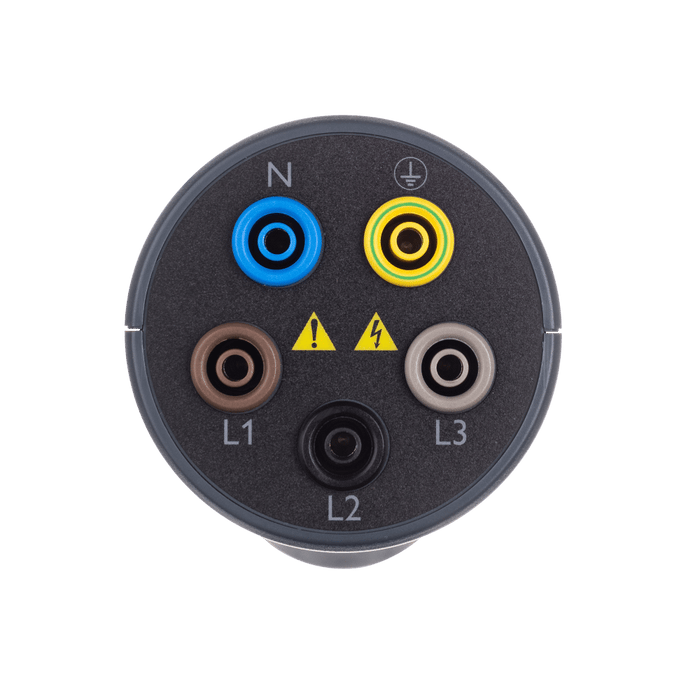

- Standard 4mm connectors rated at 10A for test applications
- Suitable for single and three-phase EV charging equipment
Video Demonstrations

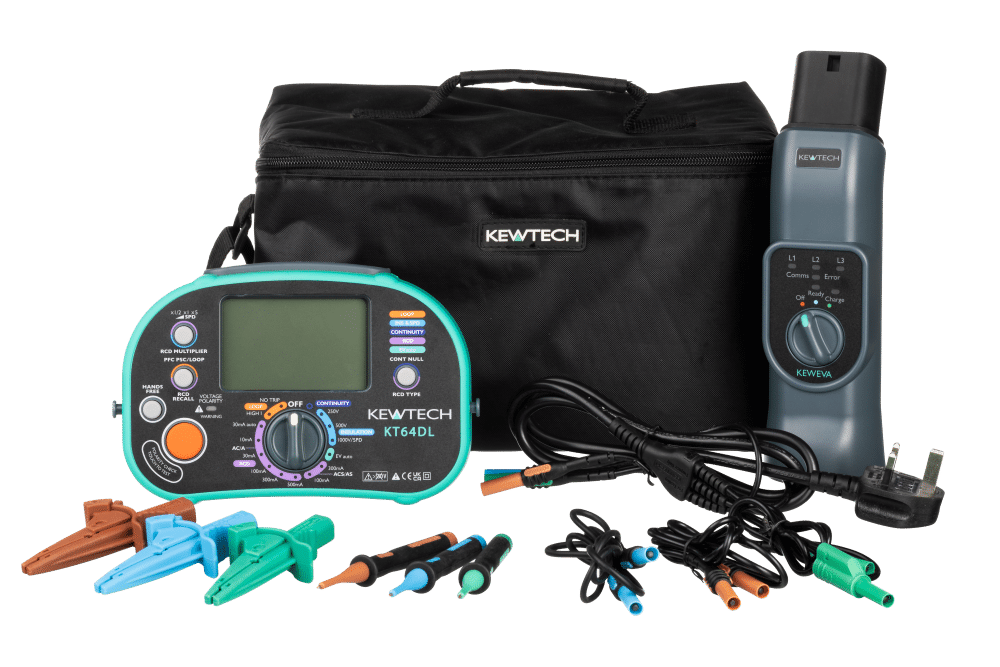

Included in the Kit
- Kewtech KT64DL Multifunction Tester
- KEWEVA EV charge point adapter
- Soft carry case
- Mains lead and distribution board test leads
- Padded neck strap
- Calibration certificate
Downloads
Download KT64DL Data Sheet (PDF)
Download KEWEVA Data Sheet (PDF)
