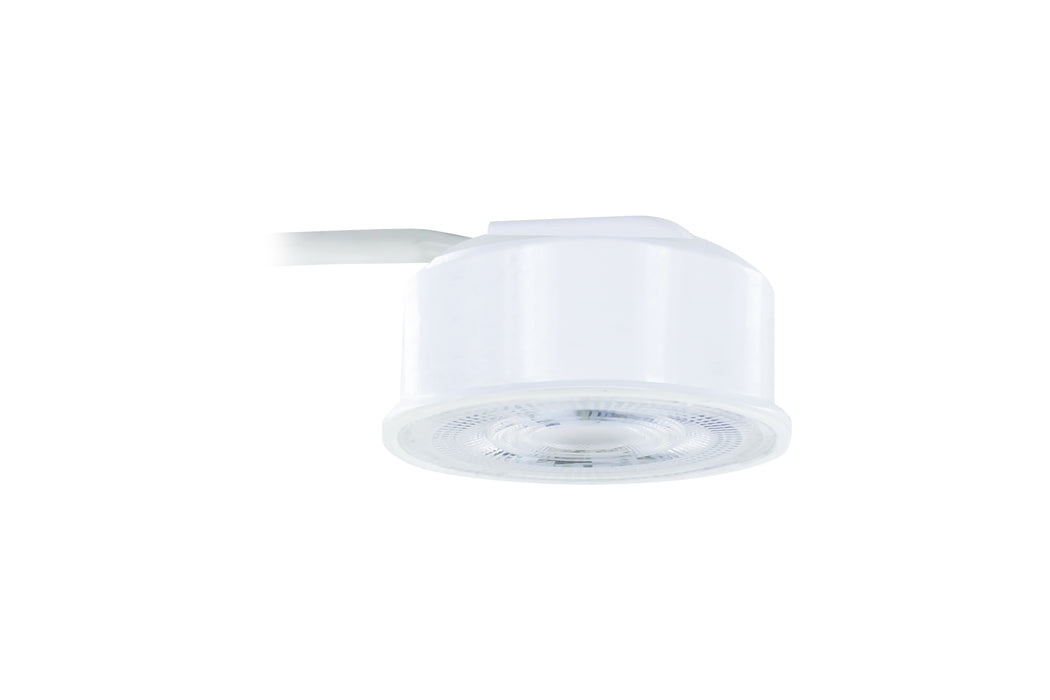

Integral ILMDE002 Evolight LED Module 3.8W 420lm 4000K Cool White Dimmable 36° Beam
Product Description
The Integral ILMDE002 Evolight LED Module is an innovative, energy-efficient lighting solution designed for modern recessed downlight installations. Delivering 420 nominal lumens while consuming just 3.8W, this compact LED module provides bright, cool white illumination and offers a practical alternative to traditional MR16 and GU10 lighting systems.
Featuring a 4000K cool white colour temperature, the Evolight produces crisp, clear lighting suitable for kitchens, bathrooms, offices, utility rooms and commercial interiors. Its 36° beam angle delivers focused directional illumination, making it ideal for task lighting, ceiling spotlights and accent lighting applications.
Designed as a convenient pre-wired 240V LED lighting solution, the Integral Evolight replaces traditional 12V MR16 lamps, lamp holders and transformers, as well as 240V GU10 lamps and holders. This integrated design simplifies lighting upgrades by reducing the need for separate components and providing an efficient, modern alternative to conventional spotlight installations.
With an exceptionally slim 29mm profile, the ILMDE002 is particularly suitable for installations where ceiling void space is restricted. Its low-profile construction helps avoid obstructions above the ceiling, while the supplied 28cm connection cable provides additional flexibility during installation.
The Integral ILMDE002 Evolight features dimmable LED technology, allowing brightness adjustment when connected to a compatible dimmer. It can also operate in compatible non-dimming installations and is designed for use with suitable canless downlights, including the Integral LED Evofire+ range.
Key Features
-
Energy-Efficient LED Technology: Consumes just 3.8W while delivering 420 nominal lumens of illumination.
-
Cool White Light: 4000K colour temperature provides crisp, clear lighting for residential and commercial environments.
-
345 Useful Lumens: Produces effective directional illumination with 420 nominal lumens.
-
Dimmable Functionality: Allows adjustable brightness when used with compatible LED dimming controls.
-
36° Beam Angle: Provides focused lighting suitable for recessed downlights, task lighting and accent illumination.
-
Pre-Wired 240V Design: Offers a convenient integrated lighting solution without requiring a separate 12V transformer.
-
Versatile Lamp Replacement: Designed to replace compatible 12V MR16 lamps, holders and transformers, or 240V GU10 lamps and holders.
-
Ultra-Slim 29mm Profile: Ideal for installations with limited ceiling void space.
-
28cm Connection Cable: Supplied pre-wired to simplify installation and provide positioning flexibility.
-
Integral Evofire+ Compatibility: Suitable for use with compatible Integral LED Evofire+ downlight fittings.
-
Flexible Lighting Applications: Suitable for compatible canless downlight systems and non-dimming installations.
Technical Specifications
-
Brand: Integral LED
-
Product Code: ILMDE002
-
Product Range: Evolight
-
Product Type: Pre-Wired LED Downlight Module
-
Wattage: 3.8W
-
Nominal Luminous Flux: 420lm
-
Useful Luminous Flux: 345lm
-
Colour Temperature: 4000K
-
Light Colour: Cool White
-
Beam Angle: 36°
-
Dimmable: Yes
-
Operating Voltage: 240V
-
Module Height: 29mm
-
Supplied Cable Length: 28cm
-
Compatible Range: Integral LED Evofire+
Applications
The Integral ILMDE002 Evolight LED module is suitable for a wide range of indoor lighting applications, including:
- Kitchen recessed downlights and task lighting
- Bathroom lighting with suitably rated downlight fittings
- Office, workspace and commercial lighting
- Utility rooms, hallways and corridors
- Retail displays and showroom illumination
- Ceiling installations with restricted void space
- Replacement of compatible MR16 and GU10 lighting systems
- Integral LED Evofire+ downlight installations
Data Sheet
View Integral ILMDE002 Evolight Product Data Sheet
