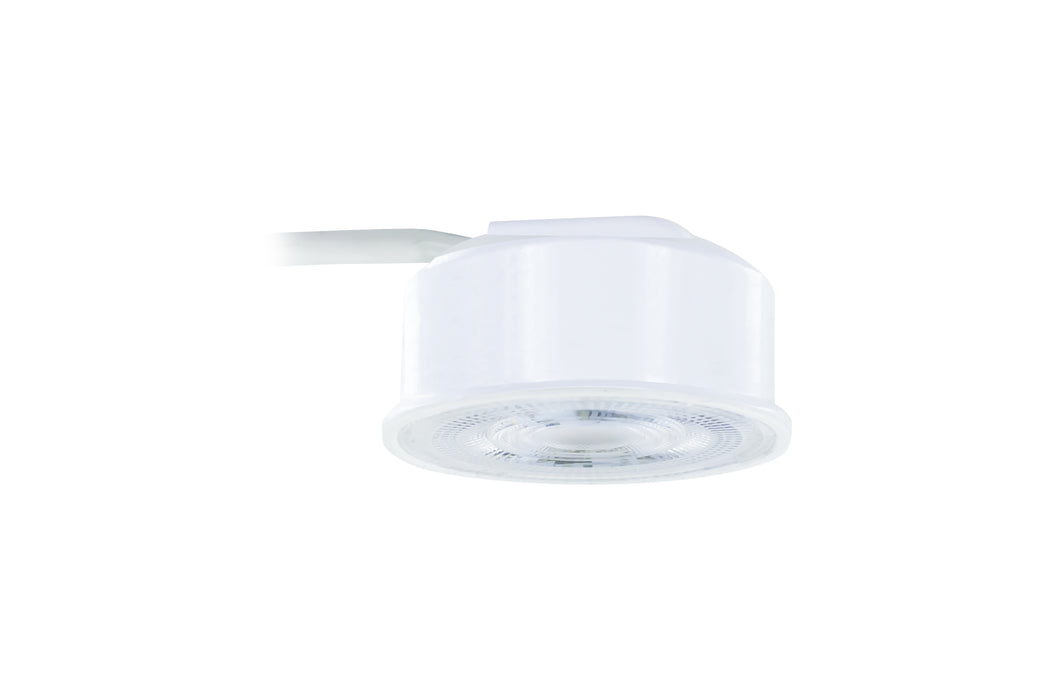

Integral ILMDC001 Evolight LED Module 3.8W 410lm 2700K Warm White Dimmable 36° Beam
Product Description
The Integral ILMDC001 Evolight LED Module is an innovative, energy-efficient lighting solution designed to simplify downlight installations and upgrades. Delivering 410 nominal lumens while consuming just 3.8W, this compact LED light source produces a warm white illumination suitable for residential and commercial interiors.
Featuring a 2700K warm white colour temperature, the Evolight creates a comfortable and welcoming atmosphere, making it ideal for living rooms, bedrooms, dining areas and hospitality environments. Its 36° beam angle provides focused directional lighting, while the dimmable functionality allows users to adjust brightness when connected to a compatible dimmer.
Designed as a convenient pre-wired 240V lighting solution, the Integral Evolight can replace traditional 12V MR16 lamps together with their lamp holders and transformers, as well as 240V GU10 lamps and holders. This integrated design helps simplify lighting upgrades by reducing the number of separate components required.
With an exceptionally low-profile height of just 29mm, the ILMDC001 is particularly useful for installations with restricted ceiling void space. Its compact construction helps avoid obstructions above the ceiling, while the supplied 28cm cable provides flexibility during installation.
The Integral Evolight is suitable for compatible canless downlight applications and is designed to work with the Integral LED Evofire+ range. Combining efficient LED performance, convenient installation and adjustable illumination, it offers a practical solution for modern recessed lighting systems.
Key Features
-
Energy-Efficient LED Technology: Consumes just 3.8W while producing 410 nominal lumens of light.
-
Warm White Illumination: 2700K colour temperature creates a comfortable and inviting atmosphere.
-
345 Useful Lumens: Provides effective directional illumination with 410 nominal lumens.
-
Dimmable Functionality: Allows adjustable brightness when used with a compatible dimming control.
-
36° Beam Angle: Delivers focused lighting suitable for recessed downlights and accent lighting.
-
Pre-Wired 240V Design: Offers a convenient integrated lighting solution without requiring a separate 12V transformer.
-
Versatile Replacement: Designed to replace traditional 12V MR16 lamps, lamp holders and transformers, or 240V GU10 lamps and holders.
-
Ultra-Slim Profile: Just 29mm high, making it suitable for installations with limited ceiling void space.
-
28cm Connection Cable: Supplied with a pre-wired cable to assist installation.
-
Evofire+ Compatibility: Suitable for use with compatible Integral LED Evofire+ downlight fittings.
-
Flexible Installation: Suitable for compatible canless downlight systems, including non-dimming applications.
Technical Specifications
-
Brand: Integral LED
-
Product Code: ILMDC001
-
Product Range: Evolight
-
Product Type: Pre-Wired LED Downlight Module
-
Wattage: 3.8W
-
Nominal Luminous Flux: 410lm
-
Useful Luminous Flux: 345lm
-
Colour Temperature: 2700K
-
Light Colour: Warm White
-
Beam Angle: 36°
-
Dimmable: Yes
-
Operating Voltage: 240V
-
Module Height: 29mm
-
Supplied Cable Length: 28cm
-
Compatible Range: Integral LED Evofire+
Applications
The Integral ILMDC001 Evolight LED module is suitable for a variety of indoor lighting installations, including:
- Living room and bedroom recessed downlights
- Kitchen and dining room spotlight installations
- Hotels, restaurants and hospitality lighting
- Hallways, corridors and entrance areas
- Ceiling installations with restricted void space
- Replacement of compatible MR16 and GU10 lighting systems
- Integral LED Evofire+ downlight installations
Data Sheet
View Integral ILMDC001 Evolight Product Data Sheet
