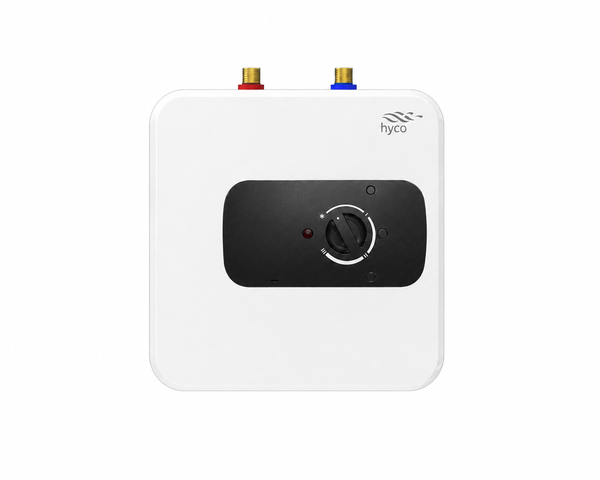

Hyco SF15L1SS Speedflow 15L Unvented Water Heater 1.2kW - Stainless Steel, ErP A Rated
Product Description
The Hyco SF15L1SS Speedflow 15L Unvented Water Heater is a compact and energy-efficient solution for providing mains pressure hot water to multiple outlets. Equipped with a 15-litre stainless steel tank and 1.2kW heating element, this lower-load model is particularly suitable for installations where electrical capacity is limited.
Ideal for kitchens and cloakrooms in offices, shops, student accommodation, domestic extensions and similar environments, a single Speedflow Stainless heater can supply hot water to up to three basins. Its compact design allows discreet installation within an under-sink kitchen cupboard, making it an excellent choice where available space is restricted.
The SF15L1SS combines an ErP A energy efficiency rating with external temperature adjustment and frost protection for convenient everyday operation. Its durable stainless steel water tank provides dependable performance, while mains pressure operation means the heater can be used with standard taps, including mixer taps.
Key Features & Benefits
- 15-litre unvented water heater for convenient stored hot water
- 1.2kW heating element suitable for restricted electrical load applications
- ErP A rated for energy efficiency
- Suitable for supplying hot water to up to three basins
- Provides mains pressure flow rates
- Durable stainless steel water tank
- External temperature control for convenient adjustment
- Frost protection setting when the power supply is switched on
- Neon heating element indicator
- Compact design ideal for under-sink kitchen cupboards
- Can be installed above or below a sink
- Suitable for floor-standing or wall-mounted installation
- Compatible with regular taps, including mixer taps
- Supplied with 1.5m pre-wired cable
- IPX4 rated
- Optional thermostatic mixing valve available separately
- Alternative 2.0kW and 3.0kW Speedflow variants available
- Not suitable for hair-wash basins in hairdressing salons
Technical Specifications
-
Model: SF15L1SS
-
Capacity: 15 litres
-
Heating Element: 1.2kW
-
Outer Casing: Easy-clean, high-impact plastic
-
Heating Element Type: Stainless steel flange type
-
Thermostat: Bulb type, adjustable up to 75°C
-
Water Tank: Stainless steel
-
Anode: Replaceable grey magnesium anode
-
Insulation: High-density polyurethane foam
-
IP Rating: IPX4
-
Minimum Water Pressure: 0.5 bar
-
Maximum Water Pressure: 4.2 bar
-
Water Connections: 2 x 1/2" BSP male
-
Connection Spacing: 100mm centre-to-centre
-
Cable: 1.5m pre-wired
-
Installation: Floor-standing or wall-mounted
-
Approvals: CE, UKCA and WRAS
Safety & Protection
- Manual-reset overheat temperature protection
- Supplied pressure relief valve set at 6 bar must be fitted in every installation
- Frost protection provided when the heater remains powered
- Optional thermostatic mixing valve can be used to maintain a constant and safe hot water temperature at the outlet
Installation Requirements
- Must be installed by a suitably qualified person
- Can be positioned above or below the sink, but the inlet and outlet connections must remain at the top
- Flexible hoses are recommended for connection to facilitate future maintenance
- The thermal cut-out is located behind the front panel of the unit
- Requires 2 x 15mm compression to 1/2" BSP female adaptors – not supplied
- Electrical installation must comply with current IET regulations
- The heater should be connected to the property's fixed wiring through a suitably rated isolating switch with at least 3mm contact separation in all poles
Water Regulations & Accessories
Additional accessories may be required to comply with Water Regulations. A pressure reducing valve is required where the incoming water pressure exceeds 4.2 bar. An expansion vessel and check valve are required where there is a nearby cold water draw-off. Suitable Speedflow accessory kits are available separately.
Warranty
- 5-year tank warranty
- 3-year parts or replacement warranty on electrical components
Maintenance Note
The replaceable grey magnesium anode should be inspected at least annually and more frequently in areas with scale-forming or aggressive water conditions.
