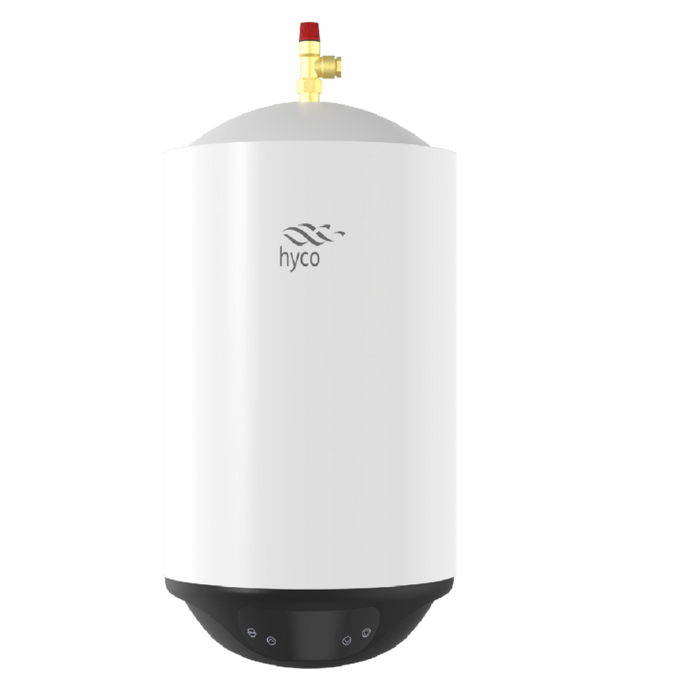

Hyco PF50LS Powerflow Smart 50L Unvented Multipoint Water Heater 3.0kW with Anti-Legionella Mode

Product Description

The Hyco PF50LS Powerflow Smart 50L Unvented Multipoint Water Heater is an energy-efficient hot water solution designed to deliver reliable mains pressure hot water to multiple outlets. Featuring a 50-litre capacity and powerful 3.0kW heating element, it is ideal for handwashing, washing-up and other everyday hot water requirements.

Suitable for kitchens, schools, restaurants, washrooms, healthcare environments, offices and a wide range of commercial, light industrial and light domestic applications, the PF50LS combines intelligent controls with a practical slimline, wall-mounted design.

Smart technology helps improve energy efficiency, while Hyco's patented design reduces the immediate mixing of incoming cold water with the stored hot water, helping to maximise the amount of usable hot water available. The heater offers Standard, Smart and Eco operating modes, with Eco mode operating at 50°C for efficient everyday use.

For enhanced stored water hygiene, the PF50LS incorporates an anti-legionella mode. When enabled, the heater automatically raises the internal water temperature to 65°C and maintains this temperature for one hour every two weeks.

Key Features & Benefits

• 50-litre unvented multipoint water heater
• Designed to provide mains pressure hot water to multiple outlets
• 3.0kW heating element for fast heat-up
• Anti-legionella mode for improved stored water hygiene
• Anti-legionella cycle heats the internal water to 65°C for one hour every two weeks when enabled
• Three operating modes: Standard, Smart and Eco
• Eco mode operates at 50°C
• Smart technology designed for improved energy efficiency
• Patented technology helps prevent incoming cold water from immediately mixing with stored hot water
• Digital control panel for convenient operation
• External electronic temperature control
• Electronic thermostat adjustable from 30°C to 70°C
• Neon heating element indicator
• Slender, slimline design
• Durable glass-lined steel water tank
• Supplied with 1.5m pre-wired cable
• Wall-mounted design with connections positioned at the base
• Suitable for use with regular taps, including mixer taps
• Provides mains pressure flow rates
• Supplied complete with the required unvented accessory kit
• Optional Flow Through Kits available separately
• Optional thermostatic mixing valve available separately
• ErP energy rating: B
• IPX4 rated

Technical Specifications

• Model: PF50LS
• Capacity: 50 litres
• Heating Element: 3.0kW
• Outer Casing: White powder-coated steel
• Heating Element Material: Stainless steel Incoloy
• Thermostat: Electronic, 30°C–70°C
• Water Tank: Glass-lined steel
• Anode: Replaceable grey magnesium anode
• Insulation: High-density CFC-free polyurethane foam
• IP Rating: IPX4
• Minimum Water Pressure: 1 bar
• Maximum Water Pressure to Pressure Reducing Valve: 12 bar
• Working Water Pressure: 3 bar
• Inlet/Outlet Connection: 1/2" BSP male
• Connection Spacing: 100mm centre-to-centre
• Installation: Vertical wall mounting with inlet and outlet connections at the base
• Approvals: CE, UKCA, KIWA Reg 4 and G3 Building Regulations

Safety & Protection

• Manual-reset overheat temperature protection
• Factory-fitted temperature and pressure relief valve set at 7 bar / 90°C
• Pressure reducing valve set at 3 bar
• Pressure relief valve at 6 bar
• Can be used with a thermostatic mixing valve to maintain a constant and safe hot water temperature at the outlet

Unvented Accessory Kit

The supplied unvented accessory kit must be fitted during installation. For the PF50LS, the kit includes a 5-litre expansion vessel with fixing bracket, inlet group manifold incorporating a pressure relief valve, pressure reducing valve, check valve and balanced off-take, flexible hose and two tundishes.

Installation Requirements

• Must be installed by a suitably qualified person
• Must be wall mounted vertically with the inlet and outlet connections at the base
• Allow at least 500mm clearance below and 200mm above the heater for future maintenance
• Access to the thermal cut-out and heating element is located at the base of the unit
• Requires 2 x 15mm compression to 1/2" BSP female adaptors – not supplied
• Electrical installation must comply with current IET regulations
• The heater should be connected to the property's fixed wiring through a suitably rated isolating switch with at least 3mm contact separation in all poles

Warranty

• 2-year parts or replacement warranty on electrical components
• 5-year tank warranty

Maintenance Note

The replaceable grey magnesium anode should be inspected at least annually and more frequently in areas with scale-forming or aggressive water conditions.
