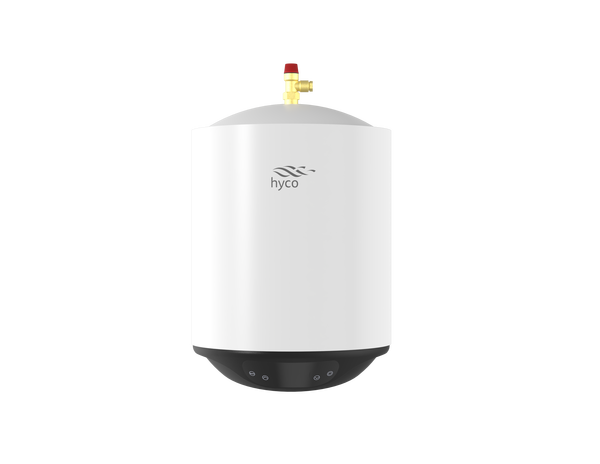

Hyco PF30LS Powerflow Smart 30L Unvented Multipoint Water Heater 3.0kW with Anti-Legionella Mode

Product Description

The Hyco PF30LS Powerflow Smart 30L Unvented Multipoint Water Heater is an energy-efficient hot water solution designed to supply reliable mains pressure hot water to multiple outlets. With a powerful 3.0kW heating element, intelligent operating modes and a 30-litre capacity, it is ideal for handwashing, washing-up and other everyday hot water requirements.

Suitable for kitchens, washrooms, schools, restaurants, healthcare environments, offices and other commercial or light domestic applications, the PF30LS combines smart energy management with a practical slimline, wall-mounted design.

Its patented technology helps prevent incoming cold water from immediately mixing with the stored hot water, increasing the amount of usable hot water available. Three operating modes – Standard, Smart and Eco – allow the heater to adapt to different usage requirements, while Eco mode operates at 50°C to help reduce unnecessary energy consumption.

For improved water hygiene, the PF30LS includes an anti-legionella mode. When enabled, the heater automatically raises the internal water temperature to 65°C and maintains it for one hour every two weeks.

Key Features & Benefits

• 30-litre unvented multipoint water heater for supplying multiple outlets
• Powerful 3.0kW heating element for fast heat-up
• Anti-legionella mode for improved stored water hygiene
• Automatically heats water to 65°C for one hour every two weeks when anti-legionella mode is enabled
• Three operating modes: Standard, Smart and Eco
• Eco mode operates at 50°C
• Smart technology designed to improve energy efficiency
• Patented technology helps minimise immediate mixing of incoming cold water with stored hot water
• Digital control panel for convenient operation
• External electronic temperature control
• Electronic thermostat adjustable from 30°C to 70°C
• Neon heating element indicator
• Slender, slimline design for wall-mounted installation
• Durable glass-lined steel water tank
• Supplied with 1.5m pre-wired cable
• Base-positioned water connections
• Suitable for use with regular taps, including mixer taps
• Provides mains pressure flow rates
• Supplied complete with the required unvented accessory kit
• Optional thermostatic mixing valve available separately
• Compatible Flow Through Kits available separately
• ErP energy rating: A
• IPX4 rated

Technical Specifications

• Model: PF30LS
• Capacity: 30 litres
• Heating Element: 3.0kW
• Outer Casing: White powder-coated steel
• Heating Element Material: Stainless steel Incoloy
• Thermostat: Electronic, 30°C–70°C
• Water Tank: Glass-lined steel
• Anode: Replaceable grey magnesium anode
• Insulation: High-density CFC-free polyurethane foam
• IP Rating: IPX4
• Minimum Water Pressure: 1 bar
• Maximum Water Pressure to Pressure Reducing Valve: 12 bar
• Working Water Pressure: 3 bar
• Inlet/Outlet Connection: 1/2" BSP male
• Connection Spacing: 100mm centre-to-centre
• Installation: Vertical wall mounting with inlet and outlet connections at the base
• Approvals: CE, UKCA, KIWA Reg 4 and G3 Building Regulations

Safety & Protection

• Manual-reset overheat temperature protection
• Factory-fitted temperature and pressure relief valve set at 7 bar / 90°C
• Pressure reducing valve set at 3 bar
• Pressure relief valve at 6 bar
• A thermostatic mixing valve can be used to maintain a safe and consistent hot water temperature at the outlet

Unvented Accessory Kit

The supplied unvented accessory kit must be fitted during installation. For the PF30LS, the kit includes a 5-litre expansion vessel with fixing bracket, inlet group manifold incorporating a pressure relief valve, pressure reducing valve, check valve and balanced off-take, flexible hose and two tundishes.

Installation Requirements

• Must be installed by a suitably qualified person
• Must be wall mounted vertically with water connections at the base
• Allow at least 500mm clearance below and 200mm above the heater for future maintenance
• Access to the thermal cut-out and heating element is located at the base of the unit
• Requires 2 x 15mm compression to 1/2" BSP female adaptors – not supplied
• Electrical installation must comply with current IET regulations
• Connect to the property's fixed wiring via a suitably rated isolating switch with at least 3mm contact separation in all poles

Warranty

• 2-year parts or replacement warranty on electrical components
• 5-year tank warranty

Maintenance Note

The replaceable grey magnesium anode should be inspected at least annually and more frequently in areas with scale-forming or aggressive water conditions.

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
