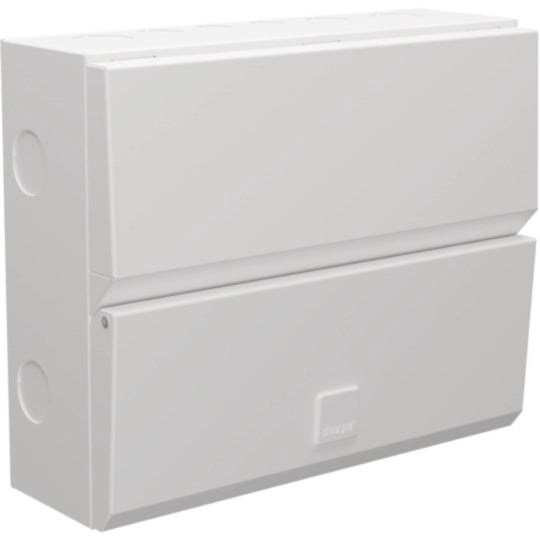

Hager VME410AH Design Evo 10 Way 63A 30mA Type A RCD Incomer Consumer Unit

The Hager VME410AH Design Evo Consumer Unit is a premium 10 way distribution board featuring a 63A 30mA Type A RCCB incomer. Designed for modern residential installations, this consumer unit provides dependable residual current protection across all outgoing circuits and is particularly suited to sub-distribution applications where shared RCD protection is required.

As part of Hager's Design Evo range, the VME410AH is specifically engineered for installations where the consumer unit is located within a living area. Its non-combustible metal enclosure, practical cable management features and spacious wiring layout help simplify installation while supporting compliance with BS 7671 and BS EN 61439-3 requirements. :contentReference[oaicite:1]{index=1}

Key Features

• 10 way consumer unit with 63A 30mA Type A RCCB incomer
• Provides 30mA residual current protection for all outgoing circuits
• Type A RCCB suitable for circuits containing electronic equipment
• Designed for residential and domestic applications
• Ideal as a sub-distribution board
• Metal enclosure manufactured to BS EN 61439-3 standards
• Cable clamp secures incoming supply cables and meter tails
• Round cable entry points on the top, bottom and sides
• Rear knockouts supplied with cable protector plate
• Rigid top wall construction reduces enclosure distortion
• Full metal DIN rail for secure device mounting
• Quick-release MCB clips allow device removal with busbar in place
• Optimised internal wiring space for easier installation
• Top-mounted neutral and earth terminal rails provide neat cable routing
• Locate-and-hold cover simplifies installation
• Retained cover screws prevent accidental loss
• Torque settings clearly displayed inside the cover

Technical Specifications

• Product Code: VME410AH
• Range: Hager Design Evo
• Ways: 10 Way
• Incomer Type: Type A RCCB
• RCCB Rating: 63A
• Residual Current Rating: 30mA
• Rated Operational Voltage (Un/Ue): 230V AC, 50Hz
• Rated Insulation Voltage (Ui): 320V AC
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Rated Assembly Current (InA): Up to 63A
• Outgoing Device Ratings: MCBs 6A–63A
• Conditional Short Circuit Rating (Icc): 16kA RMS at 250V
• Ingress Protection: IP2XC
• Impact Resistance: IK05
• Pollution Degree: 2
• Earthing Systems: TN-C-S and TN-S
• Installation Type: Surface Mounted
• Standards: BS EN 61439-3
• EMC Classification: Environment B
• Incoming Line/Neutral Terminal Capacity: 25mm²
• Incoming Earth Terminal Capacity: 16mm²
• Mechanical Impact Protection: IK05
• Warranty: 2 Years

Type A RCCB Protection

The integrated Type A RCCB is designed to detect both alternating current (AC) and pulsating direct current (DC) residual faults. This makes it suitable for modern electrical installations containing electronic devices, appliances and equipment with electronic power supplies.

Compliance with Current Wiring Regulations

The Design Evo range is designed to assist compliance with BS 7671 requirements relating to RCD protection, concealed cable protection and non-combustible consumer unit enclosures. The VME410AH provides a reliable and compliant solution for domestic sub-distribution and residential electrical installations.

Available Accessories

• VM02CE Cable Protector Plate – Protects cables entering through the rear of the enclosure
• VM01SP Rear Stand-Off Plates – Allow rear cable entry for surface-mounted cable installations

Ideal Applications

• Residential sub-distribution boards
• Garage and workshop supplies
• Home extensions and annexes
• Domestic refurbishments
• Small commercial outbuildings
• Installations requiring shared RCCB protection

Reliable Protection for Domestic Installations

The Hager VME410AH Design Evo Consumer Unit combines dependable Type A RCCB protection, practical installation features and durable metal construction. Designed for modern residential electrical systems, it provides a professional and compliant solution for sub-distribution and domestic circuit protection.

Data Sheet:
Download the Hager VME410AH Data Sheet

Instruction Manual:
Download the Hager Design Evo Installation Instructions
