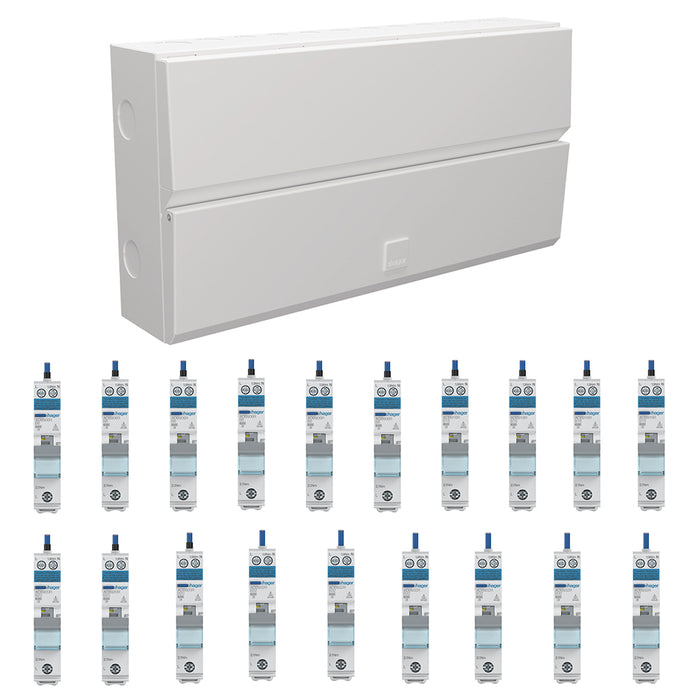

Hager VME119SPD 19 Way 100A Main Switch Consumer Unit with T2 SPD + 19 Bi-Directional RCBOs

Name: Hager VME119SPD 19 Way 100A Main Switch Consumer Unit with T2 SPD + 19 Bi-Directional RCBOs
Brand: Hager
SKU: VME119SPD+19ADB
Price: 382.0 GBP
Availability: InStock

Availability:

Dispatch in 2-3 Days

SKU VME119SPD+19ADB

£382.00 - £382.00

£318.33

Exc VAT

£382.00

Inc VAT

£382.00 - £382.00

£382.00

£318.33 - £318.33

£382.00

Product Description

Customer Reviews

Hager VME119SPD 19 Way 100A Main Switch Consumer Unit with T2 SPD + 19 Bi-Directional RCBOs

9 Way 100A Switch Disconnector Incomer with Factory Fitted Single Mod Type II SPD

This comes with 19 Bi-Directional RCBOs 1P+N, B Curve, 6kA, 30mA, Type A

6x 6A (ADB906R)
4x 16A (ADB916R)
3x 20A (ADB920R)
6x 32A (ADB932R)

Dimensions (HxWxD)mm for VME119SPD: 472 x 204 x 102.5mm

Circuit Protection

Design Evo is the board for use in applications where the consumer unit is located in a living area of the dwelling.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
Protection against transient over voltages, provided by factory fitted type 2 SPD.

Characteristics:

Cable clamp - Secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
Round cable entry points top, bottom and sides
Rear Knockouts for ease of cable entry – Cable protector plate provided
Rigid top wall – Enhances rigidity to prevent distortion when removing knockouts
Locate and hold cover - allows use of both hands whilst fixing cover
Front cover retained screws – Prevents loss during installation
Quick release clip on MCB/RCBO – Allows removal of MCB/RCBO with busbar still in place
Optimised cabling space – DIN rail position allows maximum cabling space
Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple.
Torque settings displayed inside front cover so they’re easily accessible by the electrician.
Type 2 Surge protection factory fitted
Full metal DIN rail – Secure and stable attachment of devices Design Evo Switch Disconnector Incomer Consumer Unit with SPD
Single row references have a 116A InA.

Data Sheet:

Data Sheet for VME119SPD

Hager NEW Design Evo Brochure:

Click Here for Hager NEW Design Evo Brochure:
