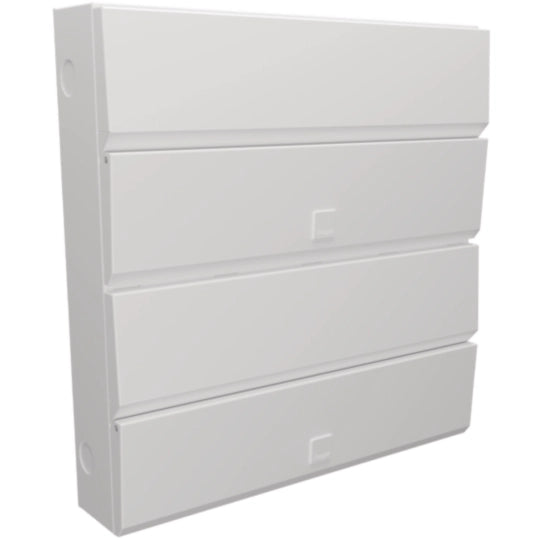

Hager VME11920SPD Design Evo 19+20 Way Dual Row 100A Main Switch Consumer Unit with Type 2 SPD
The Hager VME11920SPD Design Evo Consumer Unit is a premium high-capacity dual-row distribution board designed for large domestic electrical installations. Featuring a 19+20 way configuration, integrated 100A main switch and factory-fitted Type 2 Surge Protection Device (SPD), this advanced consumer unit delivers exceptional circuit capacity, enhanced safety and reliable protection for modern homes.
Part of Hager's innovative Design Evo range, the VME11920SPD is specifically engineered for installations located within living areas. Its robust metal enclosure, spacious wiring area and installer-focused design features help simplify installation while ensuring compliance with current wiring regulations and residential fire safety requirements. :contentReference[oaicite:1]{index=1}
Key Features
- 19+20 way dual-row consumer unit with integrated 100A main switch
- Factory-fitted Type 2 Surge Protection Device (SPD)
- Dual-row configuration providing 39 usable outgoing ways
- Designed for modern residential electrical installations
- Supports compliance with BS 7671:2022 circuit segregation requirements
- Robust metal enclosure designed to meet current fire safety regulations
- Integrated cable clamp secures incoming meter tails and supply cables
- Round cable entry points on the top, bottom and sides
- Rear knockouts supplied for flexible cable routing
- Rigid top wall construction enhances enclosure strength
- Full metal DIN rails provide secure mounting of protective devices
- Quick-release RCBO clips allow removal without disturbing the busbar
- Optimised internal cabling space for easier installation and maintenance
- Top-mounted neutral and earth terminal rails simplify wiring connections
- Locate-and-hold cover feature allows easier installation
- Retained cover screws prevent accidental loss
- Optional locking accessories available for additional security
- Torque settings displayed inside the front cover for installer convenience
Technical Specifications
-
Product Code: VME11920SPD
-
Range: Hager Design Evo
-
Configuration: 19+20 Way Dual Row
-
Main Switch Rating: 100A
-
Rated Assembly Current (InA): 100A
-
Integrated Surge Protection: Type 2 SPD
-
Rated Operational Voltage (Un/Ue): 230V AC, 50Hz
-
Rated Insulation Voltage (Ui): 320V AC
-
Rated Impulse Withstand Voltage (Uimp): 4kV
-
Rated Frequency: 50Hz
-
Outgoing Circuit Ratings: RCBOs 6A–50A
-
Conditional Short Circuit Rating (Icc): 16kA RMS at 250V
-
Ingress Protection: IP2XC
-
Impact Resistance: IK05
-
Pollution Degree: 2
-
Earthing Systems: TN-C-S and TN-S
-
Installation Type: Surface Mounted
-
Standards: BS EN 61439-3
-
EMC Classification: Environment B
-
Incoming Line/Neutral Terminal Capacity: 50mm²
-
Incoming Earth Terminal Capacity: 16mm²
-
Mechanical Impact Protection: IK05
-
Warranty: 2 Years
Integrated Type 2 Surge Protection
The factory-fitted Type 2 SPD helps protect electrical installations against transient overvoltages caused by lightning activity and switching events. This protection is particularly important for modern homes containing sensitive electronic equipment, smart home systems, networking equipment, renewable energy technologies and high-value appliances.
Designed for Modern Wiring Regulations
When fitted with RCBO protection on outgoing circuits, the VME11920SPD supports compliance with BS 7671:2022 requirements for circuit segregation, minimising inconvenience during faults and enhancing overall installation safety. The metal enclosure also supports compliance with domestic fire protection requirements for consumer units.
Available Accessories
-
VMHBL / JK25A Lock & Padlock Kit – Temporary locking during installation and maintenance work
-
VMLOCK Door Locking Kit – Converts the enclosure into a lockable consumer unit
-
VM05GS Grommet Strip – Protects incoming cables from damage
-
VM01SP Rear Stand-Off Plates – Allow rear cable entry for surface-mounted installations
Ideal Applications
- Large domestic properties
- Luxury homes and smart homes
- Multi-circuit residential installations
- Property extensions and major refurbishments
- Renewable energy and battery storage systems
- New-build housing developments
- Installations requiring integrated surge protection
Maximum Capacity and Protection
The Hager VME11920SPD Design Evo Consumer Unit provides exceptional capacity, advanced protection and premium installation features for demanding residential applications. With 39 usable ways, integrated surge protection and Hager's renowned build quality, it is an ideal solution for large and future-ready domestic electrical installations.
