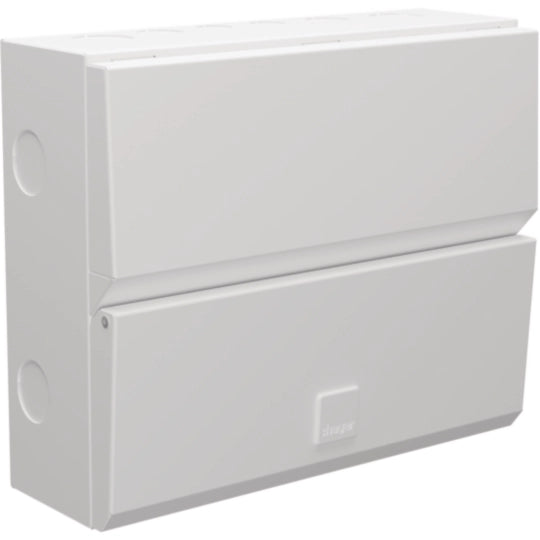

Hager VME110 Design Evo 10 Way 100A Main Switch Consumer Unit

The Hager VME110 Design Evo Consumer Unit is a high-quality 10-way distribution board designed for modern residential electrical installations. Developed specifically for homes where the consumer unit is installed within living areas, the Design Evo range combines an attractive appearance with advanced installer-friendly features and enhanced safety.

Equipped with a 100A main switch and a 116A rated assembly, the VME110 is suitable for installations protected by an upstream overcurrent protection device rated up to 100A. The spacious enclosure, integrated cable management features and quick-release protective device system make installation faster, cleaner and more efficient.

Key Features

• 10 way single-row consumer unit with integrated 100A main switch
• 116A rated assembly for domestic electrical installations
• Designed for installations located within living areas
• Integrated cable clamp secures incoming supply cables and meter tails
• Round cable entry points on the top, bottom and sides
• Rear knockouts with supplied cable protector plate
• Rigid top wall construction minimises distortion during installation
• Full metal DIN rail for secure device mounting
• Quick-release clip system allows RCBO and MCB removal without disturbing the busbar
• Optimised internal cabling space for easier wiring
• Top-mounted neutral and earth terminal rail for neat cable management
• Locate-and-hold cover system for easier installation
• Retained cover screws prevent loss during maintenance
• Torque settings displayed inside the front cover for convenience

Technical Specifications

• Product Code: VME110
• Range: Hager Design Evo
• Type: Main Switch Consumer Unit
• Ways: 10
• Main Switch Rating: 100A
• Rated Assembly Current (InA): 116A
• Rated Operational Voltage (Un/Ue): 230V AC, 50Hz
• Rated Insulation Voltage (Ui): 320V AC
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Rated Frequency: 50Hz
• Conditional Short Circuit Rating (Icc): 16kA RMS at 250V
• Ingress Protection: IP2XC
• Impact Resistance: IK05
• Pollution Degree: 2
• Earthing Systems: TT, TN-C-S and TN-S
• Installation Type: Surface Mounted
• Standards: BS EN 61439-3
• EMC Classification: Environment B
• Incoming Line/Neutral Terminal Capacity: 50mm²
• Incoming Earth Terminal Capacity: 16mm²
• Warranty: 2 Years

Compatible Devices

The VME110 is compatible with a range of Hager protective devices, including:

• ADB4**G Single Module Type A RCBOs (40A–50A)
• ADB9**R Bidirectional RCBOs (6A–32A, Type A)

Optional Accessories

• VM02CE Cable Protector Plate – Protects cables entering through the rear of the enclosure
• VM01SP Rear Stand-Off Plates – Allows surface-mounted cables to enter through the rear of the consumer unit

Ideal Applications

• Domestic consumer unit replacements
• New-build residential developments
• Property refurbishments and rewires
• Homes with renewable energy generation systems
• Single-phase electrical distribution installations

Designed for Modern Residential Installations

The Hager VME110 Design Evo Consumer Unit provides a premium solution for domestic electrical distribution. Combining compliance with BS EN 61439-3, enhanced cable management and practical installation features, it delivers a professional, safe and future-ready consumer unit for modern homes.

Data Sheet:
Download the Hager VME110 Data Sheet

Instruction Manual:
Download the Hager Design Evo Installation Instructions
