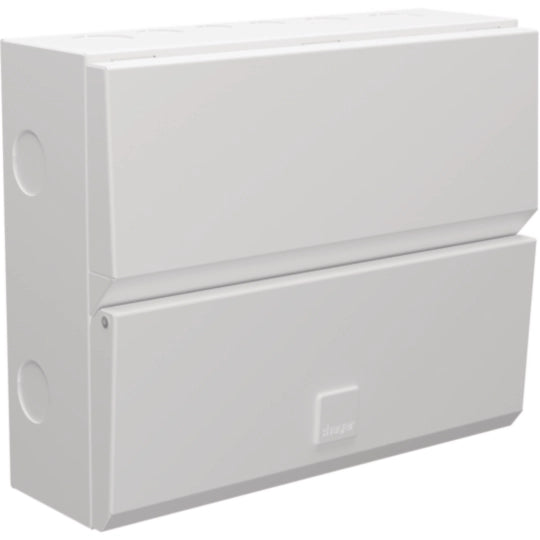

Hager VME109SPD Design Evo 9 Way 100A Main Switch Consumer Unit with Type 2 SPD

The Hager VME109SPD Design Evo Consumer Unit combines advanced circuit protection with integrated surge protection, making it an ideal choice for modern residential electrical installations. Designed for homes where the consumer unit is located within living spaces, the Design Evo range offers a premium appearance alongside innovative installer-friendly features.

Featuring a 100A main switch, a 116A rated assembly and a factory-fitted Type 2 Surge Protection Device (SPD), the VME109SPD helps protect electrical equipment from transient overvoltages caused by lightning strikes and switching events. Its spacious design, enhanced cable management and quick-release protective device mounting system make installation faster, safer and more efficient.

Key Features

• 9 way single-row consumer unit with integrated 100A main switch
• Factory-fitted Type 2 Surge Protection Device (SPD)
• 116A rated assembly suitable for modern domestic installations
• Provides protection against transient overvoltages
• Integrated cable clamp secures incoming meter tails and supply cables
• Round cable entry points on the top, bottom and sides
• Rear knockouts supplied with cable protector plate
• Rigid top wall construction reduces distortion during installation
• Full metal DIN rail for secure mounting of devices
• Quick-release RCBO and MCB clips allow removal without disturbing the busbar
• Optimised wiring space for easier cable management
• Top-mounted neutral and earth terminal rails for tidy wiring
• Locate-and-hold cover design simplifies installation
• Retained cover screws prevent accidental loss
• Torque settings displayed inside the front cover for convenience

Technical Specifications

• Product Code: VME109SPD
• Range: Hager Design Evo
• Type: Main Switch Consumer Unit with Type 2 SPD
• Ways: 9
• Main Switch Rating: 100A
• Rated Assembly Current (InA): 116A
• Rated Operational Voltage (Un/Ue): 230V AC, 50Hz
• Rated Insulation Voltage (Ui): 320V AC
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Rated Frequency: 50Hz
• Conditional Short Circuit Rating (Icc): 16kA RMS at 250V
• Ingress Protection: IP2XC
• Impact Resistance: IK05
• Pollution Degree: 2
• Earthing Systems: TN-C-S, TT and TN-S
• Installation Type: Surface Mounted
• Standards: BS EN 61439-3
• EMC Classification: Environment B
• Incoming Line/Neutral Terminal Capacity (100A Board): 50mm²
• Incoming Earth Terminal Capacity: 16mm²
• Warranty: 2 Years

Factory-Fitted Type 2 Surge Protection

The integrated Type 2 SPD helps protect sensitive electrical equipment and appliances from damaging transient overvoltages. This additional layer of protection is particularly beneficial in modern homes containing valuable electronic devices, smart home technology and renewable energy systems.

Compatible Devices

• ADB4**G Single Module Type A RCBOs (40A–50A)
• ADB9**R Bidirectional RCBOs (6A–32A, Type A)

Available Accessories

• VM02CE Cable Protector Plate – Protects cables entering through the rear of the enclosure
• VM01SP Rear Stand-Off Plates – Allows surface-mounted cabling to enter through the rear of the consumer unit

Ideal Applications

• Domestic consumer unit upgrades
• New-build residential developments
• Homes with smart technology installations
• Properties with renewable energy systems
• Electrical installations requiring surge protection
• Single-phase residential distribution systems

Premium Residential Protection

The Hager VME109SPD Design Evo Consumer Unit delivers comprehensive electrical protection by combining a high-quality consumer unit with integrated Type 2 surge protection. Its robust construction, installer-friendly design and compliance with BS EN 61439-3 make it an excellent choice for modern domestic electrical installations.

Data Sheet:
Download the Hager VME109SPD Data Sheet

Instruction Manual:
Download the Hager Design Evo Installation Instructions
