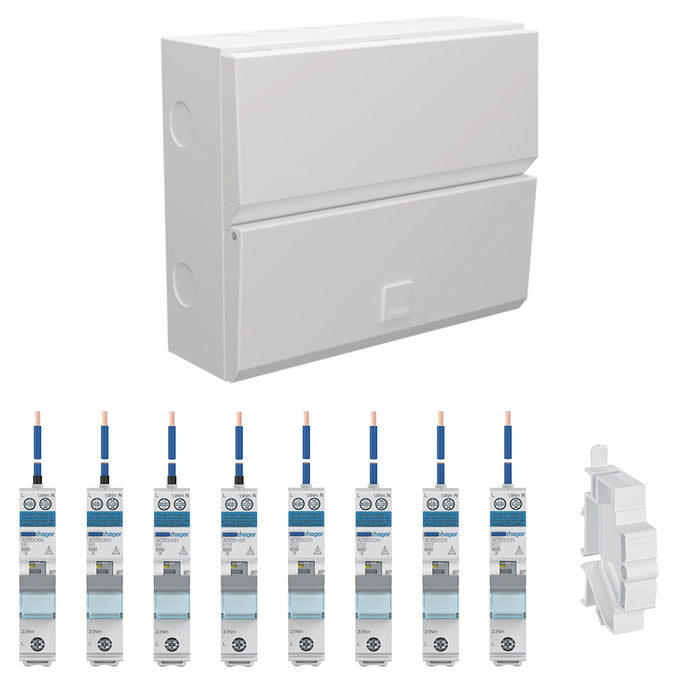

Hager VME109SPD 9 Way 100A Main Switch Consumer Unit with T2 SPD + 8 Bi-Directional RCBOs & 1x FREE Blanks

9 Way 100A Switch Disconnector Incomer with Factory Fitted Single Mod Type II SPD

This comes with 8 Bi-Directional RCBOs 1P+N, B Curve, 6kA, 30mA, Type A

• 3x 6A (ADB906R)
• 1x 16A (ADB916R)
• 4x 32A (ADB932R)
• 1x Bushbar BLANK (JK01B)

Dimensions (HxWxD)mm for VME109SPD: 293 x 204 x 102.5mm

Circuit Protection

Characteristics:

• Cable clamp - Secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
• Round cable entry points top, bottom and sides
• Rear Knockouts for ease of cable entry – Cable protector plate provided
• Rigid top wall – Enhances rigidity to prevent distortion when removing knockouts
• Locate and hold cover - allows use of both hands whilst fixing cover
• Front cover retained screws – Prevents loss during installation
• Quick release clip on MCB/RCBO – Allows removal of MCB/RCBO with busbar still in place
• Optimised cabling space – DIN rail position allows maximum cabling space
• Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple.
• Torque settings displayed inside front cover so they’re easily accessible by the electrician.
• Type 2 Surge protection factory fitted
• Full metal DIN rail – Secure and stable attachment of devices Design Evo Switch Disconnector Incomer Consumer Unit with SPD
• Single row references have a 116A InA.
