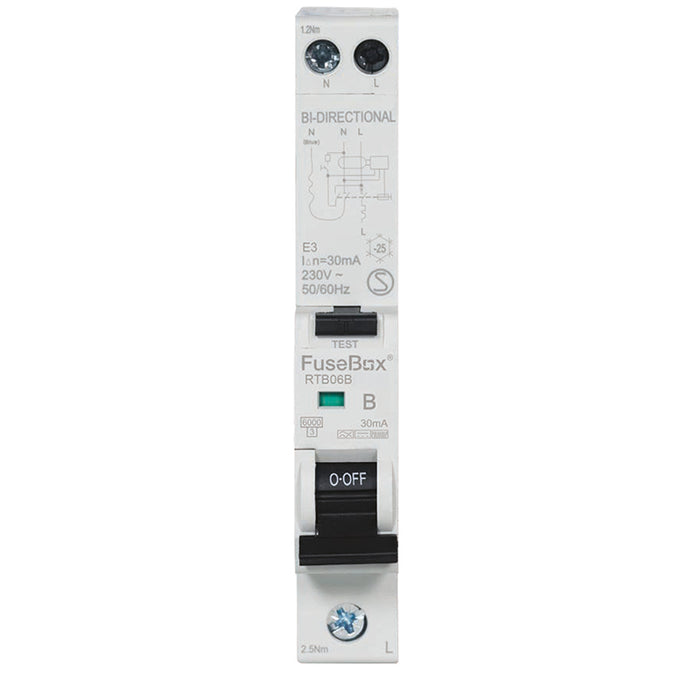

FuseBox RTB06B06BD 6A 1P+N Switched B Curve 6kA 30mA Type B Bi-Directional RCBO

Product Description

The FuseBox RTB06B06BD is a 6A B Curve Type B bi-directional RCBO designed for modern electrical installations incorporating electronic loads and equipment where current may flow in either direction. It combines residual current, overcurrent and short-circuit protection within a single compact protective device.

Featuring 30mA Type B residual current protection, the RTB06B06BD is designed to detect AC, pulsating DC and smooth DC residual fault currents. Its bi-directional operation provides protection regardless of the direction of current flow, making it particularly suitable for applications such as heat pumps, solar PV systems, EV charging equipment and other modern electronic loads.

With a 6A current rating, B Curve tripping characteristic and 6kA short-circuit breaking capacity, this 1P+N switched RCBO provides dependable circuit protection for suitable domestic, commercial and industrial electrical installations.

Key Features & Benefits

• 6A Type B bi-directional RCBO
• B Curve tripping characteristic
• 1P+N switched configuration
• 30mA residual current protection
• 6kA short-circuit breaking capacity
• Bi-directional operation provides protection in either direction of current flow
• Detects AC, pulsating DC and smooth DC residual fault currents
• Combines earth leakage, overcurrent and short-circuit protection in one device
• Suitable for circuits supplying modern electronic equipment
• Ideal for appropriate heat pump, solar PV and EV charging applications
• Suitable for domestic, commercial and industrial installations

Product Specifications

• Brand: FuseBox
• Product Code: RTB06B06BD
• Product Type: Bi-Directional RCBO
• Rated Current: 6A
• Curve: B Curve
• Configuration: 1P+N Switched
• Breaking Capacity: 6kA
• Residual Current Rating: 30mA
• RCD Type: Type B
• Current Flow: Bi-Directional
