FuseBox HTPNSPDT2 Horizontal TPN Distribution Board with 100A 4P Main Switch & Type 2 SPD

Product Description

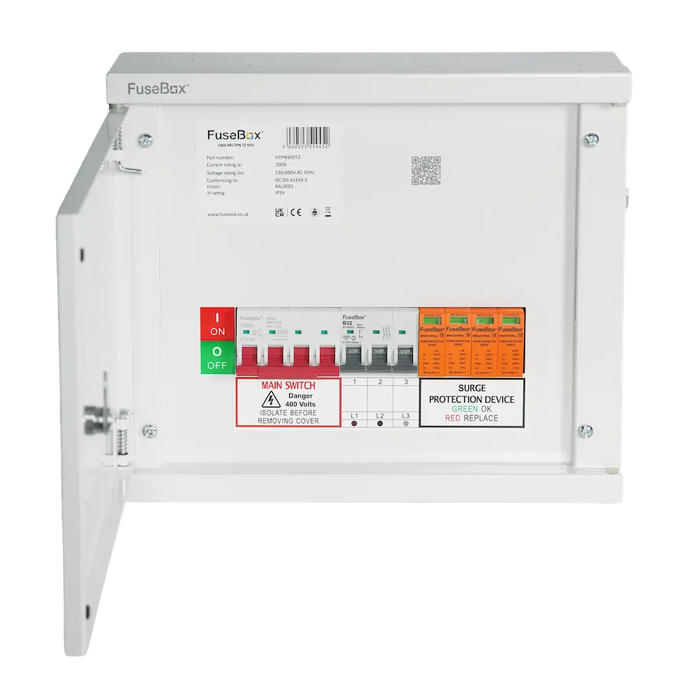

The FuseBox HTPNSPDT2 Horizontal TPN Distribution Board is a compact three-phase distribution solution supplied prepopulated with a 100A 4-pole main switch and Type 2 surge protection device (SPD). Designed for installations where vertical wall space is restricted, its low-profile 295mm-high enclosure is ideal for electrical cupboards, commercial utility areas, industrial environments and other space-limited applications.

The horizontal design provides a spacious internal layout to simplify cable routing, wiring and termination. Installer-friendly features include a fixed horizontal busbar, removable raised DIN rail and aligned earth and neutral bars, providing convenient access and helping achieve a neat and efficient installation.

Manufactured from robust 1.2mm steel with a RAL9001 powder-coated finish, the HTPNSPDT2 features top and bottom gland plates for flexible cable entry. The reversible door can be fitted to either side, while the coin-slot door lock provides secure and convenient access.

Key Features

• Horizontal TPN distribution board
• Prepopulated configuration
• Supplied with 100A 4-pole main switch
• Type 2 surge protection device (SPD)
• Compact 295mm-high design for restricted spaces
• Fixed horizontal fork-type busbar
• Spacious internal layout for easier cable routing and termination
• Removable and raised DIN rail for improved wiring access
• Aligned earth and neutral bars for faster and tidier wiring
• Coin-slot door lock for secure and convenient access
• Top and bottom gland plates for flexible cable entry
• No knockouts for greater flexibility when glanding
• Reversible door can be fitted to either side
• Easily removable devices
• Robust 1.2mm steel enclosure
• Surface-mounted installation
• IP3X rated enclosure
• 16kA short-circuit rating

Technical Specifications

• Manufacturer: FuseBox
• Part Number: HTPNSPDT2
• Configuration: Prepopulated
• Main Switch Rating: 100A
• Main Switch: 4 Pole
• Surge Protection: Type 2 SPD
• Rated Voltage: 400V
• Frequency: 50Hz
• Short-Circuit Rating: 16kA
• Busbar Type: Fork
• IP Rating: IP3X
• Mounting Type: Surface
• Material: Steel
• Enclosure Thickness: 1.2mm
• Finish: RAL9001 powder coated
• Cable Entry Points: Top and bottom gland plates
• Dimensions (H x W x D): 295 x 348 x 113mm
• Standard: EN 61439-15
