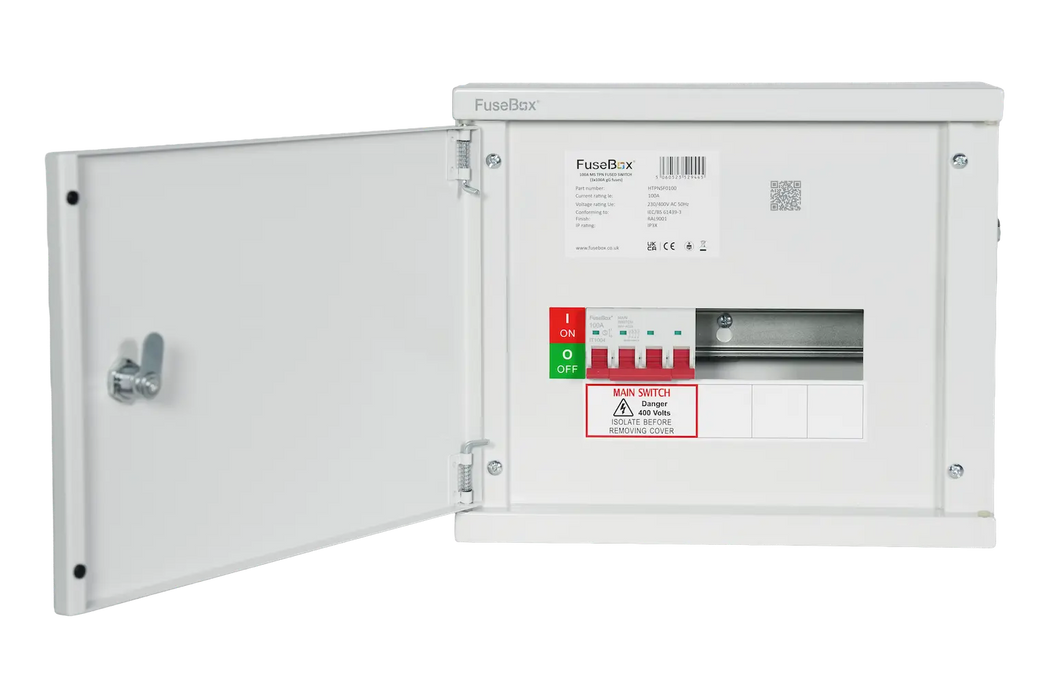

FuseBox HTPNSF0100 100A Horizontal TPN Fused Switch with 3 x 100A gG Fuses

Product Description

The FuseBox HTPNSF0100 100A Horizontal TPN Fused Switch provides a compact three-phase power distribution solution for installations where vertical wall space is limited. Designed around FuseBox's low-profile horizontal format, the enclosure measures just 295mm high, making it suitable for electrical cupboards, commercial utility areas, industrial environments and other space-restricted applications.

The unit is supplied prepopulated with 3 x 100A gG fuses and features a 100A main switch rating. Its contractor-friendly design provides a spacious internal layout for straightforward cable routing, wiring and termination, while the fixed horizontal busbar and accessible internal components help simplify installation and maintenance.

Manufactured from robust 1.2mm steel with a RAL9001 powder-coated finish, the HTPNSF0100 features top and bottom gland plates for flexible cable entry. A reversible door and coin-slot locking mechanism provide convenient access while allowing the enclosure to be configured to suit the installation.

Key Features

• 100A horizontal TPN fused switch
• Supplied prepopulated with 3 x 100A gG fuses
• Compact 295mm-high horizontal design for restricted spaces
• 100A main switch rating
• Fixed horizontal fork-type busbar
• Spacious internal layout for easier cable routing and termination
• Removable and raised DIN rail for improved wiring access
• Aligned earth and neutral bars for faster and tidier wiring
• Coin-slot door lock for secure and convenient access
• Top and bottom gland plates for flexible cable entry
• No knockouts for greater flexibility when glanding
• Reversible door can be fitted to either side
• Easily removable devices
• Robust 1.2mm steel enclosure
• Surface-mounted installation
• IP3X rated enclosure
• 16kA short-circuit rating

Technical Specifications

• Manufacturer: FuseBox
• Product Code: HTPNSF0100
• Technical Part Number: EHTPNSF0100
• Configuration: Prepopulated
• Fuses Supplied: 3 x 100A gG
• Main Switch Rating: 100A
• Rated Voltage: 400V
• Frequency: 50Hz
• Short-Circuit Rating: 16kA
• Busbar Type: Fork
• IP Rating: IP3X
• Mounting Type: Surface
• Material: Steel
• Enclosure Thickness: 1.2mm
• Finish: RAL9001 powder coated
• Cable Entry Points: Top and bottom gland plates
• Dimensions (H x W x D): 295 x 348 x 113mm
• Standard: EN 61439-16
