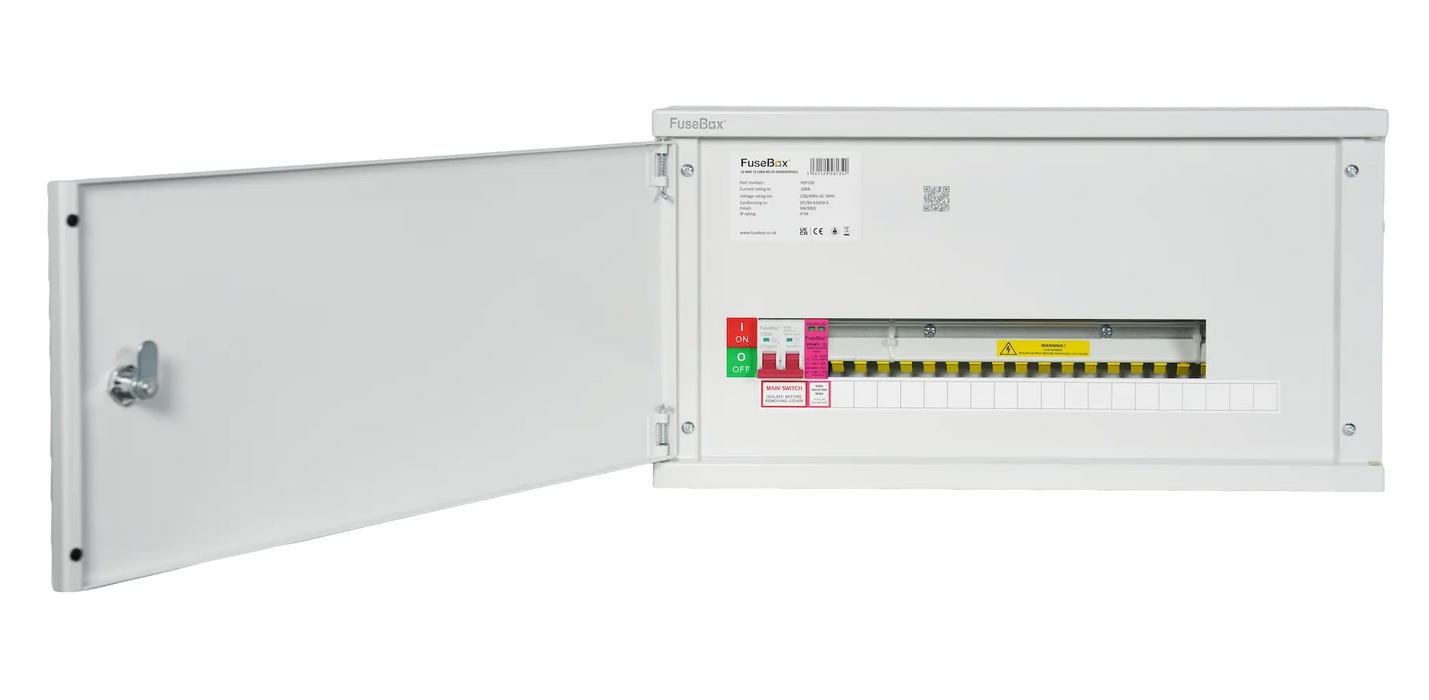

FuseBox HSP19Z 19 Way Horizontal SPN Distribution Board with 100A 2P Main Switch & Type 2 SPD

Product Description

The FuseBox HSP19Z 19 Way Horizontal SPN Distribution Board is a space-efficient single-phase power distribution solution designed for installations where available wall space is restricted. Its horizontal configuration makes it suitable for electrical cupboards, commercial utility areas and other locations where a conventional distribution board may be difficult to accommodate.

Providing 19 usable ways, the HSP19Z is supplied with a 100A 2-pole main switch and Type 2 surge protection device (SPD). The integrated SPD provides protection against transient overvoltages, while the spacious internal layout offers ample room for convenient cable routing, wiring and termination.

Designed with installers in mind, the HSP19Z features a fixed horizontal fork-type busbar, removable raised DIN rail and aligned earth and neutral bars for improved wiring access. The robust 1.2mm steel enclosure has a durable RAL9001 powder-coated finish, with top and bottom gland plates providing flexible cable entry.

Key Features

• 19-way horizontal SPN distribution board
• 19 usable ways
• Supplied with 100A 2-pole main switch
• Type 2 surge protection device (SPD)
• Horizontal design for space-restricted installations
• Fixed horizontal fork-type busbar
• Spacious internal layout for easier cable routing and termination
• Removable and raised DIN rail for improved wiring access
• Aligned earth and neutral bars for faster and tidier wiring
• Coin-slot door lock for secure and convenient access
• Top and bottom gland plates for flexible cable entry
• No knockouts for greater flexibility when glanding
• Reversible door can be fitted to either side
• Easily removable devices
• Robust 1.2mm steel enclosure
• Surface-mounted installation
• IP3X rated enclosure
• 16kA short-circuit rating

Technical Specifications

• Manufacturer: FuseBox
• Part Number: HSP19Z
• Distribution Type: SPN (Single Phase and Neutral)
• Usable Ways: 19
• Main Switch Rating: 100A
• Main Switch: 2 Pole
• Surge Protection: Type 2 SPD
• Rated Voltage: 400V
• Frequency: 50Hz
• Short-Circuit Rating: 16kA
• Busbar Type: Fork
• IP Rating: IP3X
• Mounting Type: Surface
• Material: Steel
• Enclosure Thickness: 1.2mm
• Finish: RAL9001 powder coated
• Cable Entry Points: Top and bottom gland plates
• Dimensions (H x W x D): 550 x 295 x 113mm
• Standard: EN 61439-9
