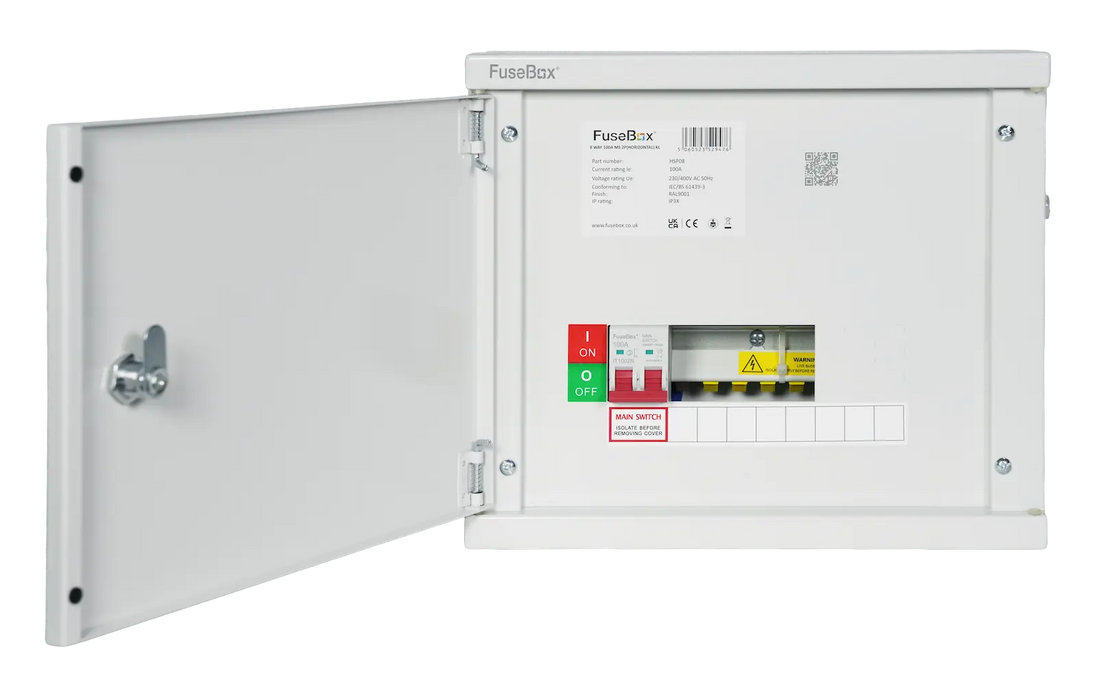

FuseBox HSP08 8 Way Horizontal SPN Distribution Board with 100A 2P Main Switch

Product Description

The FuseBox HSP08 8 Way Horizontal SPN Distribution Board is a compact single-phase power distribution solution designed for installations where available wall space is restricted. Its horizontal configuration makes it ideal for electrical cupboards, commercial utility areas and other space-limited locations where fitting a conventional distribution board may be difficult.

Providing 8 usable ways, the HSP08 is supplied with a 100A 2-pole main switch and features a fixed horizontal fork-type busbar. Its spacious internal layout provides ample room for cable routing, wiring and termination, helping installers achieve a neat and efficient installation.

The removable raised DIN rail improves wiring access, while aligned earth and neutral bars help simplify connections. Manufactured from robust 1.2mm steel with a durable RAL9001 powder-coated finish, the enclosure also features top and bottom gland plates, a reversible door and a convenient coin-slot door lock.

Key Features

• 8-way horizontal SPN distribution board
• 8 usable ways
• Supplied with 100A 2-pole main switch
• Horizontal design for space-restricted installations
• Fixed horizontal fork-type busbar
• Spacious internal layout for easier cable routing and termination
• Removable and raised DIN rail for improved wiring access
• Aligned earth and neutral bars for faster and tidier wiring
• Coin-slot door lock for secure and convenient access
• Top and bottom gland plates for flexible cable entry
• No knockouts for greater flexibility when glanding
• Reversible door can be fitted to either side
• Easily removable devices
• Robust 1.2mm steel enclosure
• Surface-mounted installation
• IP3X rated enclosure
• 16kA short-circuit rating

Technical Specifications

• Manufacturer: FuseBox
• Part Number: HSP08
• Distribution Type: SPN (Single Phase and Neutral)
• Usable Ways: 8
• Main Switch Rating: 100A
• Main Switch: 2 Pole
• Rated Voltage: 400V
• Frequency: 50Hz
• Short-Circuit Rating: 16kA
• Busbar Type: Fork
• IP Rating: IP3X
• Mounting Type: Surface
• Material: Steel
• Enclosure Thickness: 1.2mm
• Finish: RAL9001 powder coated
• Cable Entry Points: Top and bottom gland plates
• Dimensions (H x W x D): 348 x 295 x 113mm
• Standard: EN 61439-3
