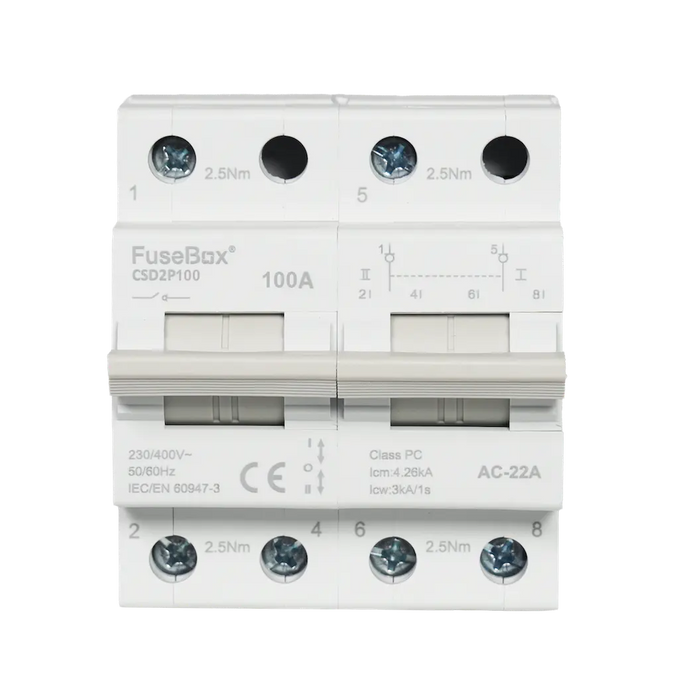

FuseBox CSD2P100 100A 2-Pole 4 Module DIN Rail Changeover Switch
Product Description
The FuseBox CSD2P100 is a robust and reliable 100A 2-pole manual changeover switch designed to provide safe and convenient switching between two electrical power supplies. Ideal for mains and backup generator applications, this DIN rail mounted changeover switch offers an efficient solution for managing alternative power sources in residential, commercial and industrial electrical installations.
Featuring a compact 4-module design, the CSD2P100 helps maximise available space within compatible electrical distribution enclosures. Its manually operated switching mechanism allows users to select between power sources, while clearly marked switch positions provide easy visual identification and straightforward operation.
With a rated current of 100A and an operating voltage of 230V/400V, this FuseBox changeover switch is suitable for installations requiring higher current capacity. Manufactured in accordance with BS EN 60947-3, it features an IP20 protection rating and a short-time withstand current rating of 3kA for 1 second, delivering dependable performance in suitable electrical distribution systems.
Key Features
- 100A 2-pole manual changeover switch for selecting between two electrical power supplies.
- Compact 4-module design helps optimise space within electrical distribution enclosures.
- DIN rail mounting for convenient installation in compatible electrical panels and distribution boards.
- Manual switching mechanism provides direct control over the selected power source.
- Clearly marked switch positions allow easy identification of the operating state.
- Suitable for mains and backup generator changeover applications.
- 100A rated current capacity for higher-load electrical installations.
- Rated voltage of 230V/400V with a frequency of 50/60Hz.
- IP20 protection rating for use within suitable electrical enclosures.
- Short-time withstand current rating of 3kA for 1 second.
- Manufactured to comply with BS EN 60947-3.
Technical Specifications
-
Brand: FuseBox
-
Product Code: CSD2P100
-
Product Type: Manual Changeover Switch
-
Number of Poles: 2 Pole
-
Number of Modules: 4
-
Rated Current: 100A
-
Rated Voltage: 230V/400V
-
Frequency: 50/60Hz
-
Mounting Type: DIN Rail
-
IP Rating: IP20
-
Short-Time Withstand Current: 3kA / 1 Second
-
Operating Temperature: -5°C to +40°C
-
Dimensions (H x W x D): 82.5 x 71.6 x 75mm
-
Compliance Standard: BS EN 60947-3
Applications
The FuseBox CSD2P100 100A changeover switch is designed for electrical installations requiring manual selection between alternative power sources. Typical applications include mains-to-generator changeover systems, backup power arrangements and compatible residential, commercial or industrial distribution systems where reliable power source selection is essential.
