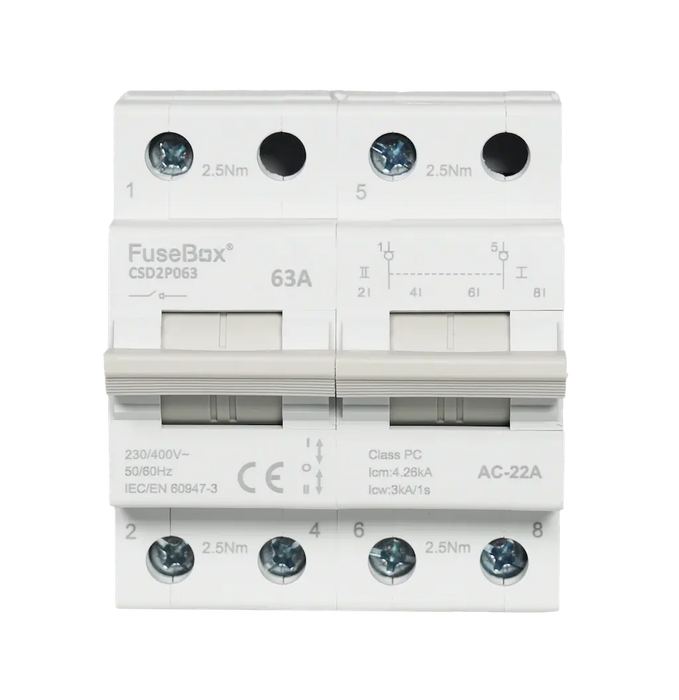

FuseBox CSD2P063 63A 2-Pole 4 Module DIN Rail Changeover Switch

Product Description

The FuseBox CSD2P063 is a compact and reliable 63A 2-pole manual changeover switch designed for safe and convenient switching between two electrical power supplies. Ideal for mains and backup generator applications, this DIN rail mounted changeover switch provides a practical solution for managing alternative power sources in residential and commercial electrical installations.

Featuring a space-saving 4-module design, the CSD2P063 integrates easily into compatible electrical distribution enclosures. Its manual switching mechanism allows users to select the required power source, while clearly marked switch positions provide straightforward operation and visual identification of the selected state.

Manufactured to comply with BS EN 60947-3, this FuseBox 63A changeover switch offers dependable performance with a rated voltage of 230V/400V, an IP20 protection rating and a short-time withstand current rating of 3kA for 1 second.

Key Features

• 63A 2-pole manual changeover switch for selecting between two electrical power supplies.
• Compact 4-module design helps maximise available space within distribution enclosures.
• DIN rail mounting for straightforward installation in compatible electrical panels.
• Manual switching mechanism provides convenient control over the selected power source.
• Clearly indicated switch positions for easy identification and operation.
• Suitable for mains and backup generator changeover applications.
• Rated for 230V/400V electrical systems operating at 50/60Hz.
• IP20 protection rating for installation within suitable electrical enclosures.
• Manufactured in accordance with BS EN 60947-3.

Technical Specifications

• Brand: FuseBox
• Product Code: CSD2P063
• Product Type: Manual Changeover Switch
• Number of Poles: 2 Pole
• Number of Modules: 4
• Rated Current: 63A
• Rated Voltage: 230V/400V
• Frequency: 50/60Hz
• Mounting Type: DIN Rail
• IP Rating: IP20
• Short-Time Withstand Current: 3kA / 1 Second
• Operating Temperature: -5°C to +40°C
• Dimensions (H x W x D): 82.5 x 71.6 x 75mm
• Compliance Standard: BS EN 60947-3

Applications

The FuseBox CSD2P063 63A changeover switch is suitable for electrical installations requiring manual selection between alternative power supplies, including mains-to-generator changeover systems, backup power arrangements and compatible residential or commercial distribution systems.
